C.3 Choosing a Location

Installation Clearances

Improper installation of the Air Condtioner can cause poor

performance and premature wear of the unit.

Ensure that the PTAC unit is installed with proper clearances as

shown if ﬁgure C.3. The distance between the air conditioner 1 foot

and the around obstacles should meet the requirement as below:

over 3.5 feet (upper side), over 2 inches (left side), over 2 inches

(right side), over 3 feet (front side) and over 3 feet (rear side).

Ensure plug is accessible and no obstructions or enclosures are

within clearances limits to allow for proper airﬂow.

Ensure no open ﬂames, or surfaces that will exceed 1000 degrees

farenheit are within 5 feet of the unit.

Observe all warnings in this manual when choosing a location for

your air conditoner.

WARNING

Refigeration System

Under High Pressure

Do not puncture, heat, expose to flame or

incinerate.

Only certified refrigeration technicians should

service this equipment.

R32 systems operate at higher

pressures than R22 equipment.

Appropriate safe service and handling

practices must be used.

Only use gauge sets designed for use with

R32.

Do not use standard R22 gauge sets..

WARNING

Fire Hazard

A2L refrigerant is classified as mildly

flammable. Do not install unit next to open

flame sources, or surfaces that will exceed

1000 degrees farenheit.

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the

same configuration as your air conditioner’s

plug. If different, consult a Licensed Electrician.

Do not use plug adapters.

Do not use an extension cord.

Do not remove ground prong.

Always plug into a grounded 3 prong oulet.

Failure to follow these instructions can result in

death, fire, or electrical shock.

WARNING

Do not use means to accelerate the defrosting

process or to clean, other than those

recommended by the manufacturer.

The appliance shall be stored in a room without

continuosly operating ignition sources.

(for example; open flames, an operating gas

appliance, or an operating electric heater).

Do Not Pierce or Burn

Be aware that refrigerants may not contain

an odor

Front View

Ceiling

over 3.5 ft.

WALL

Top View

over

2 in.

over 3 ft.

over

2 in.

Outside wall

WALL

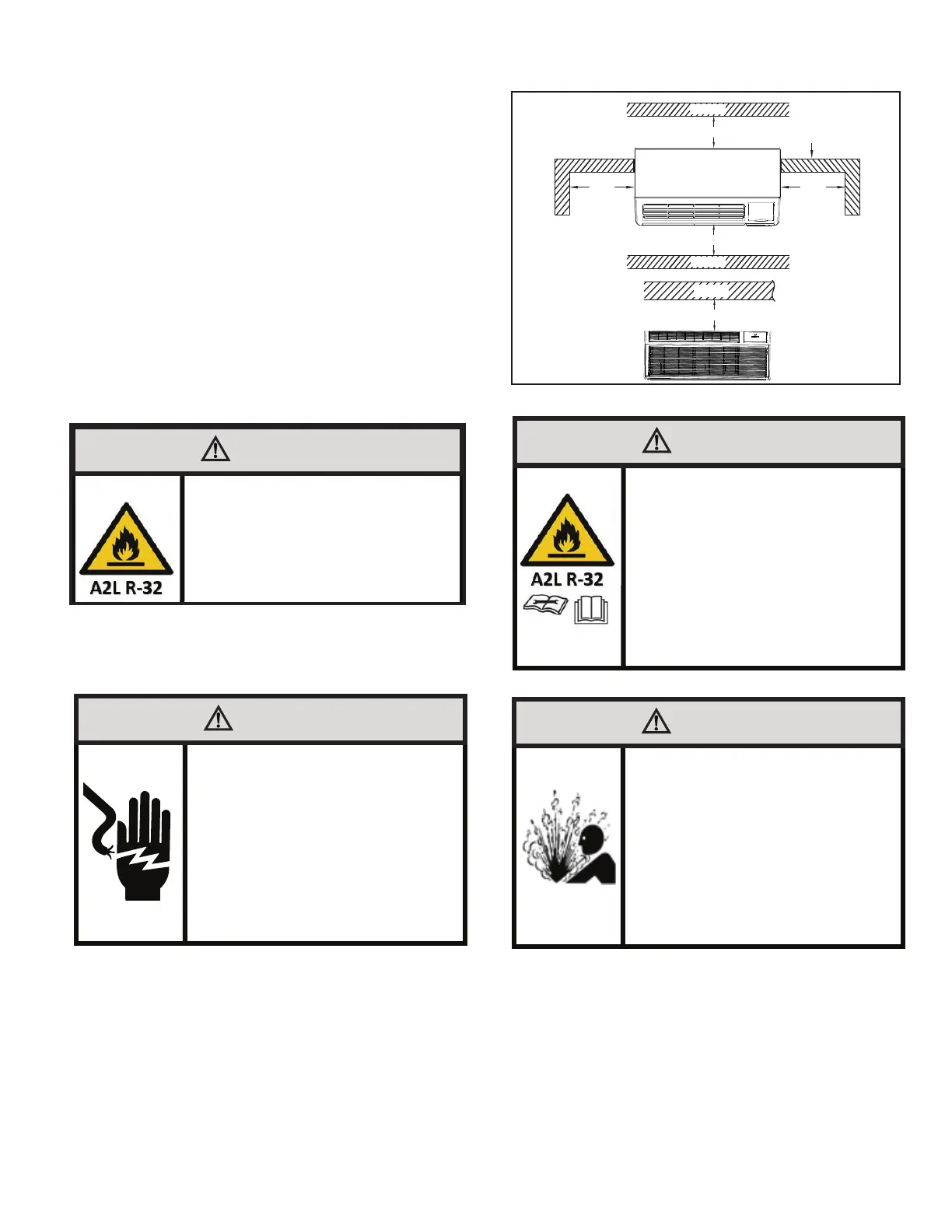

Figure C.3.1 (Clearance Limits)

C. INSTALLATION OF THE UNIT
