C. INSTALLATION OF THE UNIT

C.4.4 Standard Grille Instructions

1. Remove the center support and weatherboard if still installed

in the sleeve.

2. Insert six plastic grommets into the grille openings from the

outside of the grille as shown in Figure C.4.4.

3. Insert two #8 x

3/8”

sheet metal screws (provided) in the top

two outside edge plastic grommets, and tighten them half way

into the grommets.

4. Grasp the grille by the attached plastic handles. Position

it with the condensate drain knockouts facing down.

From inside the building, maneuver the grille through the wall

sleeve and pull toward you until the screw heads are inserted

into the keyhole slots at the top of the wall sleeve. Tighten the

two screws completely.

5. Insert the remaining screws into the remaining holes and tighten

securely.

WARNING

Falling Object Hazard

Not following Installation Instructions for

mounting your air conditioner can result

in property damage, injury, or death.

$//6/((9(

:($7+(5%2$5'

&(17(56833257

67$1'$5'*5,//(

3/$67,&+$1'/(6

3/$67,&*5200(76

:$//

6/((9(

67$1'$5'

*5,//(

[´

6+((70(7$/

6&5(:

'HVFULSWLRQ

6WDPSHG $OXPLQXP*ULOOH

3ODVWLF*URPPHWV

[Ǫ6KHHW0HWDO6FUHZV

4XDQWLW\





3;*$6WDQGDUG*ULOOH

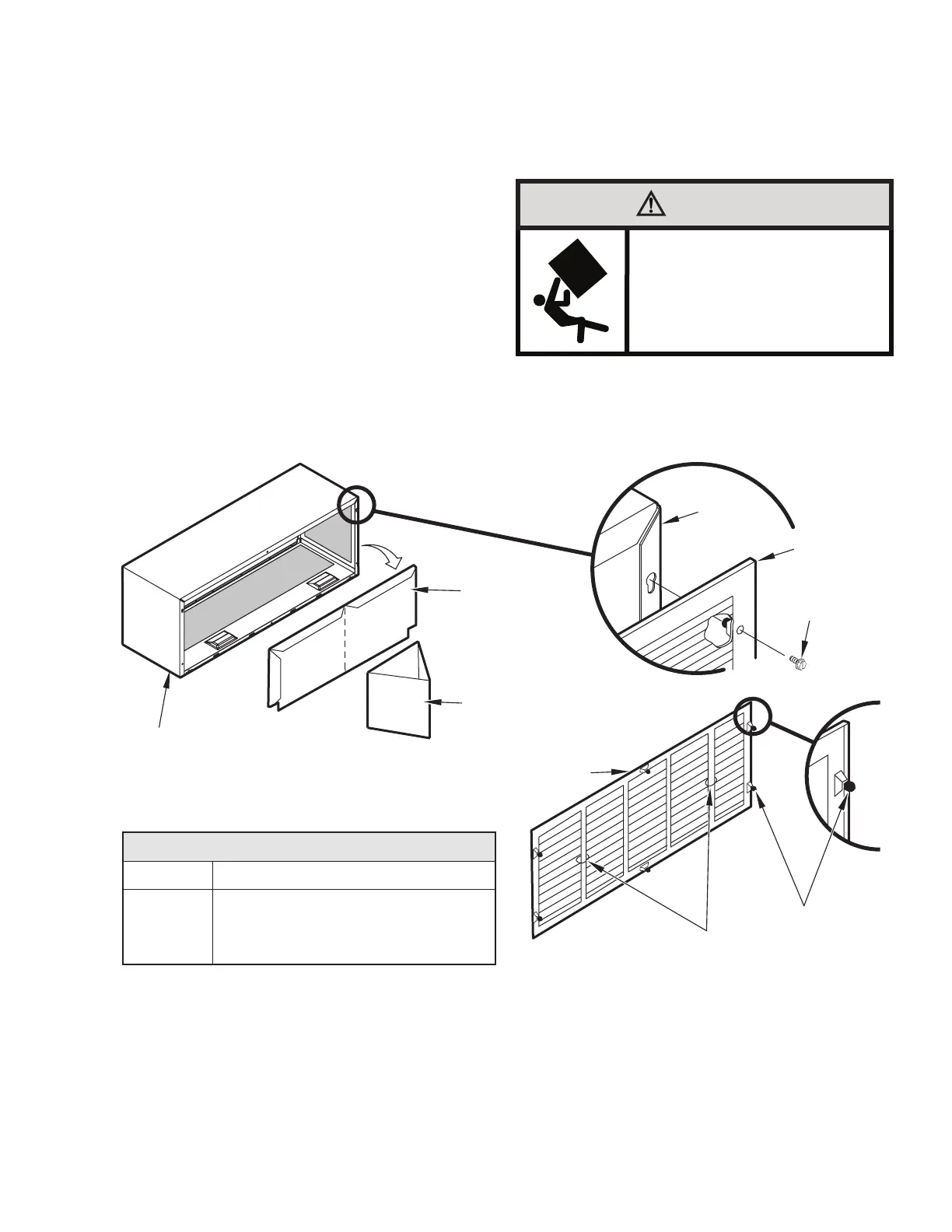

Figure C.4.4 Standard Grille Instructions
