C. INSTALLATION OF THE UNIT

C.4.3 Wall Sleeve Installation Instructions (PDXWS)

1. Drill two 3/16” holes through each side of the sleeve approximate-

ly 4” from top and 4” from bottom of sleeve. Screw four #10 x 1”

screws (included) or appropriate fasteners for your installation,

through the holes in the sides of the wall sleeve.

2. Apply sealant around the wall sleeve where it projects through

the inside and outside wall surfaces. Apply the sealant to the

screw heads or the tops of the fasteners used in Step #5.

3. If the chassis and exterior grille are to be installed later, leave

the weatherboard and center support in place, otherwise remove

and dispose of them. (See Figure C.4.4).

4. Provide a support lintel if the wall sleeve is installed in a concrete

or masonry wall (See Figure C.4.3.8).

NOTE: Construct wall opening to comply with all applicable building codes.

MAIN STUDS

JACK STUDS

LINTEL

MOUNTING

SCREW HOLES

NO HOLES IN BOTTOM OF WALL

SLEEVE UNLESS DRAIN KIT IS USED

MAIN STUDS

JACK STUDS

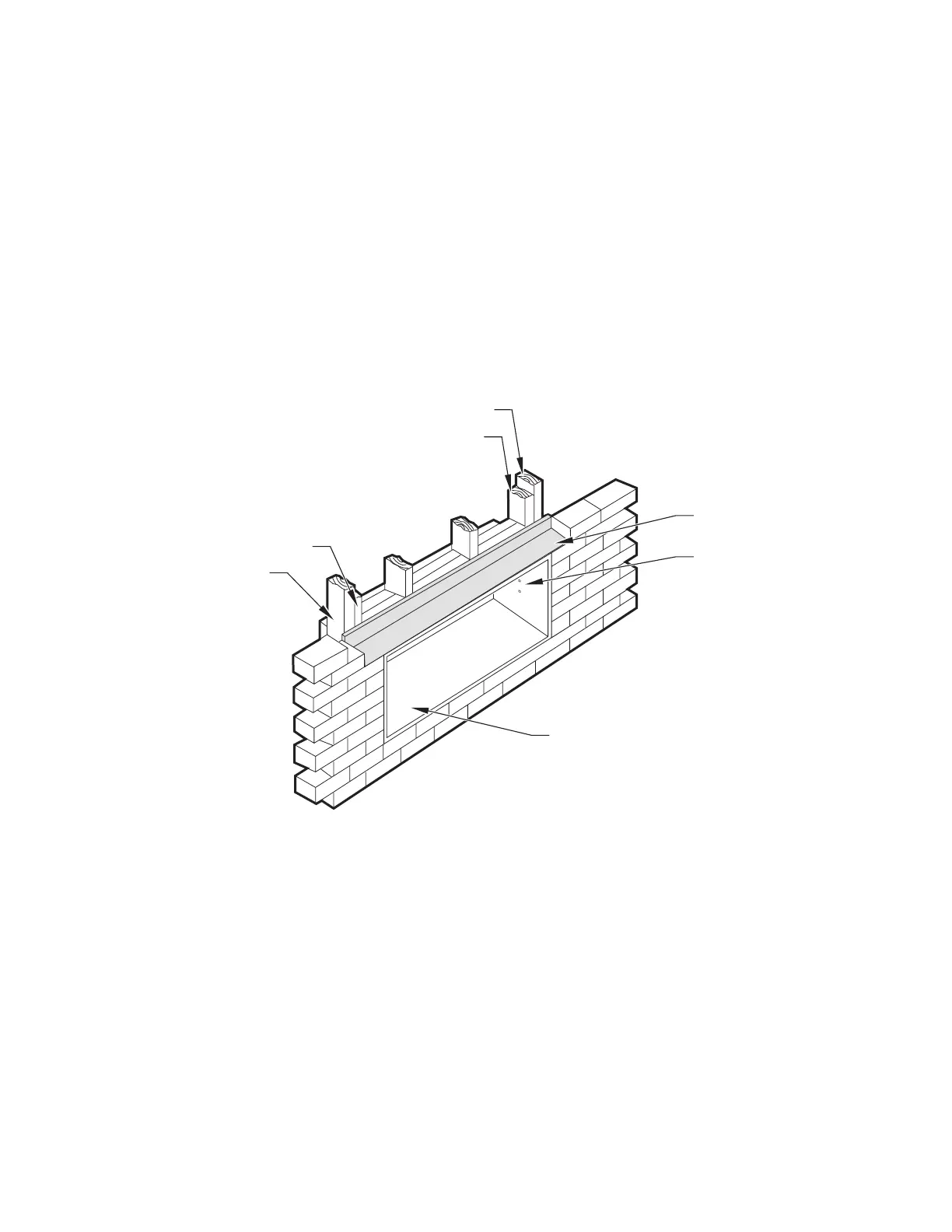

Figure C.4.3.8 Lintel Installation
