C. INSTALLATION OF THE UNIT

C.5 Chassis Install

C.5.1 Chassis Install Preperation

NOTE: Check to be sure the wall sleeve, extension (if used),

grille, and drain kit are installed properly before chassis

installation.

1. Remove the weatherboard and center support from the sleeve

(if still in place). Be sure an outdoor grille is attached.

NOTE: Use a wall sleeve adapter kit (PXSE) if installing a P-Series

chassis in a T-Series sleeve.

2. If the control door is not installed, follow these steps:

a. From the front cover, slide the right control door pin into

the hole on the right side of the front cover.

b. Slide the left door pin into the hole on the left side of the

front cover opening.

c. Snap cover into place.

NOTE: To avoid breaking the door or hinge pins, do not apply

excessive force when installing.

IMPORTANT: When installing a Friedrich PTAC into an existing sleeve,

it is important to ensure that the unit is installed completely. Inspection

of the air seal between the condenser air bafﬂes and around the indoor

mounting ﬂange is recommended.

In some cases additional gaskets or bafﬂing may be required.

WALL

SLEEVE

WEATHERBOARD

CENTER SUPPORT

INSERT PIN

IN THIS LOCATION

CONTROL

DOOR

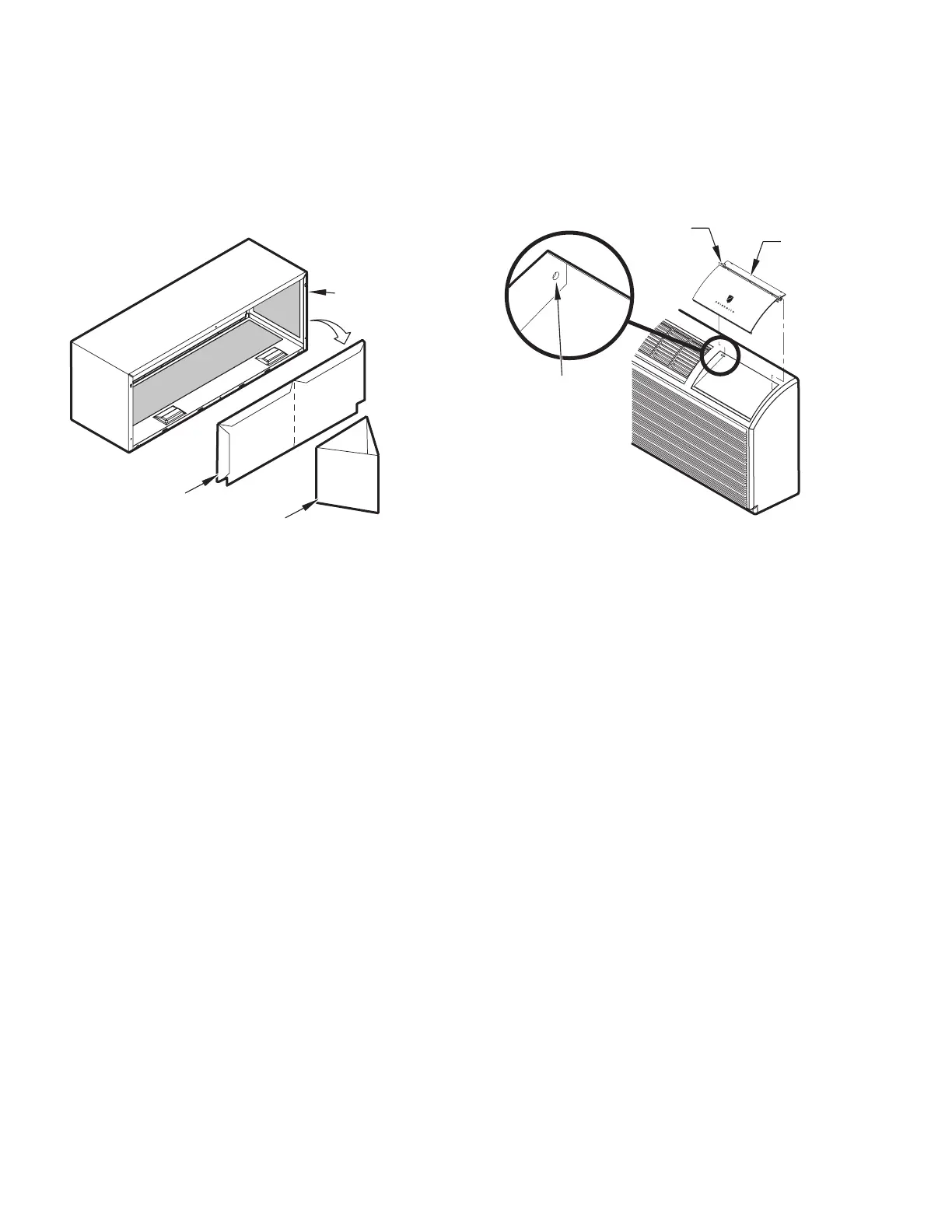

Figure C.5.1.1 Figure C.5.1.2
