REMOVE AND INSTALL THE CHASSIS

Wallmaster

Remove Chassis

1. Unplug the unit..

2. Remove the front grill. See Routine Maintenance Figure 403.

3. Remove the clamped drain hose from the nipple if installed.

4. Hold the cabinet stationary then use the hand grips on both ends of

the decorative front assembly to pull the chassis out of the cabinet .

Note: If Ground wire is screwed into the Sleeve, disconnect before

attempting to pull unit all the way out..

Reinstall Chassis

1. Check the sleeve to be certain it has been correctly installed in the wall.

Remove the front panel on the WSE SLEEVE. Remove the rear WEATHER

PANEL. Reverse grille. Place lower edge into sleeve tab (Friedrich logo

facing out). Align slots with the screw holes. Secure grille with screws.

A. Check the anchor screw. There should be four (4) in the WSE

SLEEVE (two in each side).

B. Determine if the sleeve has a downward slope of 3/8 bubble to

the outside..

C. Check to be sure the sleeve has been sealed around all edges

with an industrial type caulking on both the outside and inside to

prevent rain entry.

2. Check the electrical receptacle to see that it conforms to the requirements

for the chassis model to be installed. See ﬁgure 207 for the receptacle

requirements.

3. Remove the chassis from the shipping carton.

4. Remove the FRONT PANEL. Using the handles, pull panel out until it is

released from the two retaining snaps. Place the cover aside carefully.

5. Lift the chassis by the basepan and slide it into the front of the sleeve.

(Obtain assistance as needed.)

6. Turn the unit at an angle to allow clearance to secure the grounding wire

which has a red tag on it. Drive a grounding screw through the lug

on the grounding wire, through the wall sleeve, and into the wall

frame.

7. Push the chassis all the way into the sleeve, using the plastic front handles,

so that the front panel meets the front edge of the shell.

NOTE: Chassis comes with pre-installed seal gasket.

8. Check that ﬁlter is properly installed, and reinstall front panel.

WARNING

ELECTRIC SHOCK HAZARD

Disconnect power to the unit before

servicing. Failure to follow this warning

could result in serious injury or death.

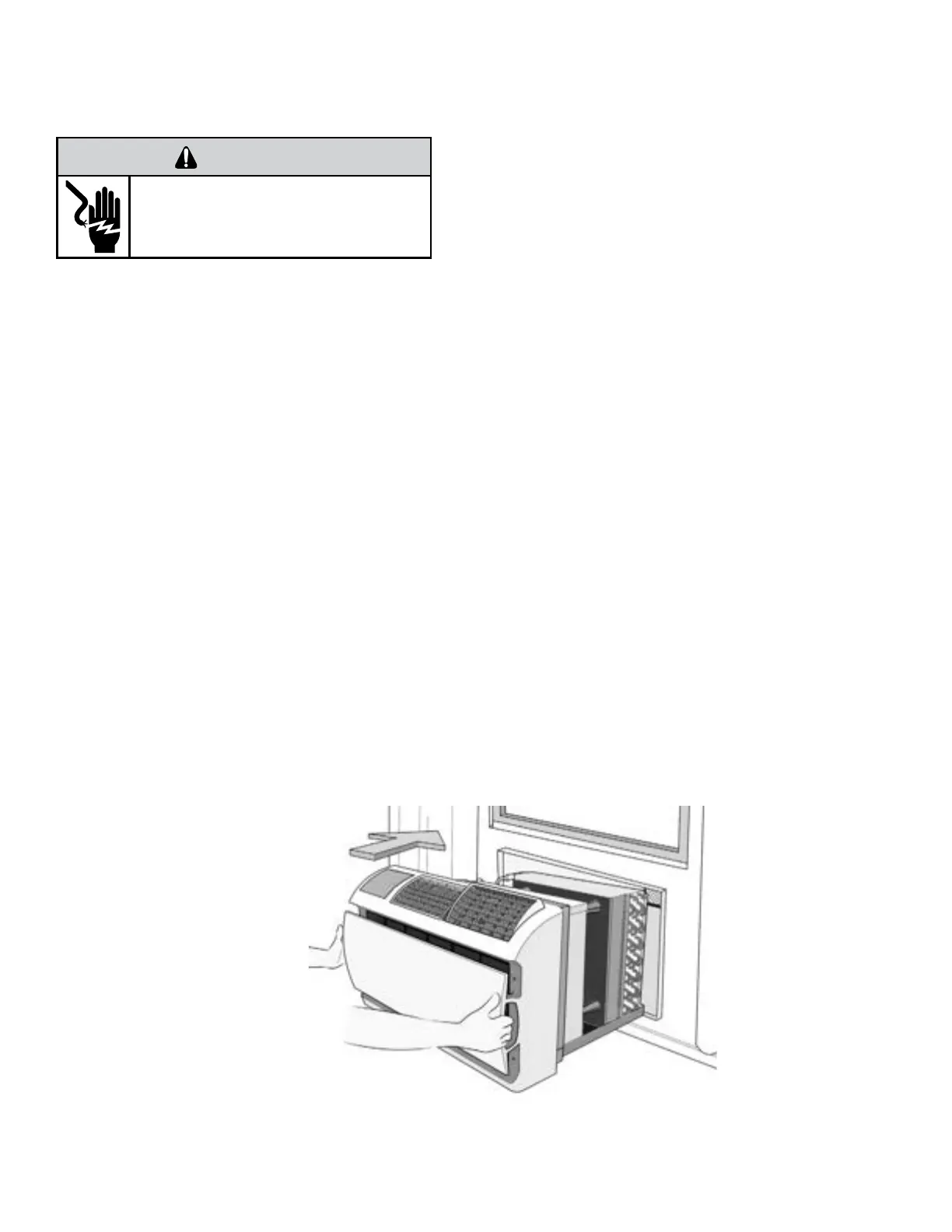

Figure 428 (Remove and Install the Chassis)
