DISASSEMBLY
Kuhl-Open Electrical Box (To access Power Cord and Fixed Orifice)
1. Remove the front cover.
2. Remove the chassis from the sleeve.
3. Remove 4 screws holding PCB assy to brackets. Slide PCB assy back to ac-
cess electrical box cover screws. See figure 501.

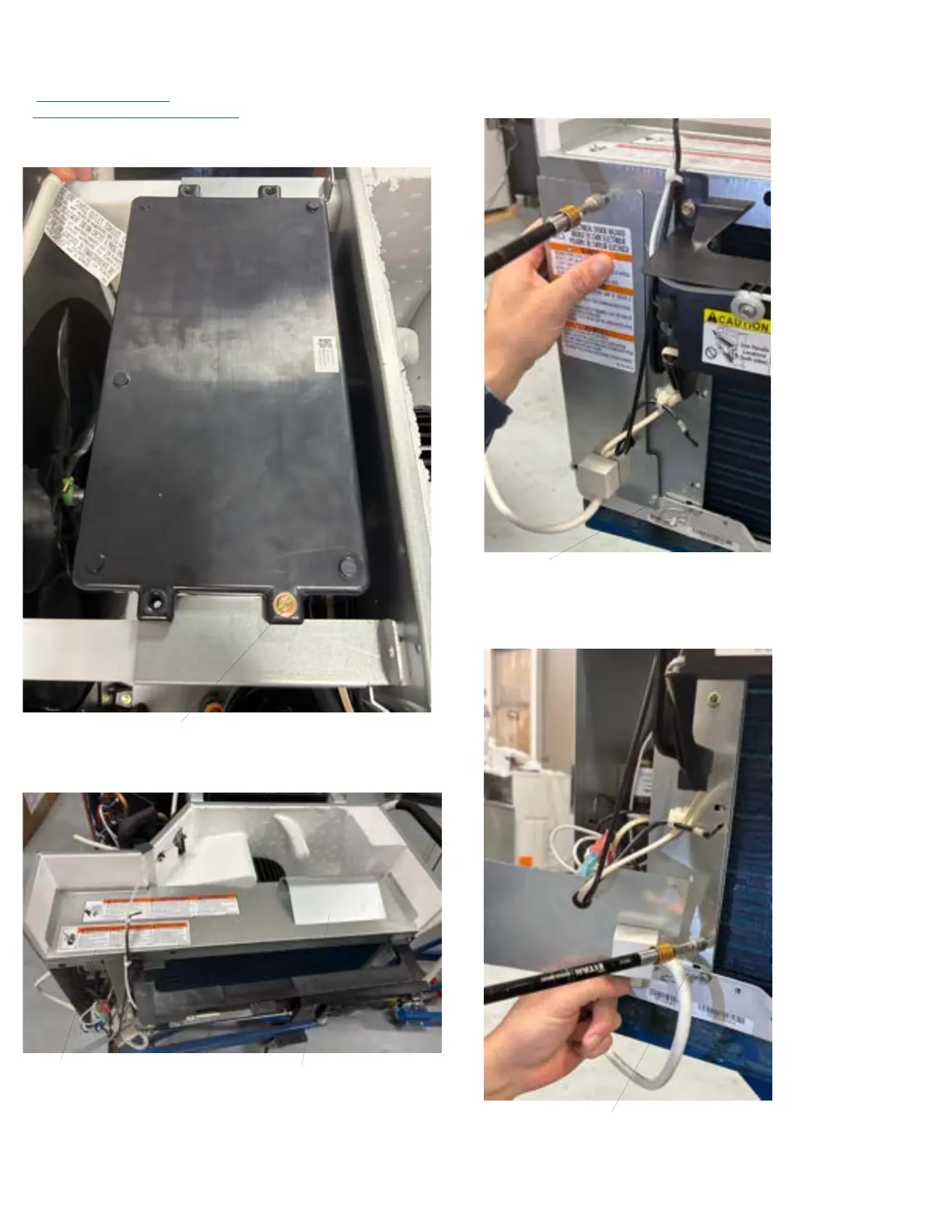

Remove top screws (4 places)
Figure 501
4. Remove Air Foil and top cover. See Figure 502.
Top Cover
Airfoil
Figure 502
4. Remove electrical box cover (3 screws). See figure 503.
Remove Screws (3 Places)
Figure 503
5. Remove 3 screws holding box to evaporator coil. See figure 504
Evaporator screws (3 places)
Figure 504
6. Snip the zip ties holding the hp switch wiring and the indoor coil sensor.
7. Remove indoor coil sensor from evaporator.
8. When reinstalling be sure grommet is correct.
