REMOVE AND INSTALL THE CHASSIS

Install The Chassis -Kuhl

CAUTION

Use Handle

Locations

(both sides)

Do not push, pull,

or lift from

center of support

1. Carefully team lift the chassis and set it into the cabinet.

2. Slide the chassis stopping approximately 3” from full insertion.

3. Insert the chassis seal gasket (See Figure 425) one inch deep between the chassis and the cabinet A paint stir stick or ruler might be helpful here.

Begin inserting the gasket at either bottom corner and go up the side, across the top, and down the opposite side. Then push the chassis all the way

into the cabinet.

NOTE: If the chassis seal gasket is not installed or installed improperly,the operation of the unit will be negatively affected. Operational noise and

outside noise will also amplied.

4. Slide the chassis in the remaining three (3) inches.

5. Reattach the EntryGard™ chassis and EntryGard™ retainer wire..

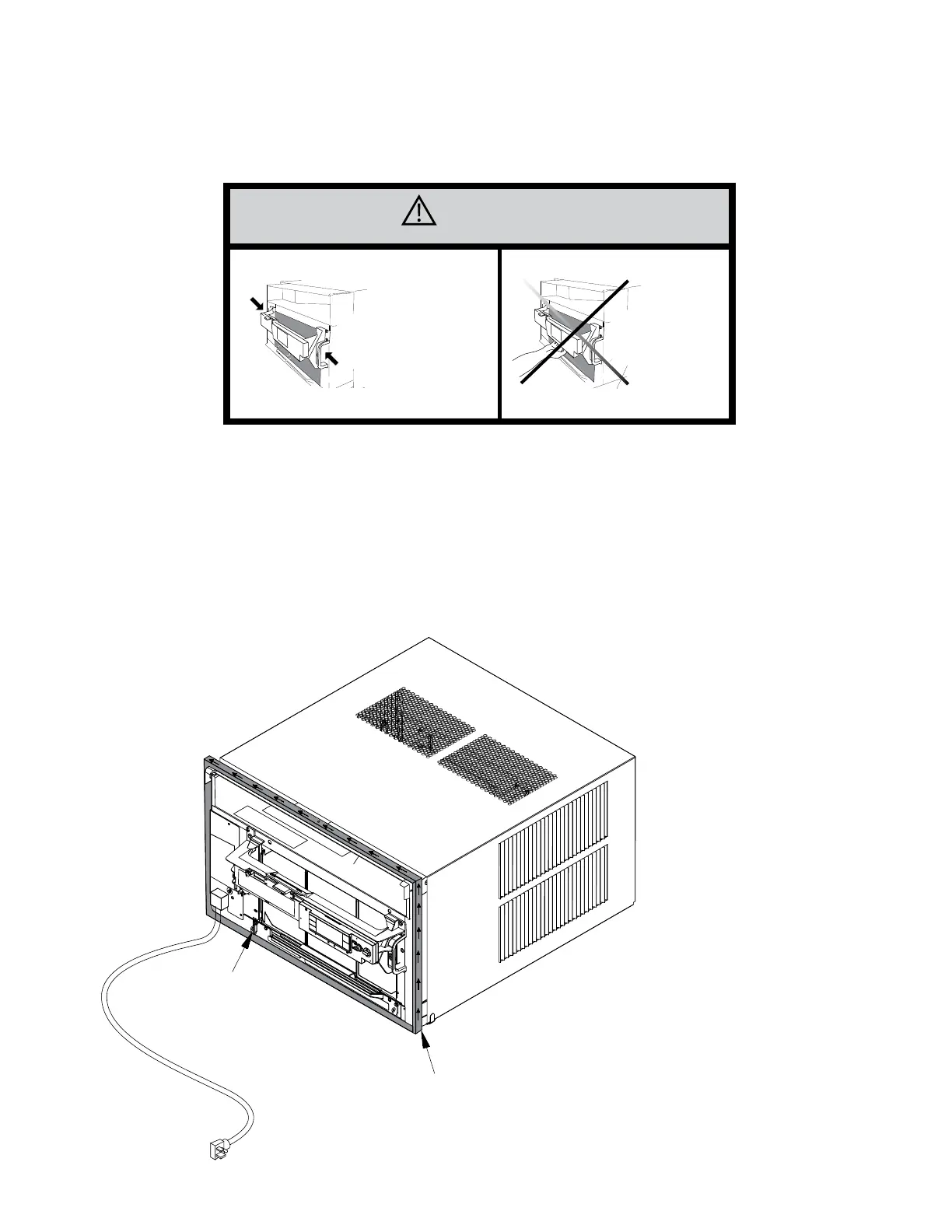

Figure 425 (Chassis Installation)

POWER CORD CLIP

NOTE: WHEN INSTALLING THE CHASSIS

GASKET, BEGIN AT EITHER BOTTOM

CORNER AND GO UP THE SIDE & ACROSS

THE TOP & DOWN THE OPPOSITE SIDE

CHASSIS SEAL GASKET
