REMOVE AND INSTALL THE CHASSIS

Remove The Chassis - Kuhl

CAUTION

Use Handle

Locations

(both sides)

Do not push, pull,

or lift from

center of support

1. Remove the decorative front cover. See Routine

Maintenance Figure 401.

2. Remove the chassis Entrygard Retainer Wire by removing

the screw at the front right bottom corner. Save this screw

for reattachment after reinstalling the chassis. See Figure

423.

3. Hold the cabinet stationary then use the hand grips on both

ends of the control unit support bracket to pull the chassis out

of the cabinet . See gure 424.

WARNING

ELECTRIC SHOCK HAZARD

Disconnect power to the unit before

servicing. Failure to follow this warning

could result in serious injury or death.

Support Bracket

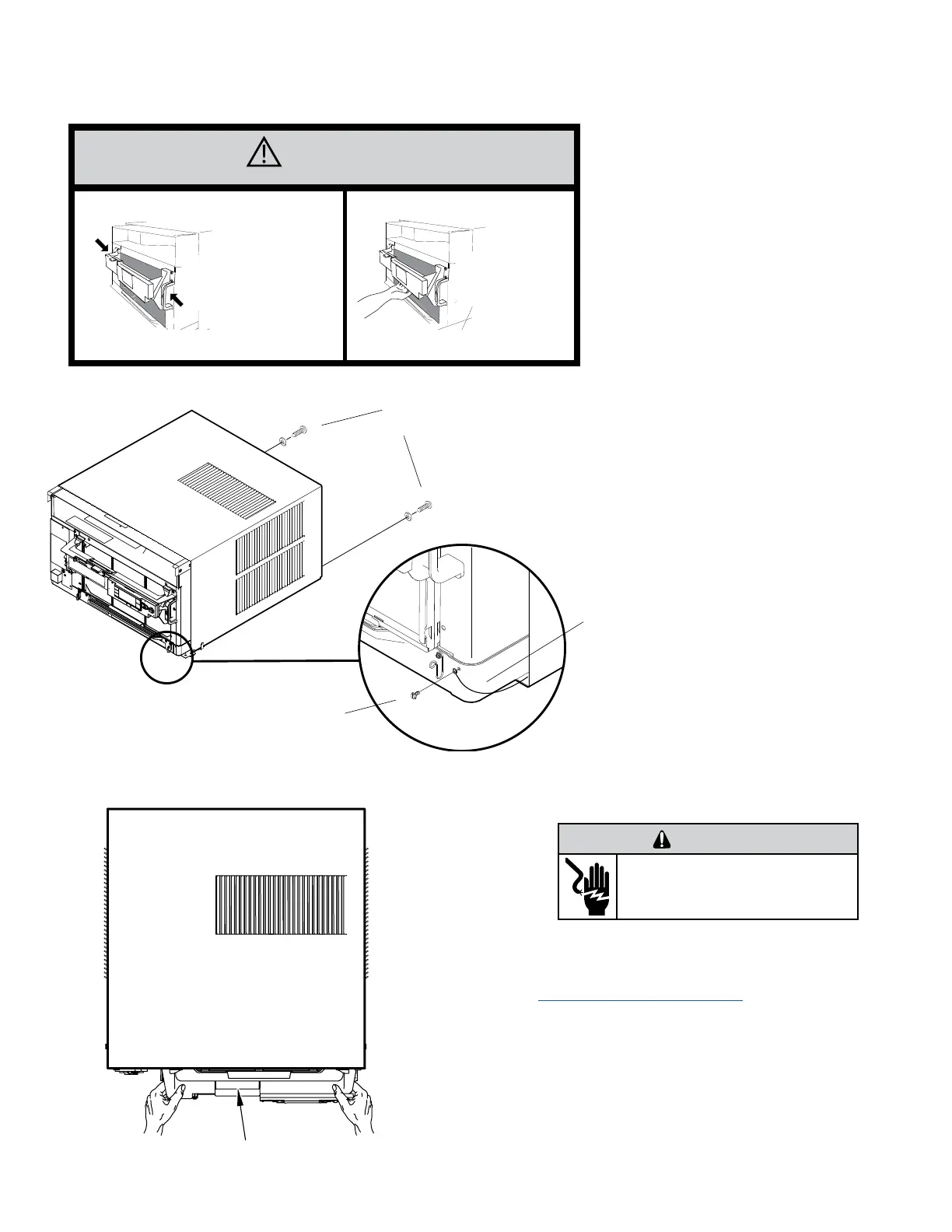

Figure 423 (Chassis Removal and Installation)

Figure 424 (Support Bracket)

RETAINER SCREWS

AND WASHERS

FAR RIGHT

SCREW

ENTRYGARD

RETAINER

WIRE
