Handleiding

20

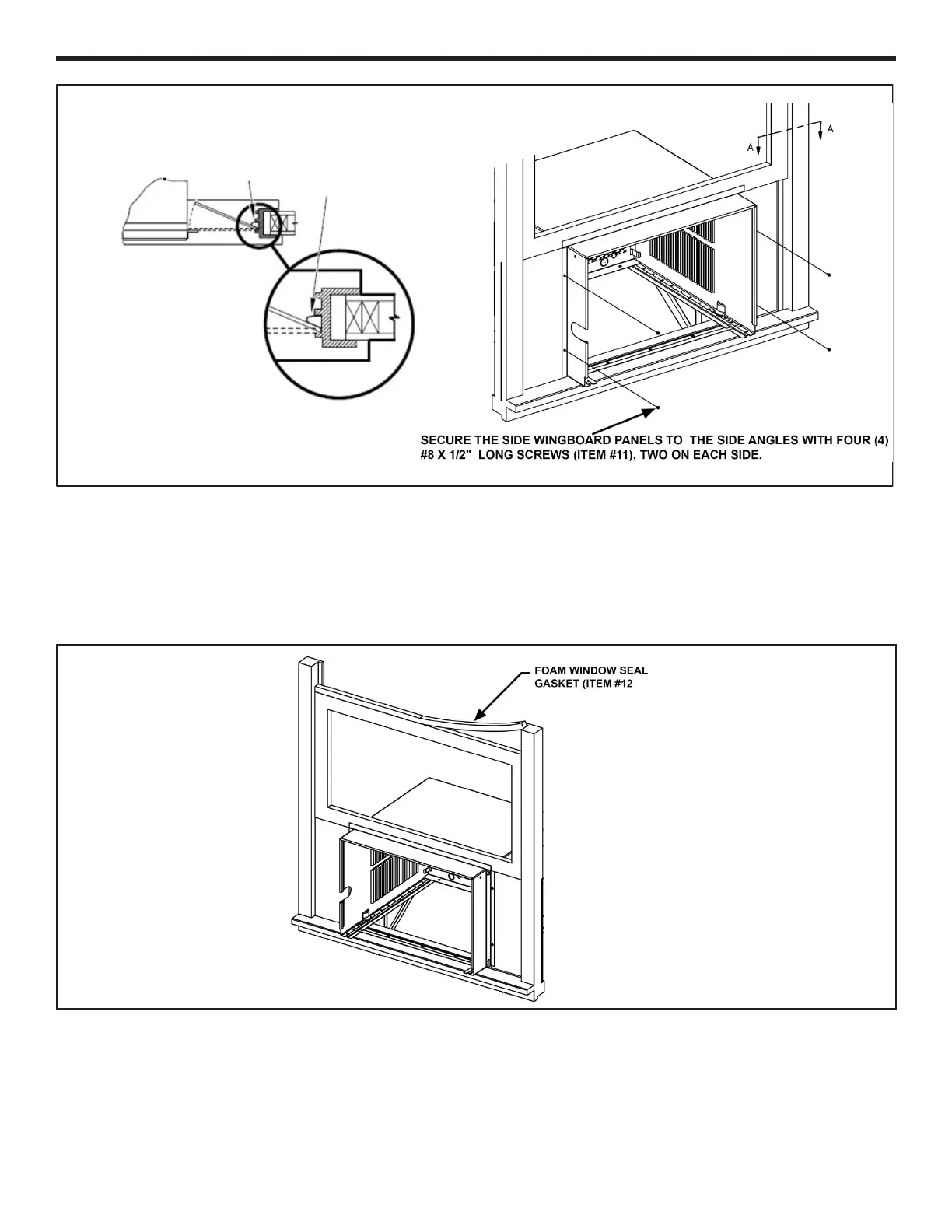

Figure 25

SECTION A -A

TOP OF CABINET

WINDOW JAM

CLIP (ITEM10)

PLACE WINGBOARD PANEL IN

WINDOW JAM TO COMPRESS

THE

SPRINGS INSIDE THE

RUNNERS,

AND SWING THE PANEL INTO

PLACE

INDICATED BY THE DOTTED LINE.

STEP 6 INSTALL SIDE WINGBOARD PANELS: Be sure that the cabinet has been secured to the window sill and the outside support

brackets have been installed as shown in (Figures 19 and 20) on Page 17. Raise the window sash and install the right and left

side wingboard panels (See Figure 25).

STEP 7 INSTALL WINDOW SEALING GASKETS: Measure and cut the dark foam window seal gasket (Item#12) and install it between

the upper glass panel and the top part of the lower sash (Figure 26).

Figure 26

NOTE FOR REASONS OF SECURITY , THE CUSTOMER MUST PROVIDE A MEANS OF PREVENTING THE WINDOW FROM OPENING.

STEP 8 When possible, caulk the outside of the installation with industrial type caulking to prevent air and water leaks.

STEP 9 Skip to chassis wiring and preparation on page 21 for Non ATEX or page 23 for ATEX and IECEx.
