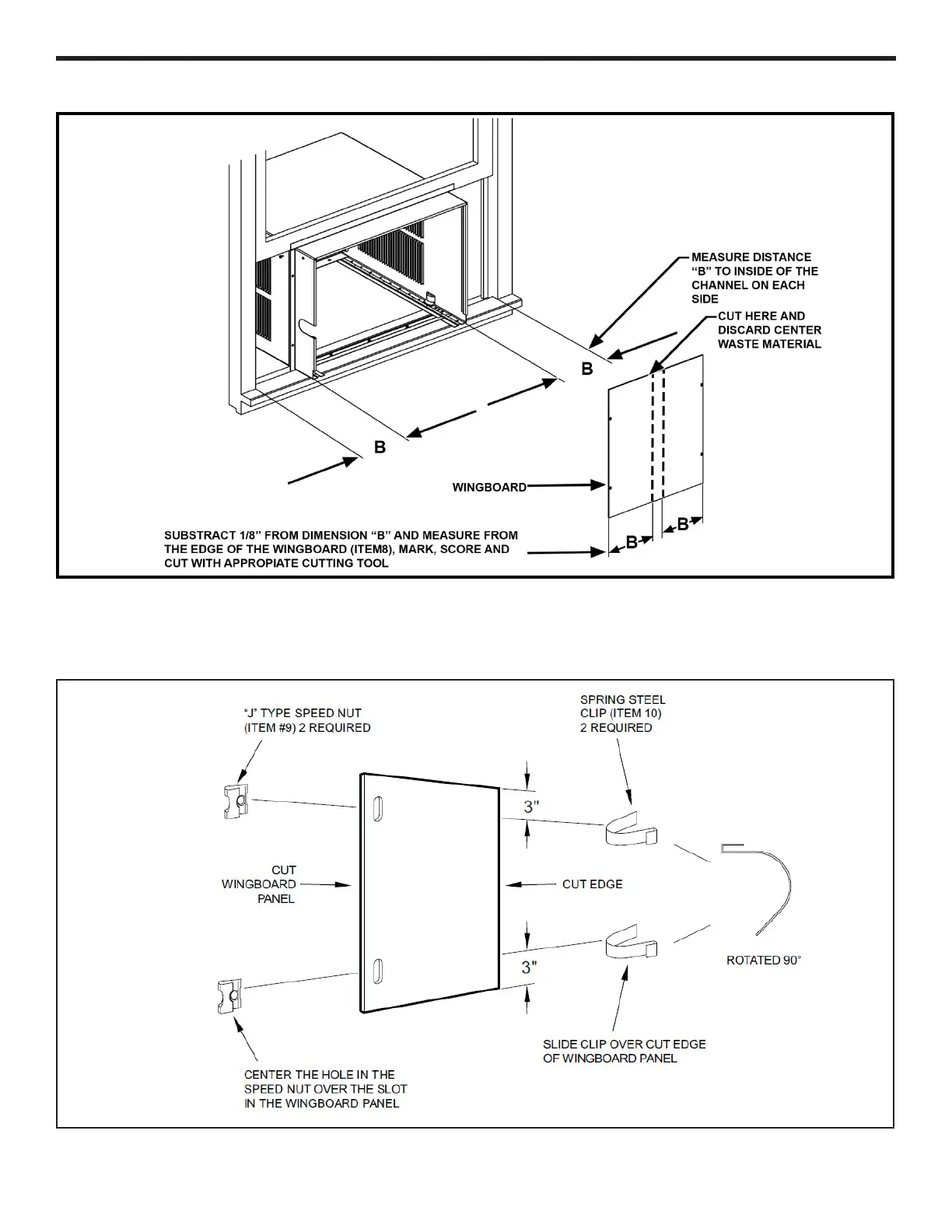

Figure 23

Figure 24

STEP 5 ASSEMBLE CLIPS TO WINGBOARD PANELS: Assemble “J” type speed nuts (Item #9) and spring steel clips (Item #10) to the

edges of the cut wingboard panels (See Figure 24).

STEP 4 CUT WINGBOARD PANELS: Measure and cut the wingboard panels from the supplied masonite (Item #8) to t the spaces

between the side window channels and the sides of the cabinet (See Figure 23).

NOTE: AFTER CUTTING PANELS, MAKE A TRIAL TEST TO SEE IF THEY FIT THE SPACE WITH ABOUT 1/8” CLEARANCE BEFORE

GOING TO STEP 5.
