Maintenance
27
6. Watch the control panel throughout one complete operating cycle.
–
The LED POWER and the LED X are green.
–
After 120 s LED X switches off and LED Z is green. The condensate drain valve opens for
approx. 2 s.
–
After 50 s LED Z switches off and LED Y is green.
–
After 120 s LED Y switches off.
–
After 50 s LED X is green. The cycle is repeated.
7. Run the dryer for at least 6 h to ensure that the correct pressure dew point is reached.
8.
Slowly open valve B.
7.1.2 Resetting the electronic controller
If the dryer is restarted after a cartridge replacement, the electronic controller must be reset. The reset
disc from the service kit must be used for this.
1
2

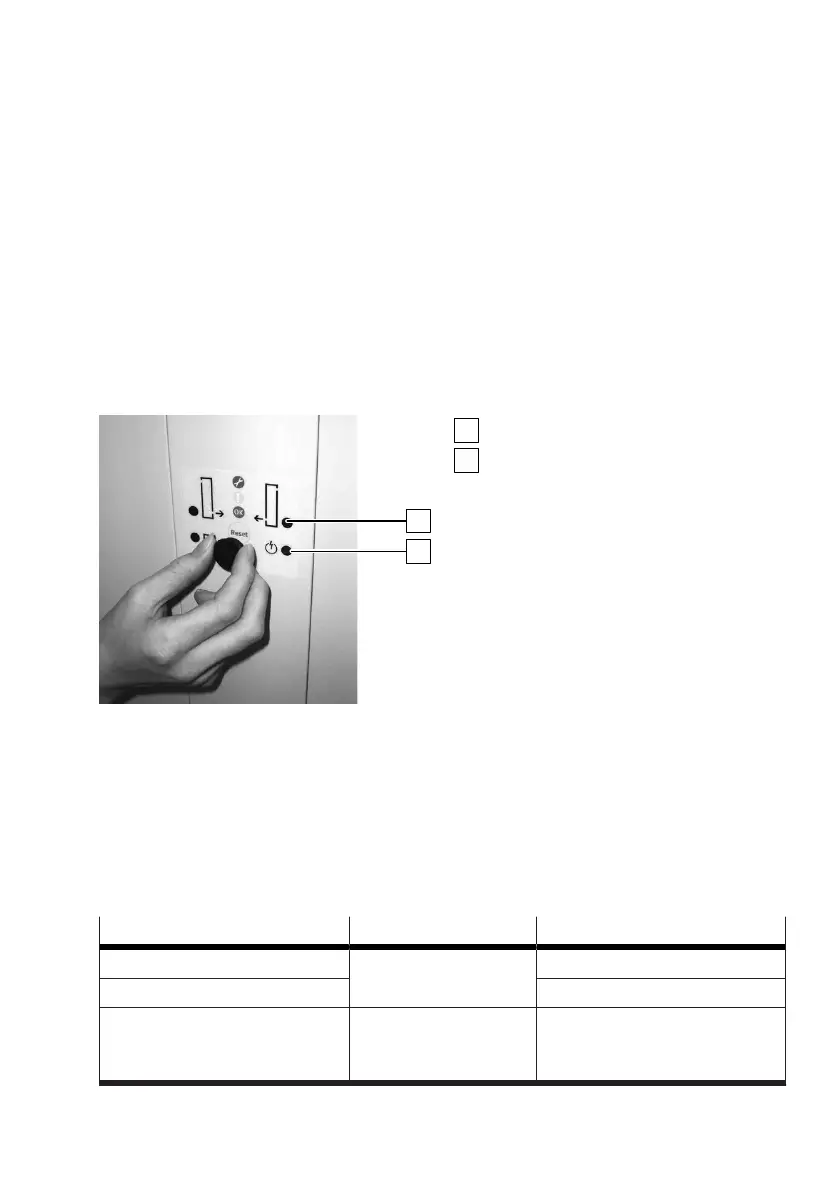

Fig. 13: Reset electronic control with reset disc
1
LED Y
2
LED POWER
Reset electronic control with reset disc
•
Hold the reset disc at the blue position on the display for 5 s.
Ä
The POWER LED (mains supply) flashes green.
Ä
On completion of the reset LED Y flashes red once for confirmation of the reset.
8 Maintenance
8.1 Maintenance work
Activities Interval Description
Clean or replace the air gun nozzle. If required
è
8.4 Replacing air gun nozzle
Clean the silencer.
è
8.6 Cleaning the silencer
Replace the drying agent cartridge. every 12000 operating
hours
See assembly instructions for
service kit
è
1.1 Applicable docu-
ments
Tab. 21: Overview of maintenance work
