Technical data

EPCE-TB -45 -60

Mz [Nm] 0.4 1

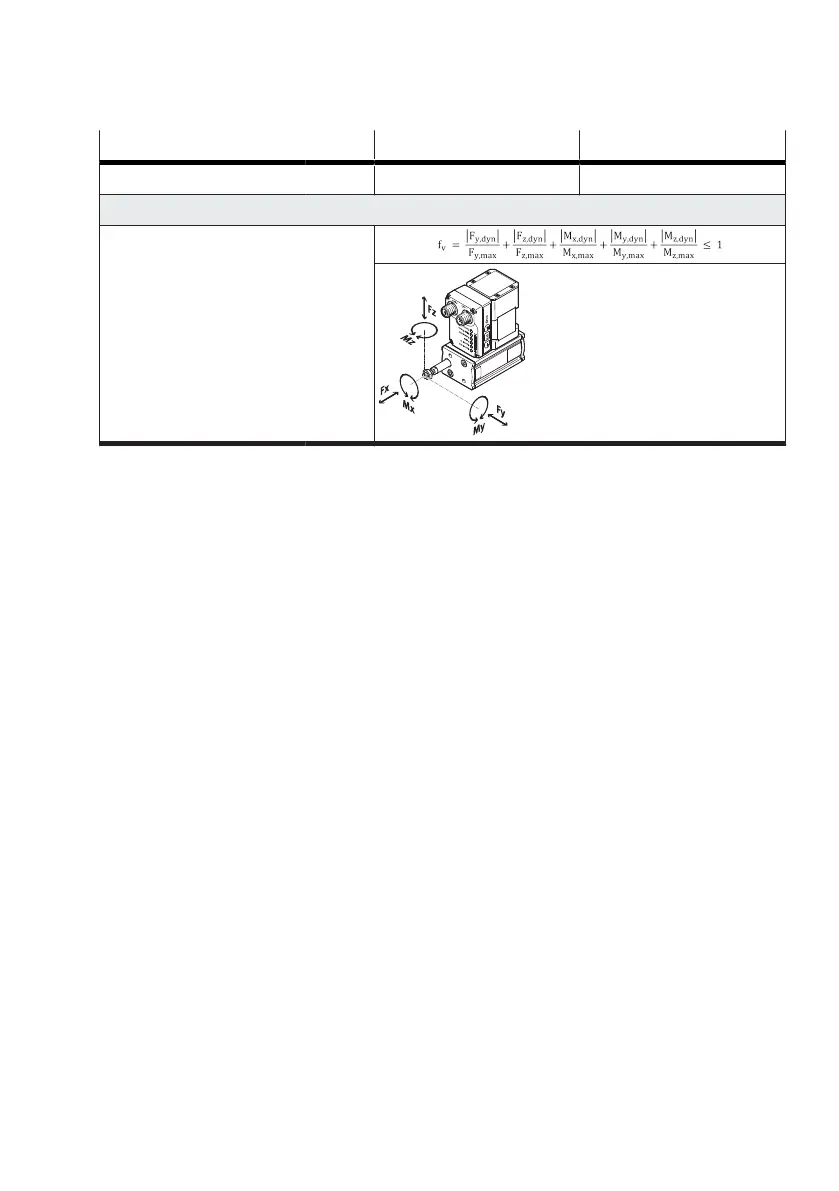

Calculating the load comparison factor

1) Maximum value for Force at level10

2) Force is controlled and evaluated by closed-loop control of the motor current. Depending on the mechanism of the drive, a linear force

can be calculated from the measured level of current. The target is set as a percentage of the rated motor current and may differ from

the actual force at the electric cylinder. At the lower force levels the frictional force of the drive system may be greater than the set

feed force and may result in the drive system coming to a standstill.

3) The force acts on the stop for £ 100 ms

4) Maximum value for Speed In/Speed Out at level10

5) Parameter that cannot be changed.

6) Distance (MechIn – LimIn or MechOut – LimOut)

Tab. 16: General data, EPCE-TB

15.1

Characteristic curves

Additional information

www.festo.com/catalogue.
