Festo — EPCE-TB — 2023-11d

Operation

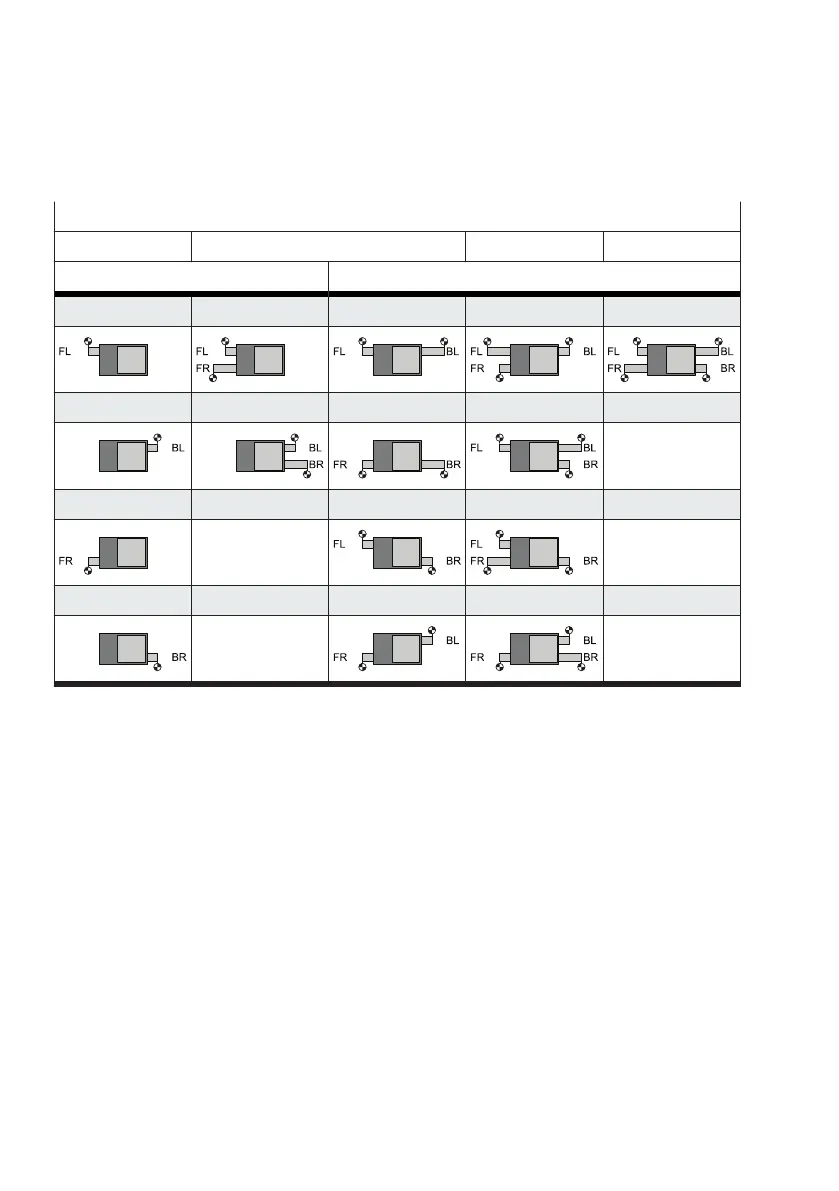

Reference end positions Ref with EPCE-TB

The following table shows the default position of the reference end positions Ref as a function of the

piston rod variants -FL/-BL/-FR/-BR.

Number of piston rods

1 2 3 4

one-sided at both ends

FL FL-FR FL-BL FL-BL-FR FL-BL-FR-BR

BL BL-BR FR-BR FL-BL-BR

–

FR FL-BR FL-FR-BR

– –

BR BL-FR BL-FR-BR

– –

Tab. 9: Overview of default reference end positions Ref

10.3

Restart with homing

Re-initialise reference end position"Ref"

The referencing of the reference end position is lost on Power OFF of the logic voltage L

[Logic, Pin 1].

After every restart the position of the reference end position "Ref" is re-initialised at the "Speed Ref"

velocity with the first motion task.
