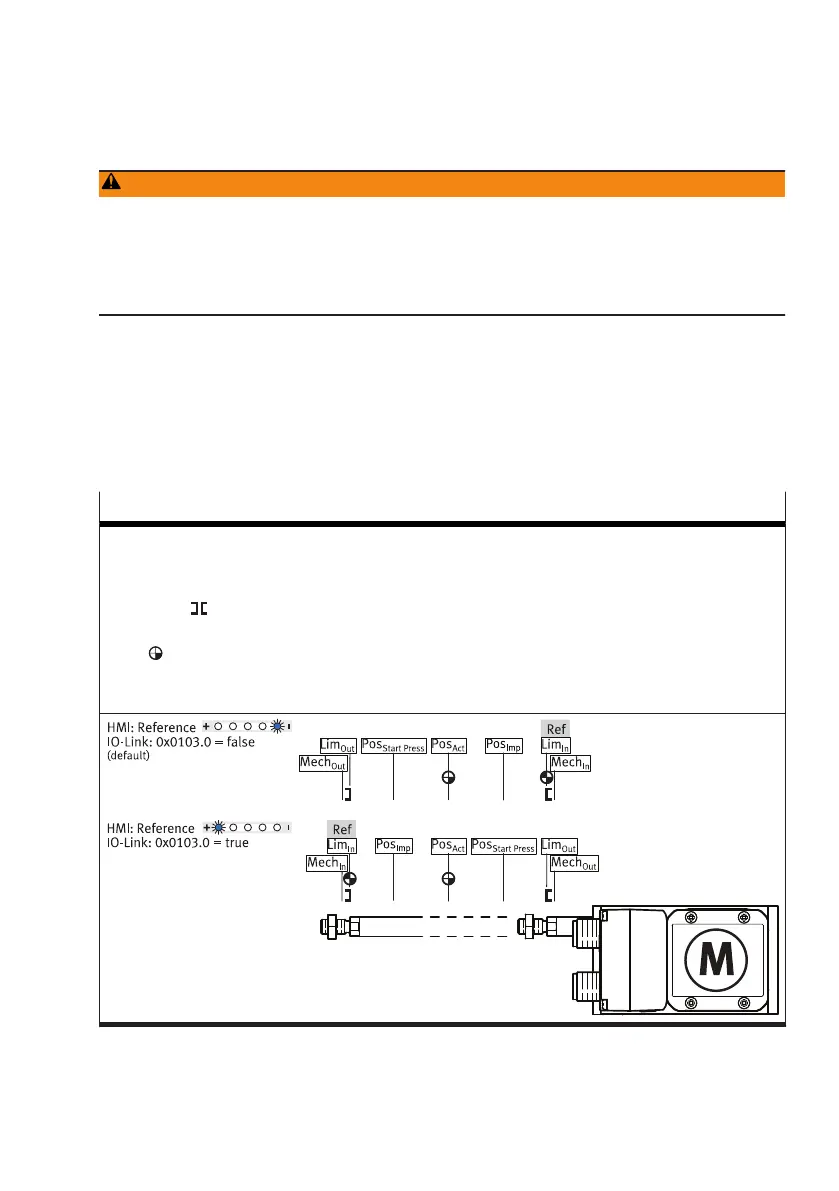

Operation
17
10 Operation
WARNING
Danger of burns from hot housing surfaces.
Metallic housing parts can reach high temperatures during operation.
Contact with metal housing parts can cause burn injuries.
• Do not touch metallic housing parts.
•
After the power supply is switched off, let the device cool down to room temperature.
10.1 Master control
–
Lowest priority: DIO operation (after Power ON and initialisation)
– Medium priority: IO-Link operation (after established IO-Link communication)
– Highest priority: HMI operation (unlocked pushbutton actuators)
10.2 Dimension reference system
The correct positioning of the drive requires a defined dimension reference system.
Linear drive system
Ref
: reference end position (reference point for Lim
In
, Lim
Out
, Pos
Act
, Pos
Imp
and Pos
Start Press
)
–
motor facing (default)
–
motor facing away
Lim
In
/Lim
Out
: end positions
Mech
In
/Mech
Out
: mechanical stops
Pos
Act
: current position
Pos
Imp
: intermediate position (IO-Link only)
Pos
Start Press
: Start Press position
Tab. 8: Dimension reference system for linear drive systems
