12
Main Menu – SETUP
In the SETUP menu the following settings can be done:

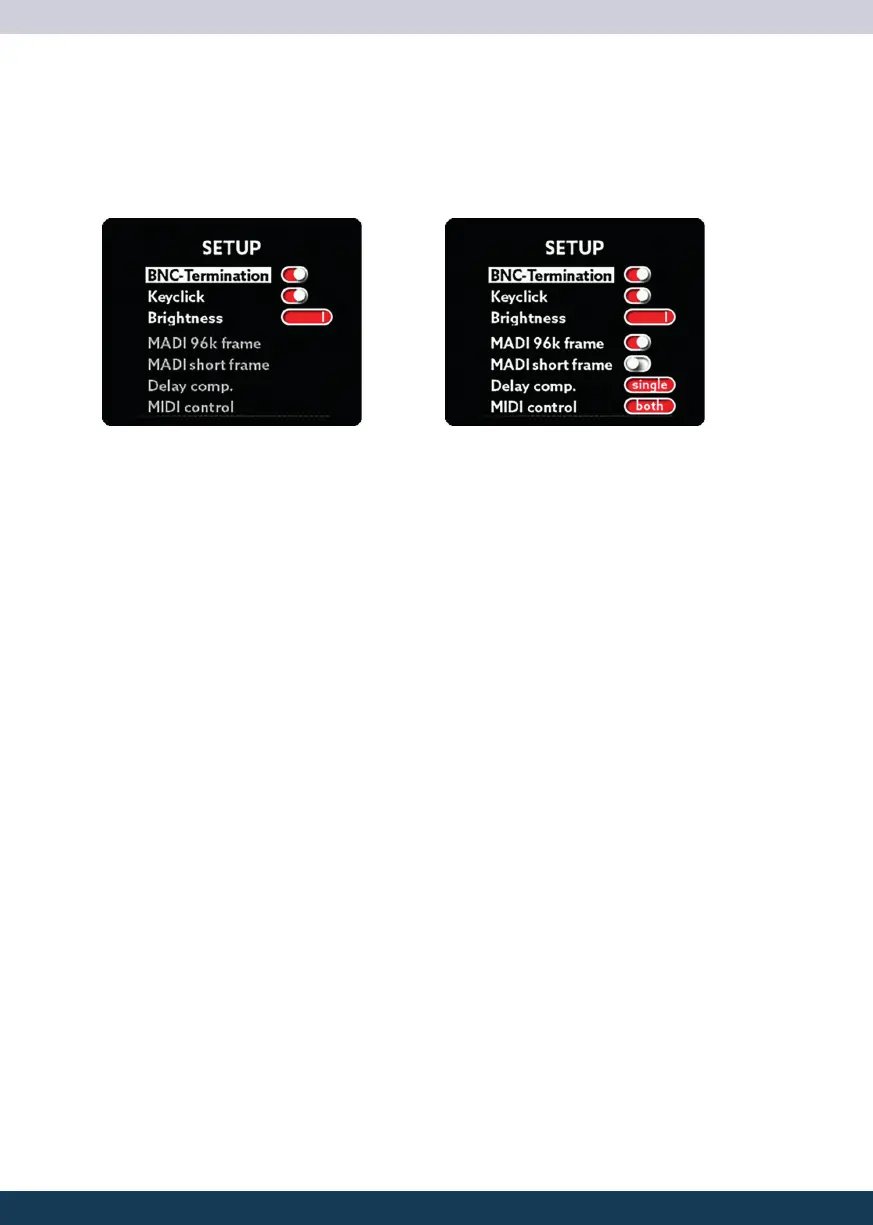

Setup Screen Pulse16 Pulse16 MX
BNC Termination
The PULSE16 wordclock is terminated internally by default with a 75 ohms resistor.
When daisy-chaining the wordclock of several units, you should leave this option set
to ON. If you’re using T-connectors for connecting several units, set this option to OFF.
Keyclick
Let’s you switch the Keyclick sound on or off. Switching the sound off can be advanta-
geous in critical situations like e.g. editing the PULSE16’s parameter inside a cave next to
a grizzly bear in hibernation.
Brightness
Here you can set the brightness of the displays. In case the PULSE16 is not operated the
display will be dimmed after some seconds.
MADI 96k frame (MADI MX option required)
When using the SMUX/2 mode, there exist two transmission standards for MADI:
• 48k frame: Transmission is identical to the SMUX/1 mode, except two channels are
grouped to one channel, resulting in 32 channels.
• 96k frame: Instead of grouping channels, the channels are sent directly, but using a
shorter packet consisting of 32 channels.
Both modes transfer the same amount of channels (32), but the 96k frame mode has the ad-
vantage, that the receiver can distinguish the SMUX/1 and SMUX/2 modes, so it can switch
automatically between 48kHz and 96kHz for example. 96k frame is the preferred setting if
the receiver can recognize it.
