MADI short frame (MADI MX option required)

The most common MADI configuration is 64 channels (SMUX/2: 32 channels, SMUX/4:

16 channels). This uses the full bandwidth of the MADI interface. When enabling the

short frame option, the PULSE16 will send only 56 channels (SMUX/2: 28 channels,

SMUX/4: 14 channels) instead of 64 channels. This option corresponds to an older stand-

ard, where the bandwidth of the missing eight channels is used to be able to change the

speed of the MADI signal within some percent up or down. For more information please

see “PULSE16 I/O’s MADI (MX) (optional)”

Delay Compensation (MADI MX option required)

When connecting several PULSE16 units in daisy-chain the MADI data will be routed thru

the first unit to the second unit and so on. This results in a small delay of the data on

the second, third and fourth unit. To compensate this delay you have to tell the PULSE16

which order it is inside the MADI chain:

• Single: only one unit connected.

• 1 of 4: first device in the MADI chain

• 2 of 4: second device in the MADI chain

• 3 of 4: third device in the MADI chain

• 4 of 4: fourth device in the MADI chain

MIDI control (MADI MX option required)

Here you can set from which port the PULSE16 should receive remote commands:

a) From the 5-pin-MIDI input only

b) From the MIDI-over-MADI input only.

c) From both sources.

Hauptmenü – PRESET

The PULSE16’s parameters GAINS, LEVELS and the routing can be permanently stored in

one of six preset slots. This lets you pre-configure the PULSE16 before the gig and save

you time later. Inside the PRESET menu you can choose which preset you want to load:

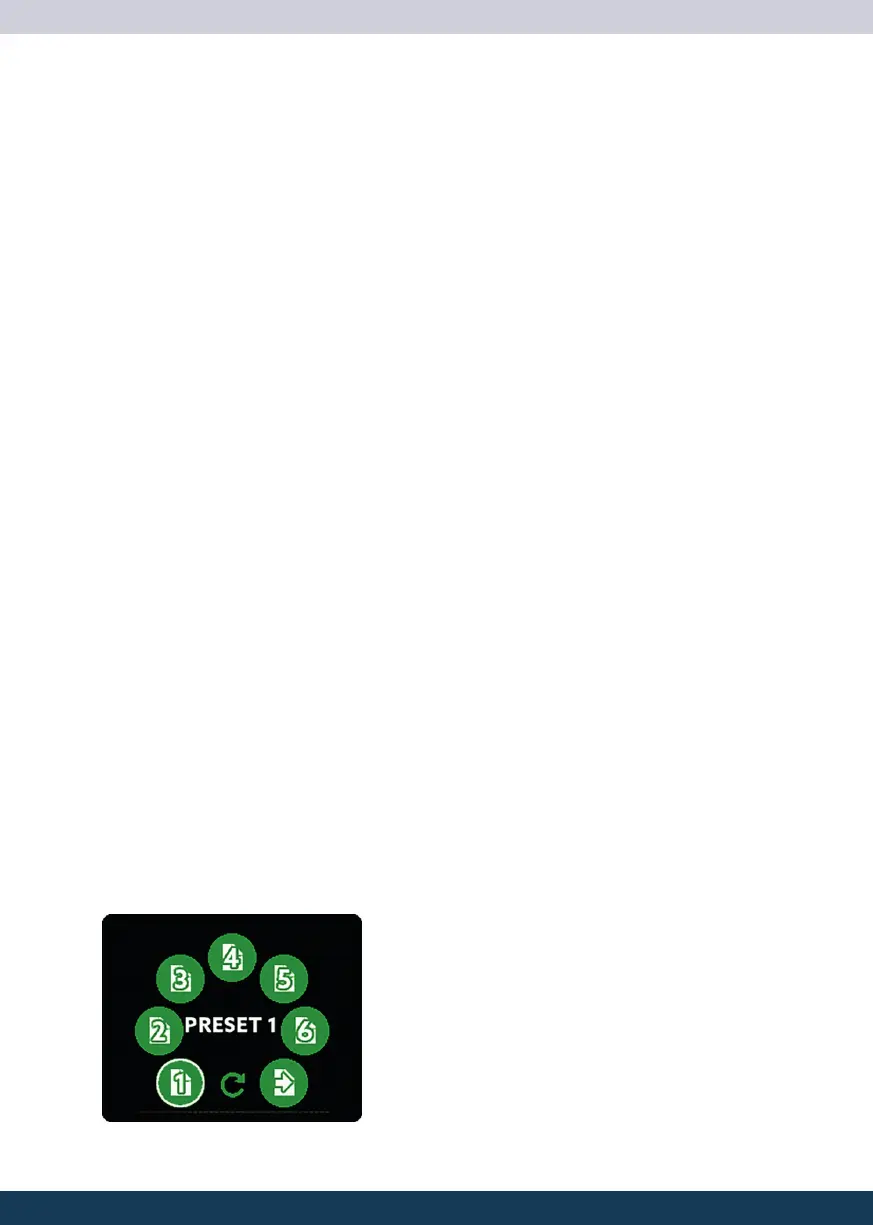

After selecting the desired preset by using the SE-

LECT pot and MENU to load it a second screen

appears. This screen lets you choose what should

be loaded: The GAINS of the analog inputs, the

LEVELS of the analog outputs, the routing – or all

three items.
