7
Main Menu – CLOCK
Inside this menu you can select the source of the wordclock and the sample
frequency of the PULSE16 when running as Master/Leader:

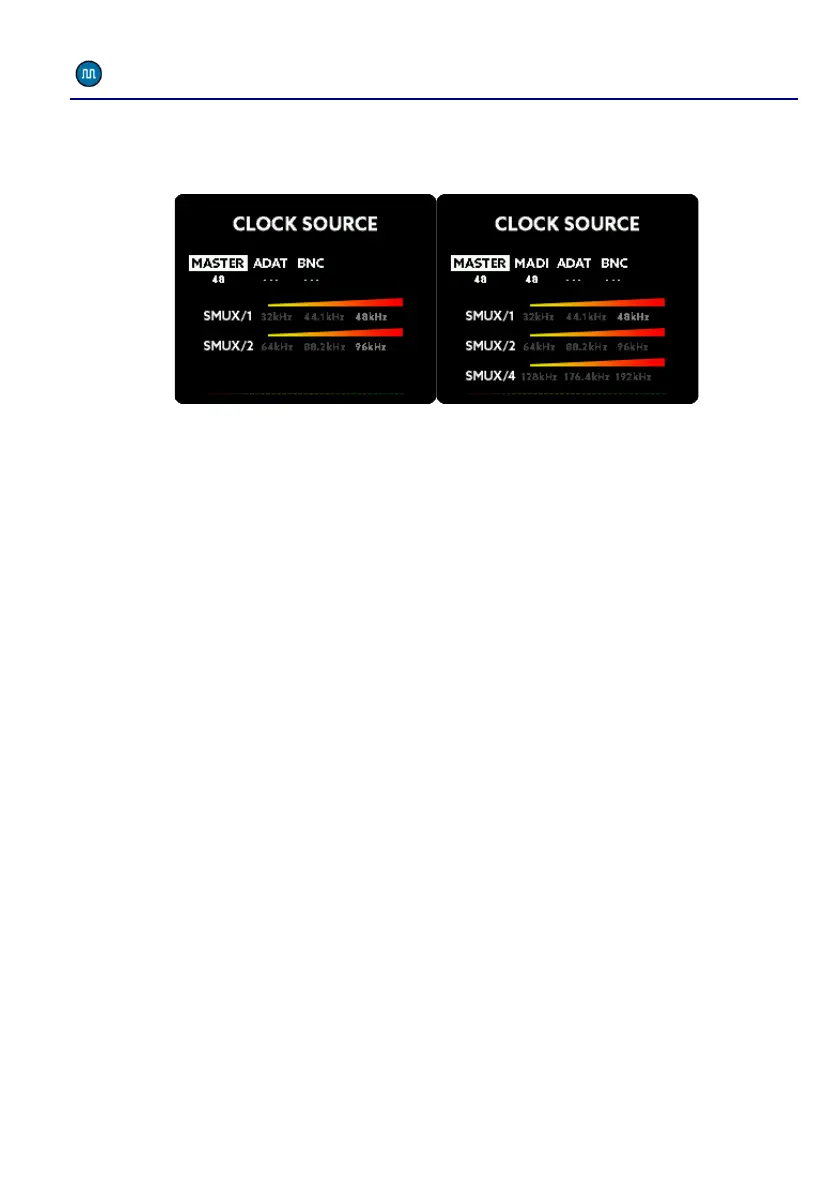

Clock Screen PULSE16 (left) – Clock Screen PULSE16 MX (right)
The numbers below the labels show the internal generated clock frequency
when set to Master/Leader or the measured external sample frequency. If
no sample rate is detected “---” is shown.
MASTER
If the clock source is set to Master/Leader, the internal wordclock
generator of the PULSE16 is used. All other digital devices attached have
to be set to Slave/Follower.
ADAT + MADI (MX or MADI option only)
The wordclock is extracted and conditioned from the ADAT or MADI data
stream and send to the Wordclock output. The conditioning is done via a
proprietary circuit.
BNC
When using an external wordclock on the BNC IN of the PULSE16, the
wordclock signal will also be routed thru the jitter reduction stage and sent
back to the BNC OUT.
