11

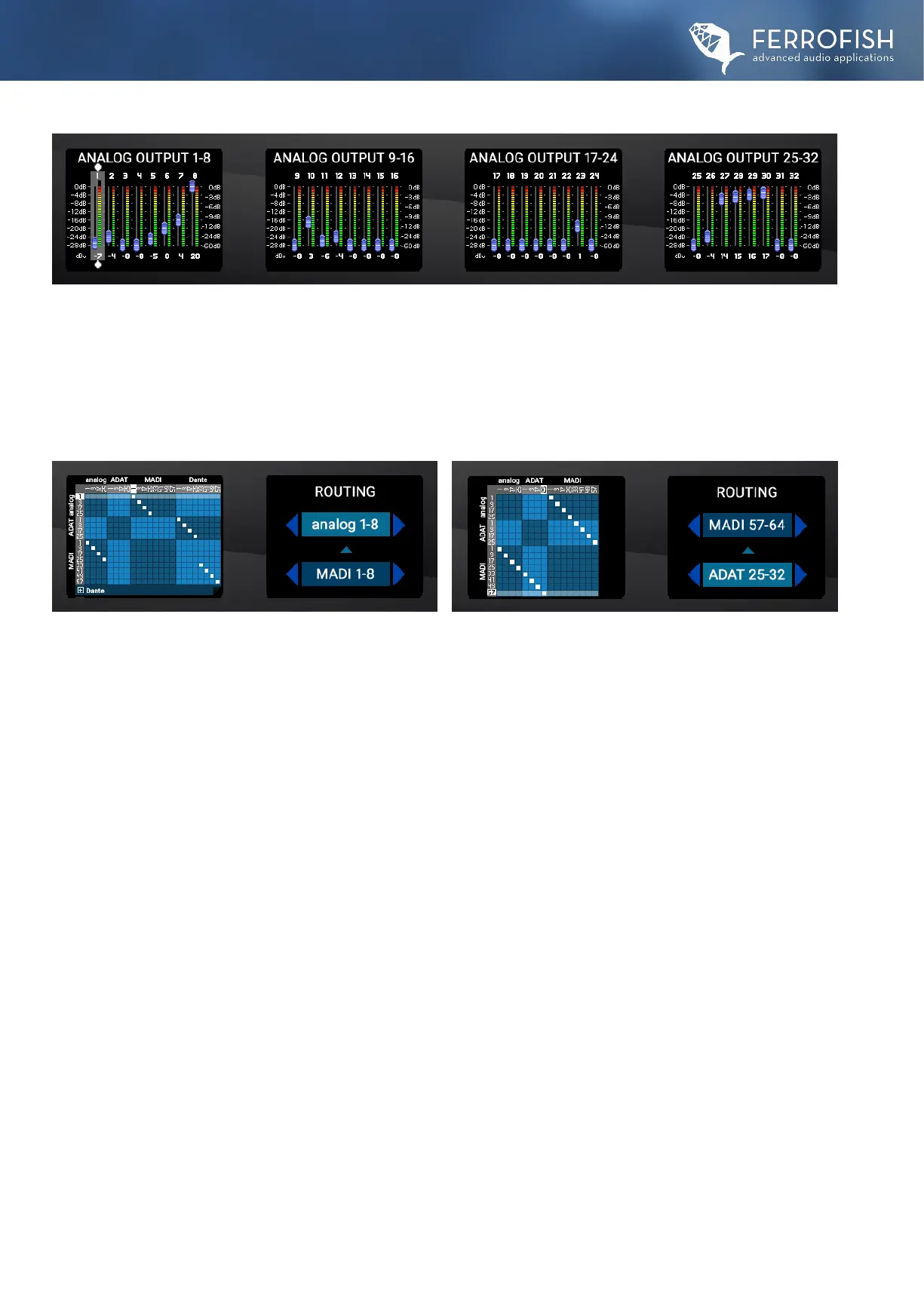

LEVELS
The LEVELS screen is similar to the GAINS screen, and determines the maximum levels of the analog outputs. Just like the inputs (GAINS),
the outputs are individually adjustable in 1dB steps from -8dBu to +20dBu. Here, too, there is the level display of the outputs.
Please note that here the level does change when you adjust the gain, because you see the level before the digital and analog gain. With a
swipe gesture at the points above and below the fader, you can select several channels and then adjust their value together with the encoder
wheel. The meters are post-fader and don’t chance when moving the fader.
A32pro Series Manual: Main Menu
ROUTING
In the routing menu, you can assign the inputs to the outputs in the form of an X/Y matrix. In the horizontal row you see the inputs,
in the vertical row the outputs. You can now connect them in groups of 8 channels each.
The numbers indicate the first channel of each group. The connection between input and output is indicated by a white square.
On the screen on the right, you can navigate the matrix display by changing the connection points of the inputs and outputs.
Due to its design, the matrix allows the distribution of a group of inputs to several output channels, but not the mixing of several
channels in the matrix.
ROUTING MENU A32pro Dante
ROUTING MENU A32pro
