A32pro Series Manual: Main Menu > Setup
Main Menu > Setup
SETUP MENU
The settings menu provides access to the following functions:
∙
SETTINGS: Further settings (see next pages).
∙
GPIO: Loading of presets #1-4 and displaying of alerts.
∙
DANTE/SFP: SFP module Infos and Dante Infos*.
∙
MADI: MADI SFP Slot Priority Routing.
∙
MIDI: MIDI, USB-MIDI and MIDI-over-MADI Routing.
∙
LOCK: Locking the front panel.
∙
INFO: Further information about the device and the team.

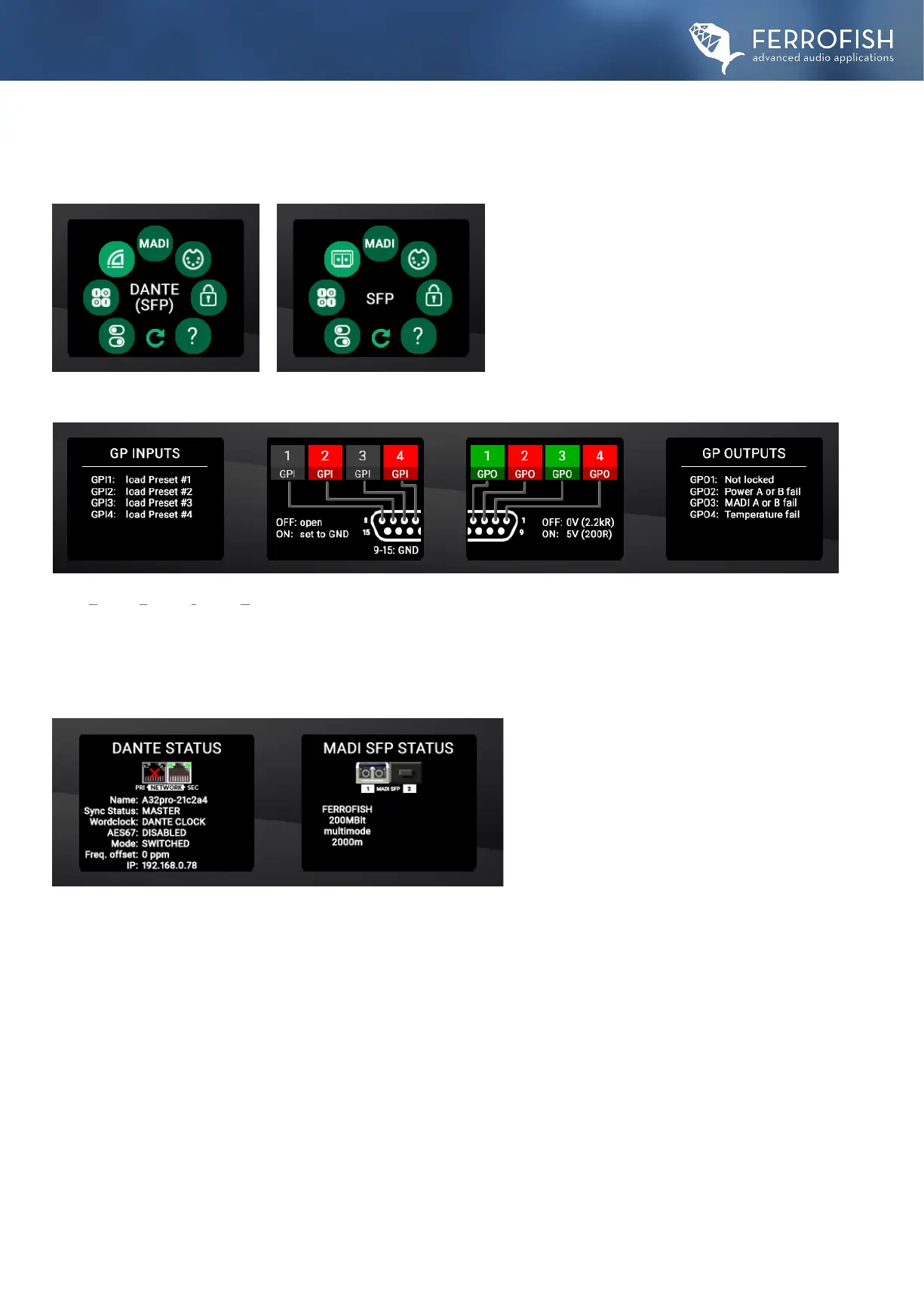

SETUP MENU A32pro Dante
SETUP MENU A32pro
GPIO (General Purpose Input & Output)
In the GPIO menu, you can check the status of all GP inputs and outputs at a glance. In addition, the outputs can also be activated and
deactivated manually via the touch screen. The inputs can only be triggered via the hardware input. The exact functions of the four inputs and
outputs can be found in the chapter of the interface description. Please note that the inputs are always active.
Do not connect the GPIO connector on the inputs if you want to prevent loading a preset by accident.
DANTE (SFP) / SFP INFO
The DANTE / SFP Info Menu displays information about
the internal Dante module* and the installed SFP
modules. Please note that the info screen about the
installed Dante module only appears on an A32pro Dante.
On an A32pro you will only see the info screen for the SFP
modules.
DANTE Status: In the DANTE Status Menu, the following parameters of the internal Brooklyn Board are displayed:
∙ Name: Name of the device inside the DANTE network
∙ Sync Status: Indicates whether the unit is configured as Master/Leader or Slave/Follower.
∙ Wordclock: Displays the wordclock speed.
∙ AES67: Indicates whether the AES67 interoperability standard is switched on or not.
∙ MODE: Indicates the mode of the rear dual Ethernet port. In SWITCHED, both ports work like a switch, in REDUNDANT, both single ports
are used for single DANTE networks in redundancy mode.
∙ FREQ. OFFSET: Indicates the offset of the wordclock in the Dante network in relation to the device’s own wordclock. Values of +/- 100 are normal.
∙ IP: Displays the IP address of the A32pro Dante on the Dante network.
MADI SFP Status: The MADI SFP status menu shows the parameters of the installed SFP MADI modules:
∙ VENDOR ID: Manufacturer name of the SFP module
∙ I/O SPEED: Speed of the SFP module
∙ SFP CONFIGURATION: Indicates whether a SingleMode or MultiMode module is installed.
∙ SFP FIBER DISTANCE: Displays the maximum usable distance (depending on the configuration).
