- 8 -
Refrigerated ERR Self Contained Models
Cabinet Preparation
The ERR Self Contained models have a large condenser compartment hanging from the rear of the unit that
contains the condenser/condensate evaporator unit. This compartment hangs off the rear edge of the
counter. The rear of the counter must be open to allow space for this compartment. The countertop top
should be flush with countertop back and the first top 8” of cabinet back must be flat with no doors.
DANGER:
Case must be fastened to counter and counter must be fastened to floor.
IMPORTANT: The condenser air inlet and discharge louvers are located in the rear of the case. Do not
block these louvers and do not locate them near a source of heat. Clearance of 8” minimum must be
maintained for condenser air exchange.
(2) ½”dia. case fastening holes will need to be drilled through the counter top surface to attach case to

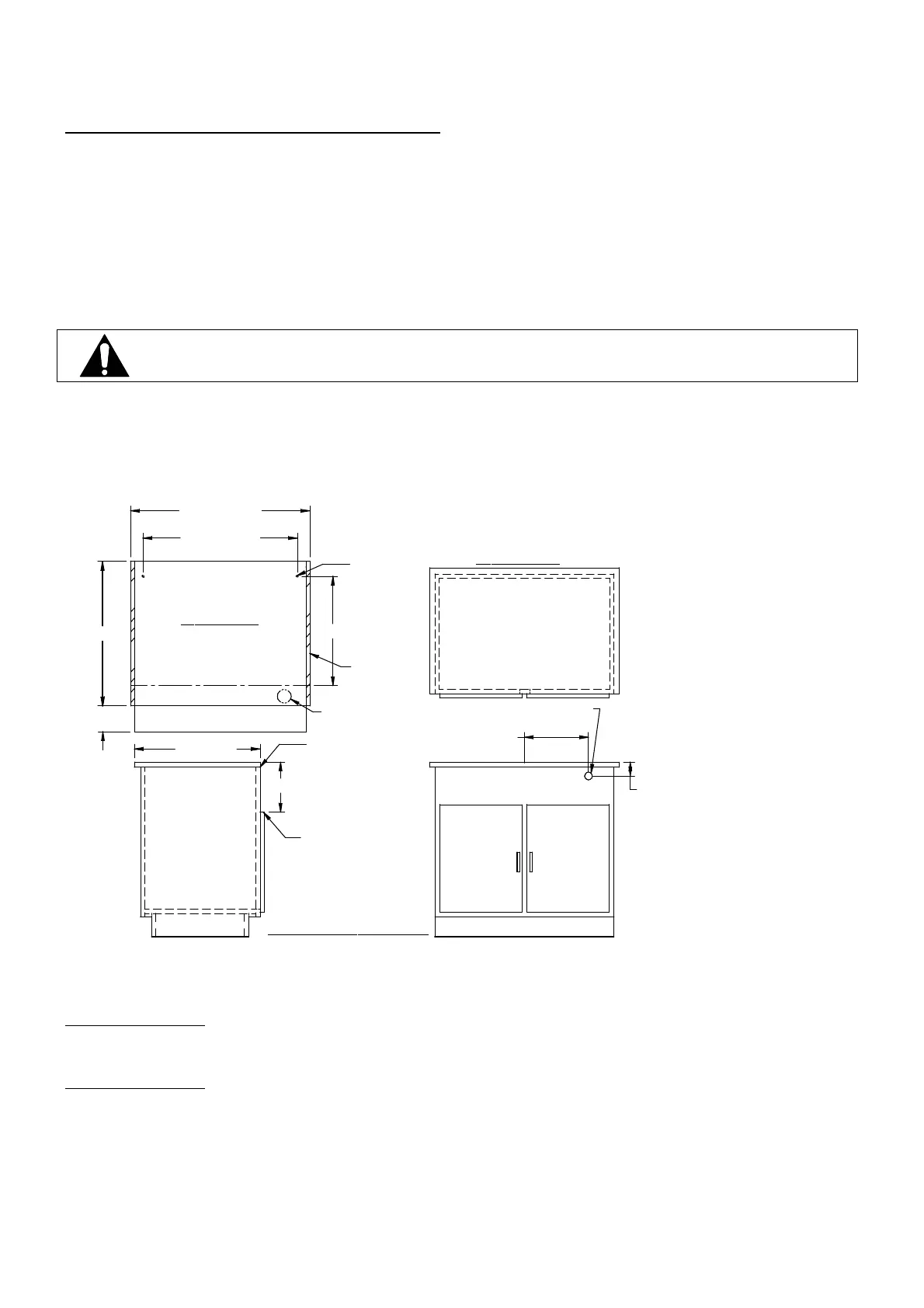

counter with ¼” X 2” screws provided. Use the diagram below for hole placement location.
25.25 MIN.
10.0
DOORS ON REAR OF
CABINET MUST BE
10.0" FROM COUNTER
TOP SURFACE
COUNTER TOP MUST
BE FLUSH WITH REAR
OF CABINET.
IMPORTANT:
UNIT MUST BE
FASTENED TO
COUNTER AND
CABINET MUST
BE FASTENED
TO FLOOR
36.0 (36"UNIT)
48.0 (48" UNIT)
21.93
(2) 1/2" DIA
MTG. HOLES
31.0 (36"UNIT)
43.0 (43"UNIT)
CORD LOCATION
STANDARD OPT.1
CORD LOCATION OPT.2
1-1/2" DIA HOLE
12.87 (36 UNIT)
18.87 (48 UNIT)
BACK
CUTTING BOARD
2.75
3/4" END
PANELS
CUSTOMER SIDE
TYPICAL CABINET CRB MODELS
FRONT
FRONT
29.00
5.21 /
6.71 SS
CASE TOP VIEW
EDG OF COUNTER TOP
CORD OPTIONS
CORD OPTION 1: The electrical cord is shipped from the factory protruding from the 2-3/4” hole located
in the bottom rear corner of the condensing compartment and does not require a hole to be drilled into the
cabinet. (You may need to reach up into 2-3/4” hole to retrieve cord.)
CORD OPTION 2: The power cord can also be allowed to drop into counter interior space. This option
does not require any rewiring of the case, but does require a hole to be drilled into the back of cabinet.
1. Before placing the case onto the counter remove the (6) screws holding the condenser cover and remove
the condenser cover.
