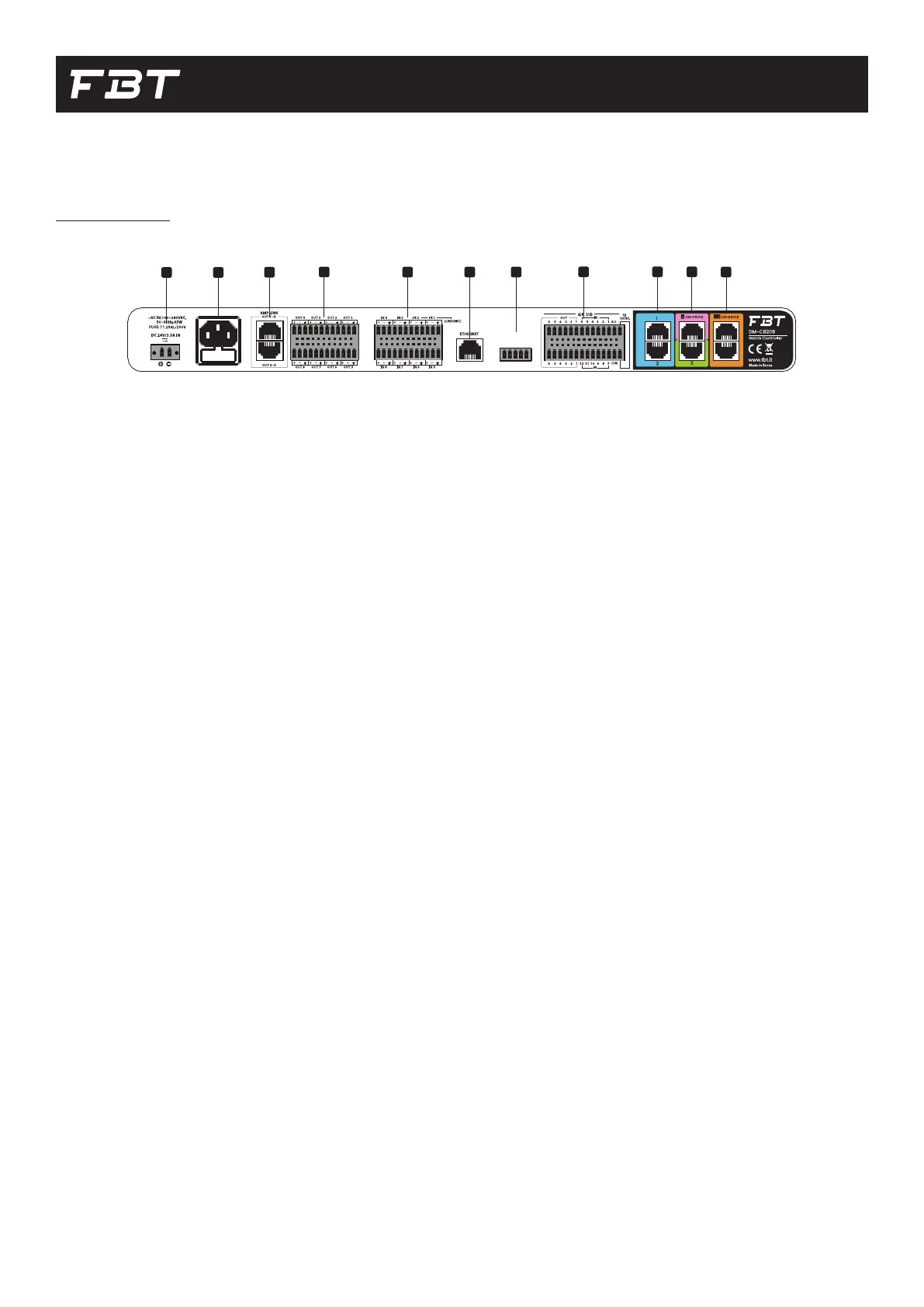

CONNECTIONS
DM-C8208
Digital Matrix Controller
2
3
1
4
5
6
7
8
9
10
11
SERVICES
1. DC power input terminal
It is a DC power (DC 24V) input terminal for connecting the unit
with DC power for operation.
2. AC input terminal
It is main power (AC 220V) input terminal. DC power is supplied to
the unit through the SMPS inside.
3. Audio output auxiliary terminal
8 channels balanced audio output using RJ-45 terminal. It can be
connected to the dedicated amplier.
4. Audio output terminal
8 channels balanced audio output using terminal block.
5. Audio input terminal
8 channels balanced audio input using terminal block.
6. Ethernet
PC / MAC connection port. DM-C8208 can be controlled with
dedicated software.
7. Service terminal
This terminal is used for factory service.
8. General-purpose input / output
General-purpose 12 input and 6 output using terminal block.
9. 1, 2, 3
This terminal is dedicated for future upgrade.
10. DM-P8208 Dedicated Port
Terminal to connect DM-P8208.
11. DM-P8208 Dedicated Port
Terminal to connect DM-S8208
