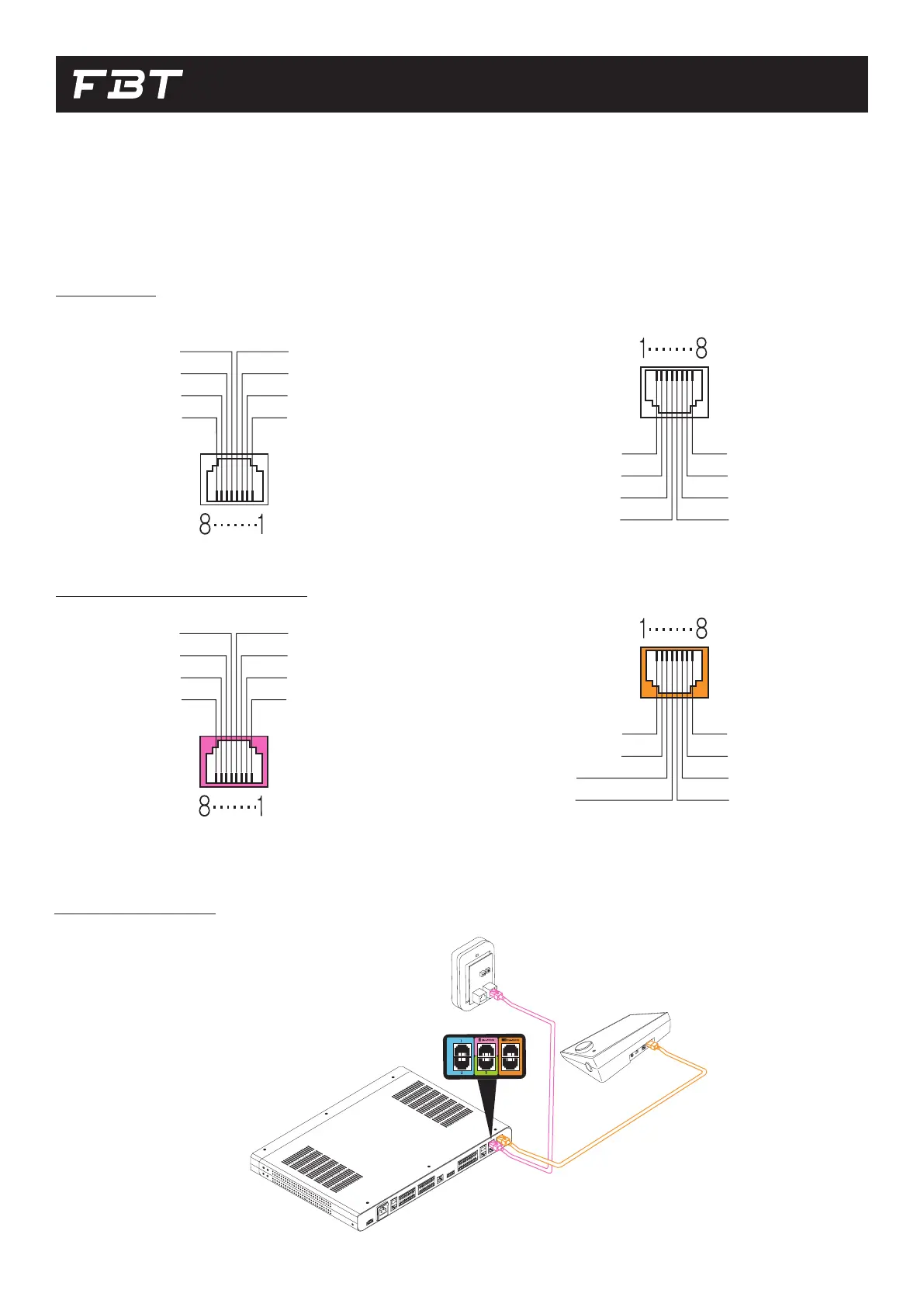

CONNECTIONS
DM System Connection diagrams are shown below. The Pin Out is provi-
ded rst before wiring.
You can nd the information between products, rear panel for each product
from this Connection section.
PIN OUT
Audio Output 8ch (RJ45 type) PIN
5: Audio Output +#3
1: Audio Output +#5
6: Audio Output +#2
2: Audio Output -#5
7: Audio Output -#1
3: Audio Output +#6
8: Audio Output +#1
4: Audio Output +#7
DM-P8208 / DM-S8208 PIN OUT
4: Audio Output -#3
3: Audio Output -#2
2: Audio Output +#4
1: Audio Output -#4
8: Audio Output -#8
7: Audio Output +#8
6: Audio Output -#6
5: Audio Output -#7
5: GND
6:
7:
8:
4: +24V
3:
2: RS 485 Data-A
1: RS 485 Data-B
1: RS 485 Data-B
2: RS 485 Data-A
3:
4: +24V
8: Audio -
7: Audio +
6:
5: GND
DM-8208 SYSTEM
When using two or more units,
connect the LINK OUT terminal to
the LINK IN terminal of the other
unit.
Connect to DM-P8208, DM-S8208
through RJ45 terminal on the back.
DM-C8208
DM-S8208
DM-P8208
DM-P8208 RJ45 Type Pin Out
DM-S8208 RJ45 Type Pin Out
