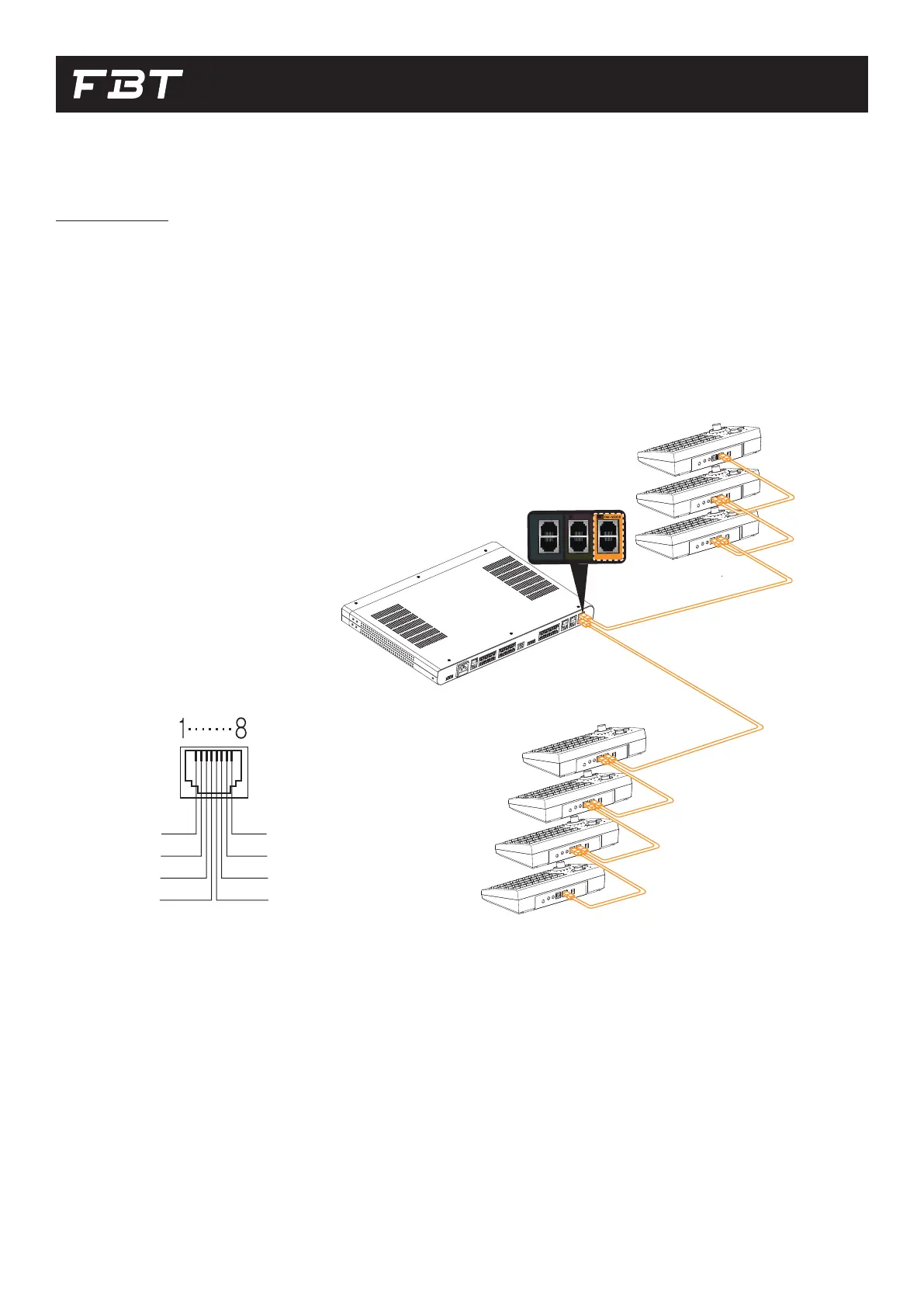

CONNECTIONS
DM-S8208
Digital Matrix Station
1. Turn off the power and connect and install.
2. Avoid humid place and install in a well ventilated place.
3. When using a microphone other than the one provided, the mi-
crophone level may be high or low.
4. When connecting DC power, be sure to check on +, -.
5. Please connect a power supply 24VDC 600mA or higher (not inclu-
ded).
4 units per each terminal can be
connected via Daisy Chain
4 units per each terminal can be
connected via Daisy Chain
Connect to DM-S via RJ45
terminal on the back
DM-C8208
1: RS 485 Data-B
2: RS 485 Data-A
3:
4: +24V
8:
7: A
6:
5: GND
DM-S8208 RJ45 Type Pin Out
