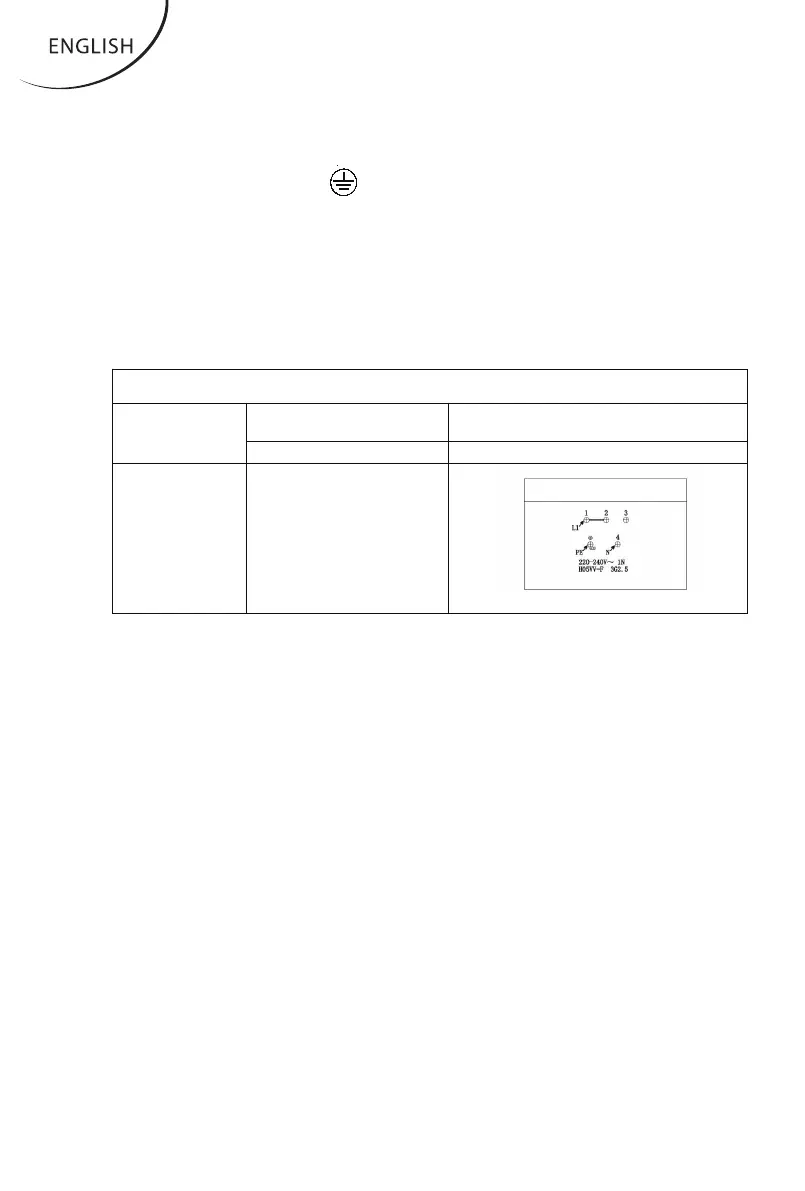

Warning!
Remember to connect the safety circuit to the connection box
terminal marked with .The electricity supply for the ceramic
hob must have a safety switch which enables the power to be
cut off in case of emergency. The distance between the working
contacts of the safety switch must be at least 3mm.
Before connecting the ceramic hob to the power supply it is
important to read the information on the data plate and the
connection diagram.
wires for model TVS 5200-B23
Adaptive voltage
range and wires
model
The wiring diagram
220-240 1N～ 50-60Hz
KADO K 1/5
H05VV-F 3G2.5
CONNECTION DE CABLAGE
4T
• The cable connections must be in accordance with the
diagram located on the bottom of the hob.
• The cable type must be connected to the corresponding
power supply terminal box.
• You should use a good quality screwdriver to carefully,
fully tighten ALL of the terminal screws.
• If when the hob is first switched on, only two of the zones
work, you should recheck that the terminal screws are all
fully tightened. This should be done before contacting the
Customer Care Department.
• IMPORTANT: The appliance must NOT be connected to
the mains supply by means of a 13A plug and socket.
• This appliance must be wired into a 30 A double pole
switched fused spur outlet, having 3 mm contact
separation and placed in an easily accessible position
adjacent to the appliance. It should not be located above
the appliance and no more than 1.25m away from it.
EN-14
