· Step.3
Fix the brackets(5 pcs) on the left side and right side and
back side by screw.Put the hob in the cut-out cabinet,and
make it centered.Ensure that the front edge of the hob is
parallel to the side edge of the work surface.

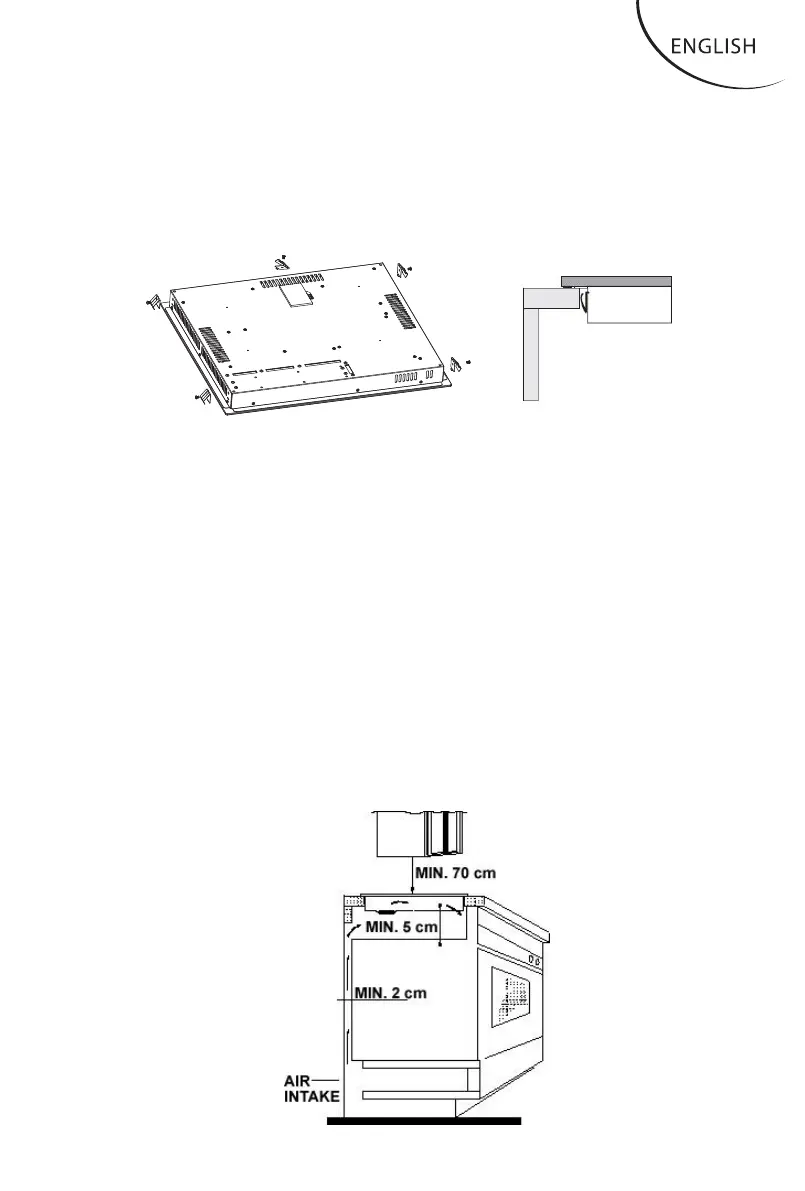

· IMPORTANT: You must observe the ventilation
requirements shown in the drawing opposite.
· IMPORTANT : There are ventilation holes around the
outside of the hob. YOU MUST ensure that these holes are
not blocked by the work top, when you put the hob into
position (see drawing opposite).
· IMPORTANT : Do not use a silicon sealant to seal the
appliance against the aperture. This will make it difficult to
remove the hob from the aperture in future, particularly if it
needs to be serviced.
· Carefully turn the hob back over and then gently lower it
into the aperture hole that you have cut out.
· Add a wooden board to the bottom of the stove.
EN-13
