Network Button Panels • Hardware Features and Installation — Wall-mountable Models 25
Step 7: Test and Troubleshoot
1. Test the system (see the user guide for the control processor for an outline of the system testing and
troubleshooting procedure).
2. Make adjustments to wiring or conguration as needed. Remember that the rear panel port on the button
panel is not accessible after the NBP is mounted.
Step 8: Complete the Physical Installation
Mount the unit to a wall or furniture (see “Mounting”, below). Before mounting the NBP, make sure that the
Ethernet cable has been fed through the wall or furniture and is connected to the NBP rear panel.
NOTES:
• Extron recommends taking safety precautions to avoid electrostatic discharge issues during installation.
• For best results, Extron recommends grounding the NBP if the junction box or mud rings are not already
grounded (see the grounding instructions on page 21).
Mounting
Decorator-style and US Gang Models
Mount the NBP decorator-style and US gang models as follows:
1. Insert the cabled NBP into the mud ring or junction box within the wall or furniture, aligning the mounting holes
in the NBP with those in box or mud ring.
2. Secure the NBP to the junction box, wall or surface mounting box, or mud ring as follows (see figure 30 to
gure 33):
a. For decorator-style models: Insert the included screws through the mounting holes at the top and bottom
of the NBP and into the corresponding threaded holes in the box or mud ring (see figure 30 and
figure 31).
LAPTOP
HDMI
PC
MEDIA PLAYER
VIDEO
e
e
R
Wall
Mud Ring
Wallplate
NBP 105 D
LAPTOP
HDMI
PC
MEDIA PLAYER
VIDEO
e
e
R
Wallplate
NBP 105 D
Wall
Electrical
Junction
Box

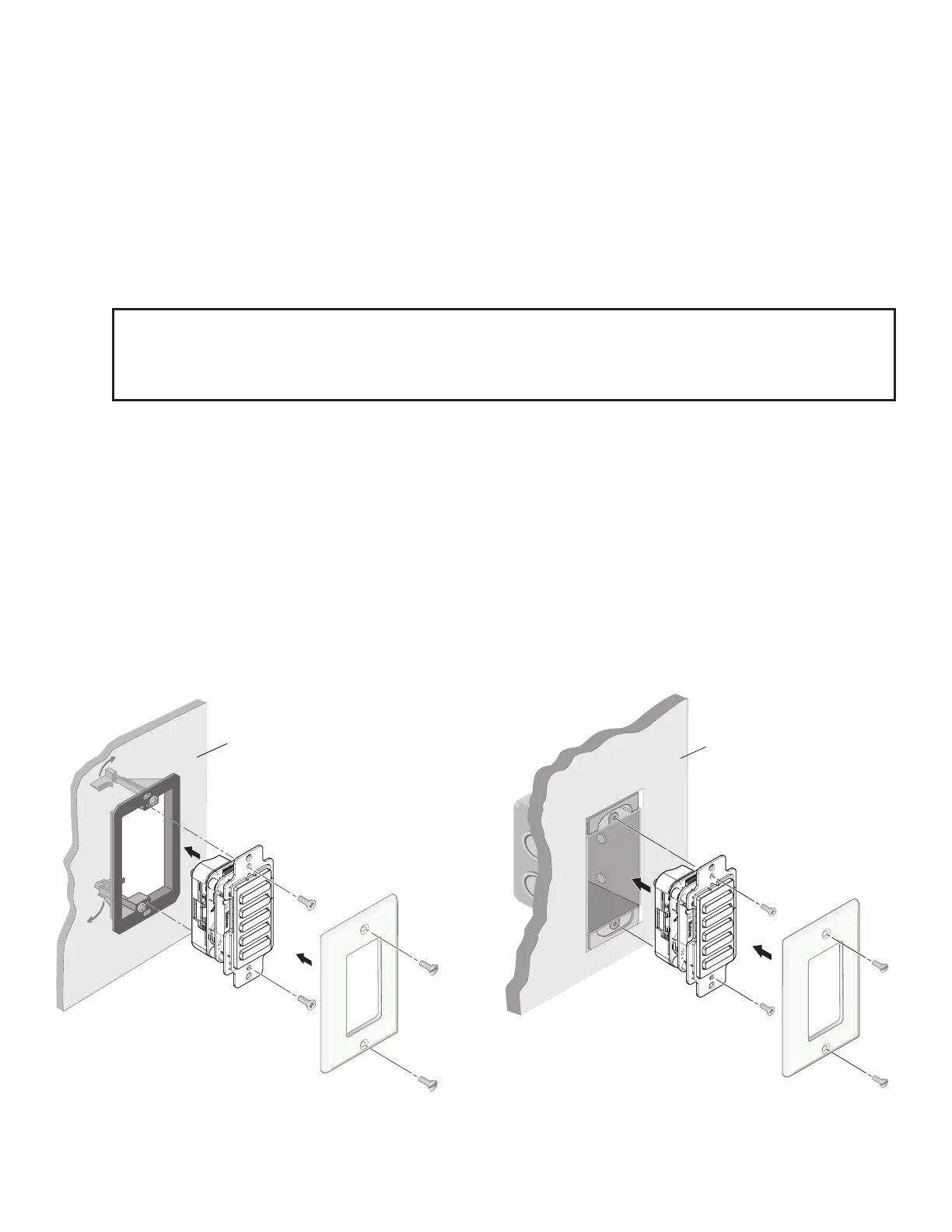

Figure 30. Installing the NBP 105 D in a Mud Ring
30
Figure 31. Installing the NBP 105 D
in a Junction Box
31
