Network Button Panels • Hardware Features and Installation — Wall-mountable Models 26
For US gang models: Insert the included screws through the mounting holes at the top and bottom of the
unit, through the plastic spacer (if not using a mud ring), and into the corresponding threaded holes in the
box or mud ring (see figure 32 and figure 33).
RESET
e
ON
PC
VIDEO
MUTE
LAPTOP
OFF
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
00-05-A6-XX-XX-XX
Extron
Wall
NBP 100
Mud Ring
Faceplate
b. Using a Phillips screwdriver, lightly tighten the mounting screws until snug.
ATTENTION:
• Do not overtighten the screws.
• Veillez à ne pas trop serrer les vis.
Rev. E: Deleted
model names.
NOTE: If the unit is not installed
in a mud ring, you must install
the plastic spacer. The spacer
positions the unit to allow the
magnetic faceplate to attach
properly and securely.
RESET
e
ON
PC
VIDEO
MUTE
LAPTOP
OFF
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
00-05-A6-XX-XX-XX
Extron
Wall
Faceplate
NBP 100
Plastic Spacer
Junction
Box

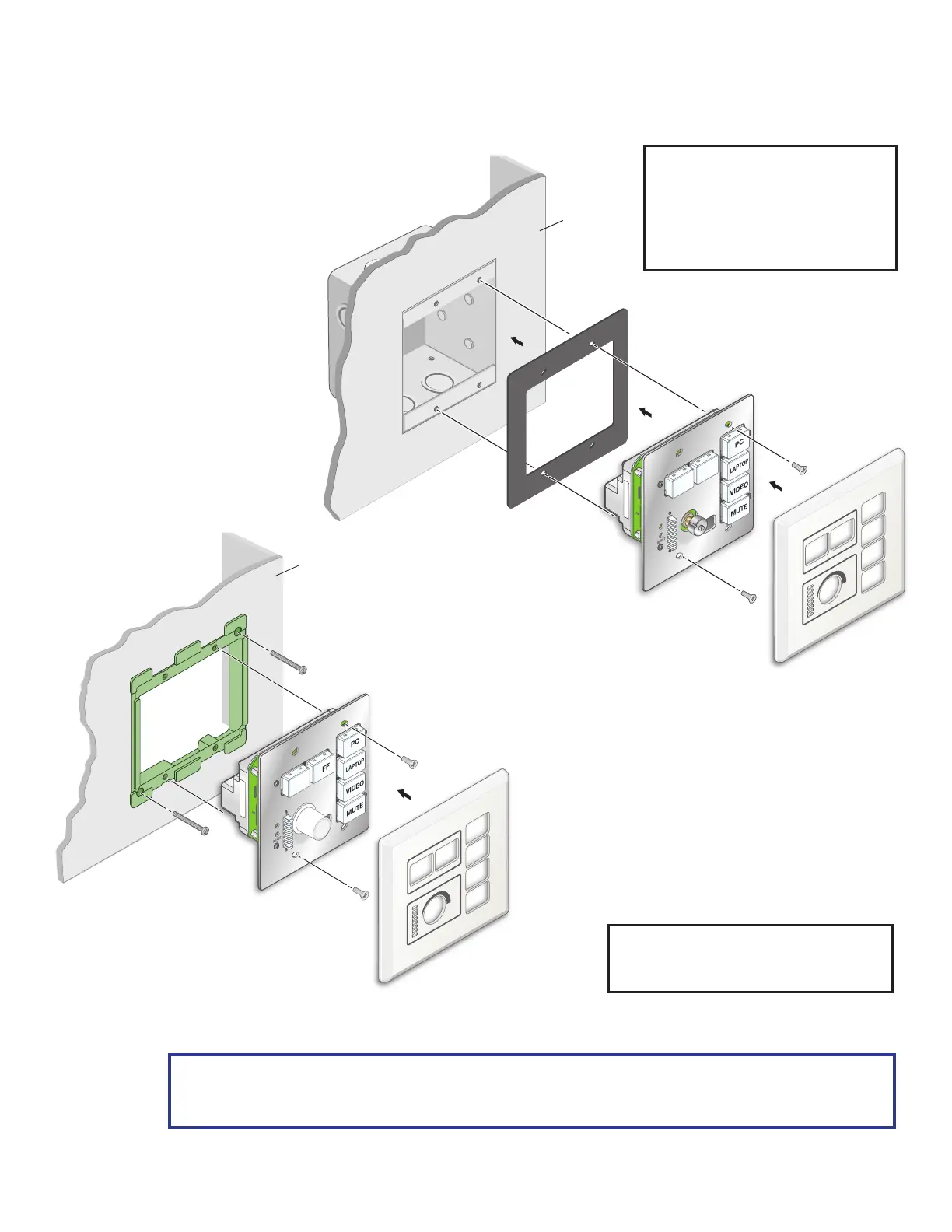

Figure 32. Installing the NBP
in a Junction Box
32
Figure 33. Installing the NBP
in a Mud Ring
33
NOTE: Extron recommends taking
precautions to avoid electrostatic
discharge issues during installation.
