IPL EXP I/O Series • Hardware Features and Installation 19
Cabling:
• For 10Base-T (10 Mbps) networks, use a CAT 3 or better cable.
• For 100Base-T (max. 155 Mbps) networks, use a CAT 5 or better cable.
Connect the PC that you use for setup, the LAN port of the
EXP
, and the control processor and touchpanels to the
same Ethernet network.
R
IPL EXP RIO8
100
LINK
ACT
IPL EXP RIO8
LAN/PoE
IPL EXP 200
LAN / PoE+
RJ-45
Connector
Insert
Twisted Pair Wires
Pins:
12345678
Rear
Panel
Front Panel,
IPL EXP RIO8
Front Panel,
IPL EXP RIO8
• Connect to a network that
provides PoE+
(IPL EXP RIO8) or PoE or
PoE+ (all other models) or to
an active power injector.
• Front panel LED ( ) blinks
during boot-up and remains
lit when the unit is powered
and operational.
Ethernet
Link
LED
Activity
LED
100 Mbps
Connection
Network is
active.
Data is being
sent/received.
or
TCP/IP
Network
LAN (Ethernet)
Default protocol, public ports:
Default login
credentials:
• Username:
admin or
user
• Password:
extron
• IPL EXP IP address: 192.168.254.250
• Gateway IP address: 0.0.0.0
• Subnet mask: 255.255.255.0
• DNS address: 127.0.0.1
• DHCP client: off
• Link speed and duplex level: autodetected
• Data rates: 10/100Base-T
PC
PoE or PoE+

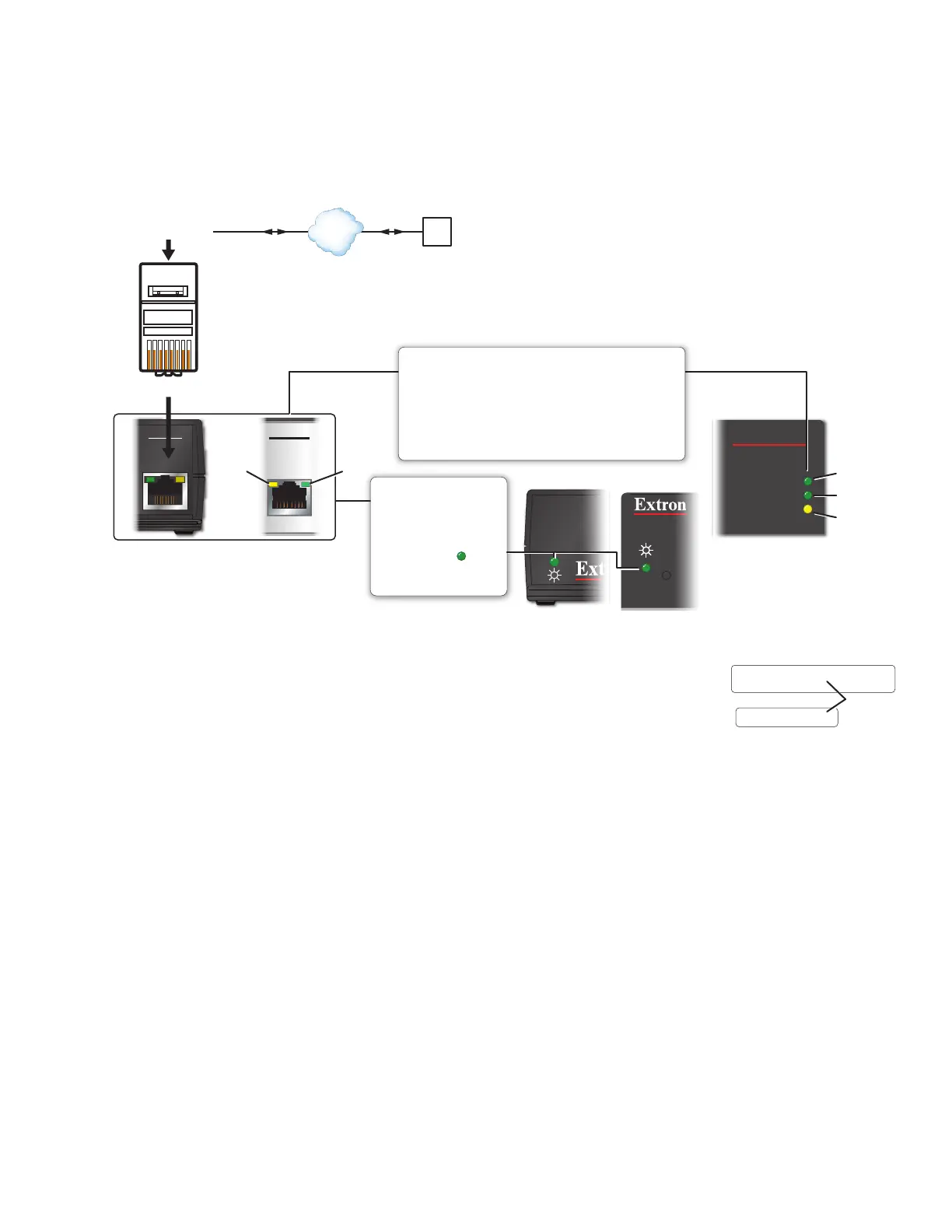

Figure 8. LAN Connector, LEDs, and Default Protocol
MAC address — Each IPL EXP unit is assigned a unique user hardware ID number
(Media Access Control [MAC] address) (for example, 00-05-A6-05-1C-A0). You may
need this address during control processor conguration.
A label that indicates the MAC address is located on the rear or side panel of each
EXP unit.
Keep the “LAN port defaults”
text set to “no color” (to use
as an invisible text/hyperlink
marker).
8
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
00-05-A6-XX-XX-XX
MAC: 00-05-A6-XX-XX-XX
S/N: ####### E######
MAC
Address
