IPL EXP I/O Series • Hardware Features and Installation 20
Unidirectional Control and Communication Connections
IR/Serial output ports
An IPL EXP 200 can use infrared signals or unidirectional RS-232 serial signals to control various devices (up to
four per port for IR) via these ports. Set output signal type (IR or serial) during conguration. The following gure
shows wiring examples.
IR/SERIAL
SGSG SGSG
SGSG SGSG
1 2
5 6
3 4
7 8
Tx
Rx G
RELAYS
1
2
C
COM 2
Tx
Rx G
COM 1
IR/S
S
G
T
x
R
x
G
CO
M
2
2
2
T
x
R
x
G
COM
M
1
1
R
R
R
R
RE
E
E
L
L
AY
S
1
2
C
IPL EXP 200
Rear Panel
To
the IR Receiver of a
Projector, Display, or
Source Device
S
G
(-)
(+)
(-)
(+)
(+)
(-)
Two Single IR Emitters
Ground
IR Output Signal
Unidirectional
IR
IR or RS-232
Output
Ground
To a Projector,
Panel Display, or the
Wired IR Remote or
RS-232 Port of a
Source Device
IR/Serial Ports
Output options:
• IR (30 kHz to 300 kHz,
with or without carrier signals)
• Unidirectional RS-232
or

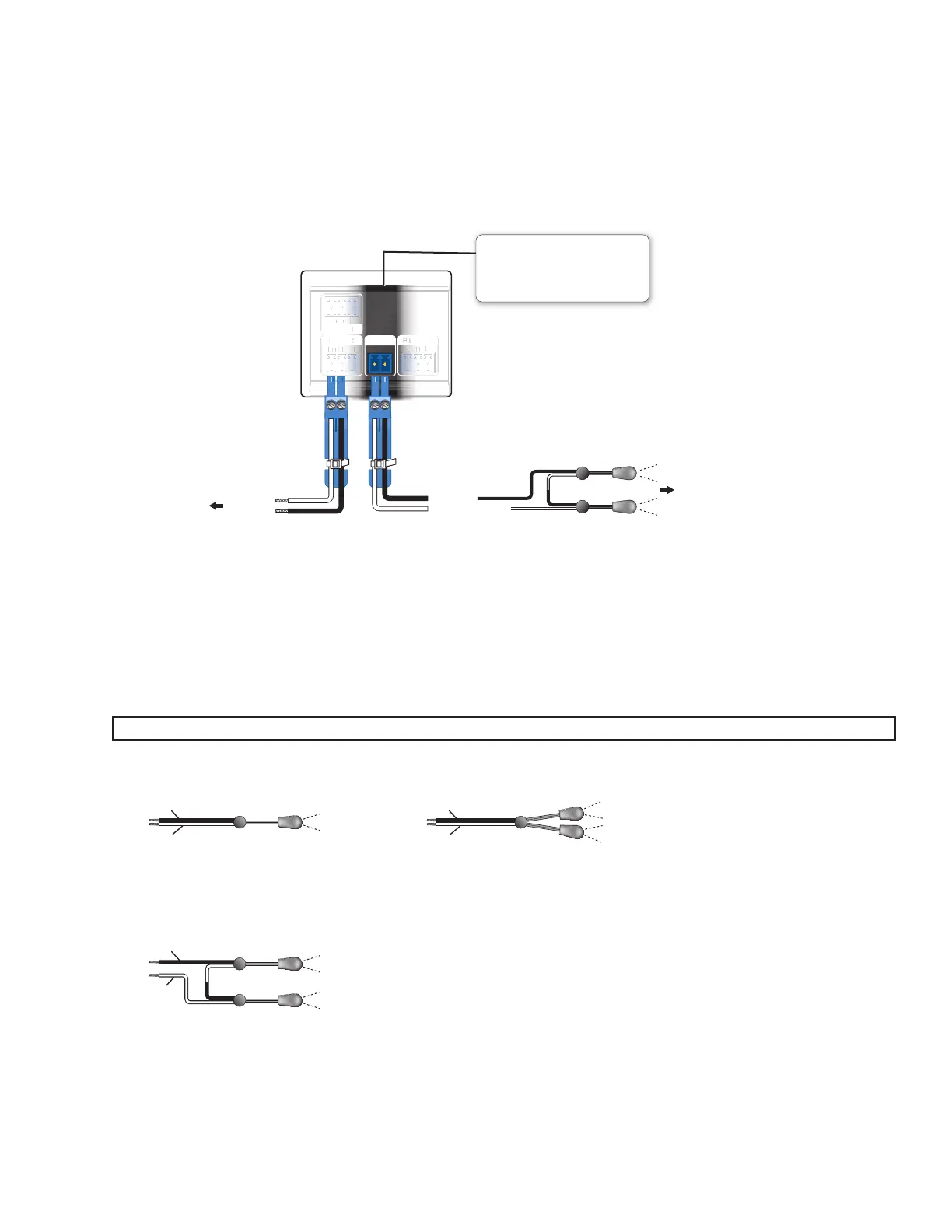

Figure 9. Wiring the IR/Serial Port
Serial control — Connect the IR/S port to the serial control receive (Rx) and ground pins of the device to be
controlled. These ports have the same serial protocol options (see page 17) as the COM ports.
IR control — Connect the IR/S port directly to the wired IR port of another device. Alternatively, insert the wires
from up to four IR Emitters into an IR port and place the heads of the emitters over or next to the IR signal pickup
windows of the devices. For wiring, see the following diagrams or the IR Emitter Installation Guide (available on
www.extron.com).
NOTE: Each emitter must be within 100 feet (30.4 meters) of the EXP for best IR control results.
Installing One Single Emitter Installing One Dual Emitter
Ground (−)
IR Signal (+)
One Single IR Emitter
Ground (−)
IR Signal (+)
Dual IR Emitter
Installing Two Single Emitters
When installing only single emitters, tie them in series as shown below.
(+)
(−)
(−)
(+)
IR Signal (+)
Ground (−)
Two Single IR Emitters
9
