FOX3SR 301 and FOX3SR311 Scaling Receivers • Operation 12
Operation
This section details the operation of the FOX3SR301 and FOX3SR311 receivers,
including:
• Front Panel Features
• Operations
• Using the On-Screen Menu System
• Front Panel Lockout (Executive Mode)
• Source Information OSD
• Reset Modes
• Configuration
• Audio Configuration
• RS-232 Insertion
Front Panel Features
FOX3 SR 301
CONFIG
INPUTS
SIGNAL
HDCP
USB HID
USB 2.0
USB
1 2
MENU
ENTER
HOST
F
FOX3 SR 311
CONFIG
INPUTS
SIGNAL
HDCP
USB HID
USB
1 2
MENU
ENTER
HOST
F
B
B
BA
A
A C
C
C D
D
D E
E
E
F
F
F

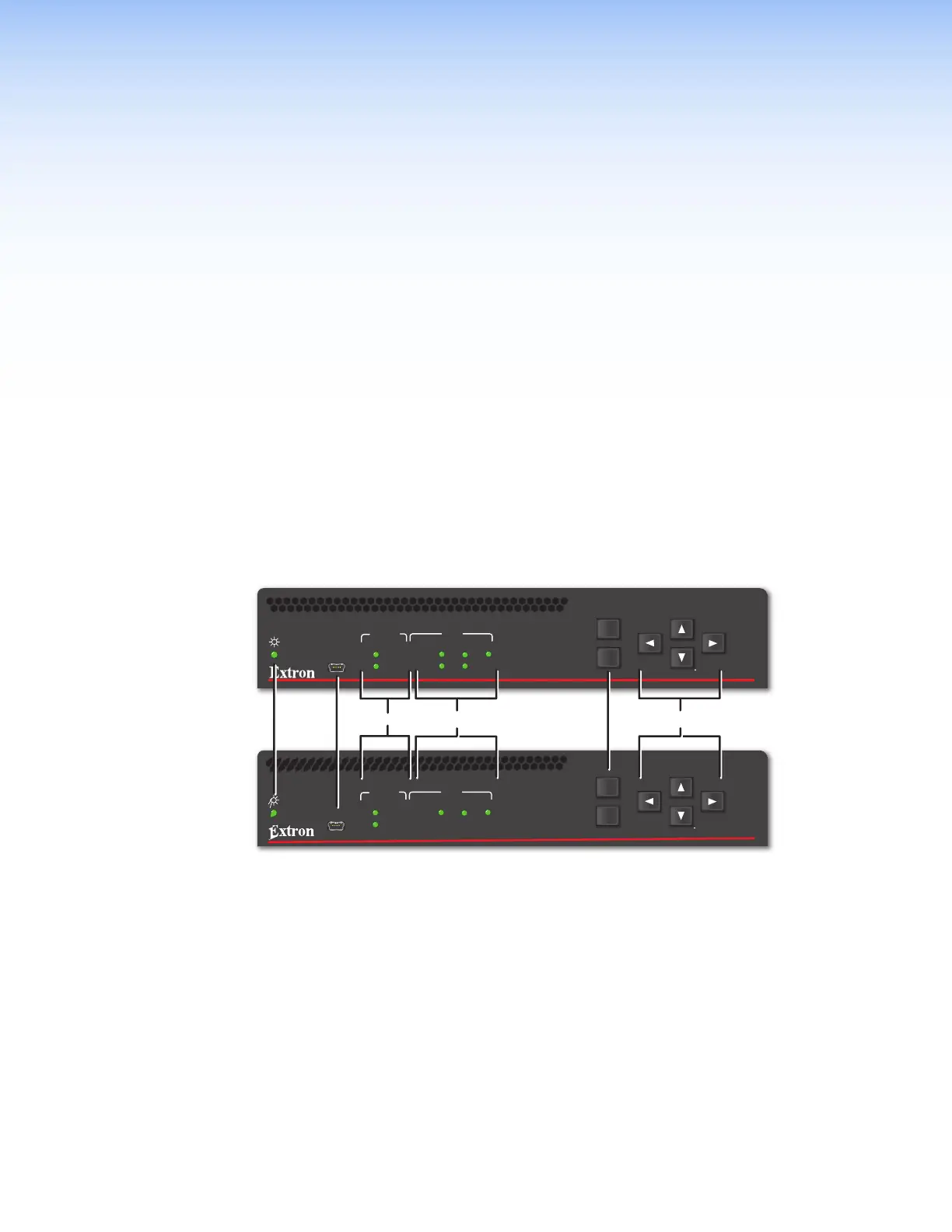

Figure 9. FOX3Scaling receivers Front Panel Features
A
Power LED — Lights when the unit is receiving power and is operational.
B
Configuration port — This USB mini-B port is used to configure the unit and to
update firmware.
C
INPUTS LEDs
• SIGNAL LED — Lights when the unit detects an input video signal.
• HDCP LED — Lights when the input signal is HDCP encrypted.
D
USB LEDs —
• USB HID Host LED — When the transmitter and receiver are connected through
the SFP port and a host device is connected to the transmitter, the LED remains lit
to indicate an active connected device.
• USB HID 1 and 2 LEDs —When an active USB peripheral device is connected to
the Devic ports on the receiver, the LED remains lit to indicate an active connected
device.
9
