FOX3SR 301 and FOX3SR311 Scaling Receivers • Installation 11
USB HID and USB 2.0 Connectors
NOTES:
• The FOX3 matrix switches the USB HID and USB 2.0 inputs and outputs
independently of the video and each USB connection.
• The USB 2.0 port is only available on the FOX3SR301 devices.
• The USB HID ports are used only for a mouse or keyboard.
• The USB 2.0 ports are used for thumb drives, cameras, keyboards, a mouse, CAC
reader, and such devices.
Transmitter
Receiver
50-60 Hz
100-240V
~
0.7A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
OUTPUTS
AUDIO
RETURN
INPUTS
CONTROL
B
OUTIN
USB 2.0
AUDIO
FOX3 SR 301
LAN
1
1
2
HDMI
DEVICES
USB HID
100 mA
500 mA
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
50-60 Hz
100-240V
~
0.7A MAX
LR
LR
RS-232
Tx Rx Tx RxG
IR
A
OUT
R
IN
INPUTS
AUDIO
RETURN
OUTPUTS
CONTROL
B
OUTIN
HDMI
LOOP OUT
USB HID
USB 2.0
AUDIO
FOX3 T 301
LAN
HOST HOST
REMOTE
RS-232
Tx Rx S5VG
3D
SYNC
SM or MM cable
USB
USB
USB
USB
USB
Laptop
Lt
Keyboard
y
Mouse
Thumb Drive
A
AABB
B

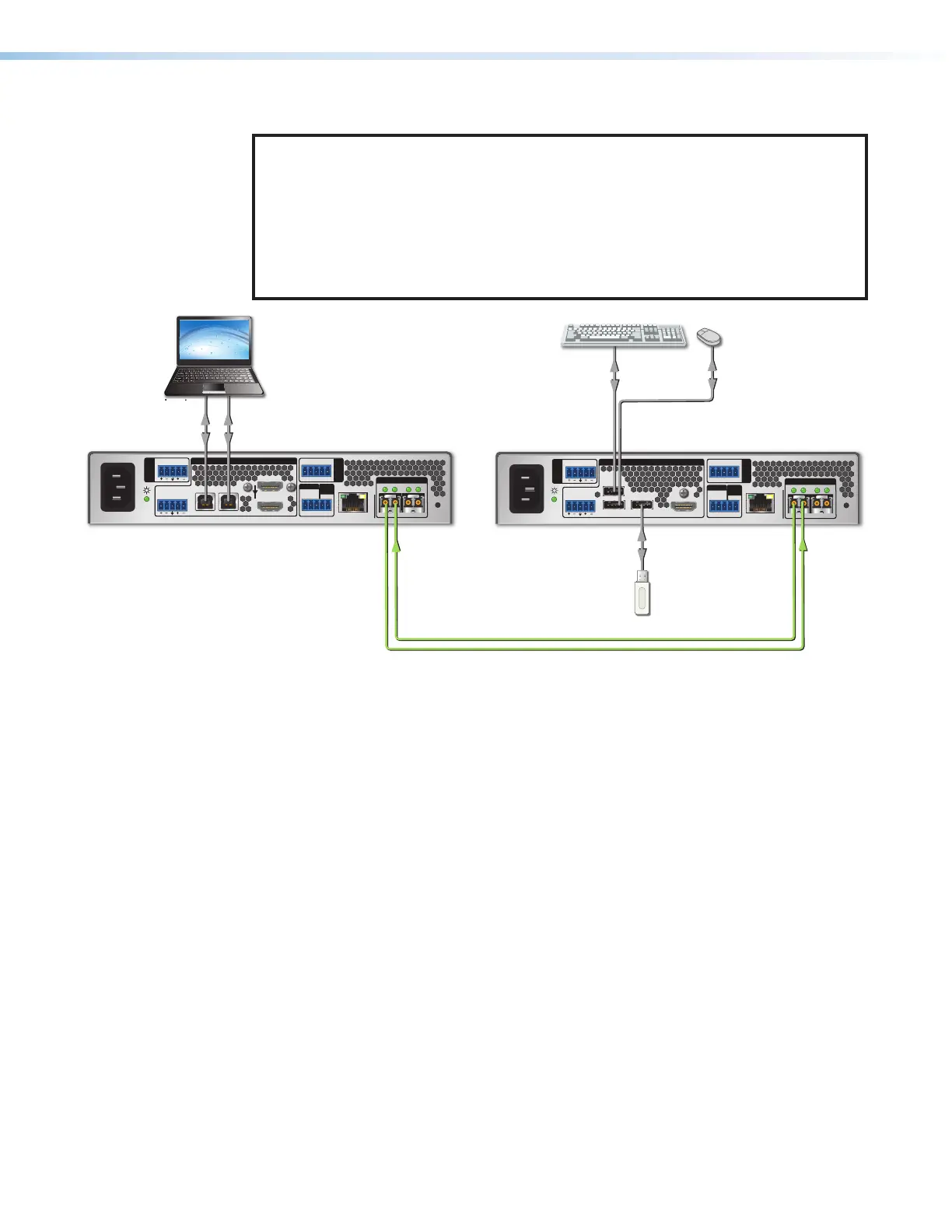

Figure 8. Peripheral USB Connections Diagram
A
USB Host ports — Connect USB type A to B cable between these USB type B ports
and the USB ports of a host.
Two separate USB cables are required: 1 for USB HID and another 1 for USB 2.0
connections.
B
USB Device ports — Connect a USB type A cable between the USB type A port and
peripherals.
Types of USB ports
• USB HID — Connect USB type A to B cables between this USB type B port and the
USB port of a host. The USB HID ports are used only for a mouse or keyboard.
• USB 2.0 (FOX3SR301 only) — Connect USB type A to B cables between this USB
type B port and the USB port of a host. The USB 2.0 ports are used for thumb drives,
cameras, keyboards, a mouse, CAC reader, and such devices.
8
