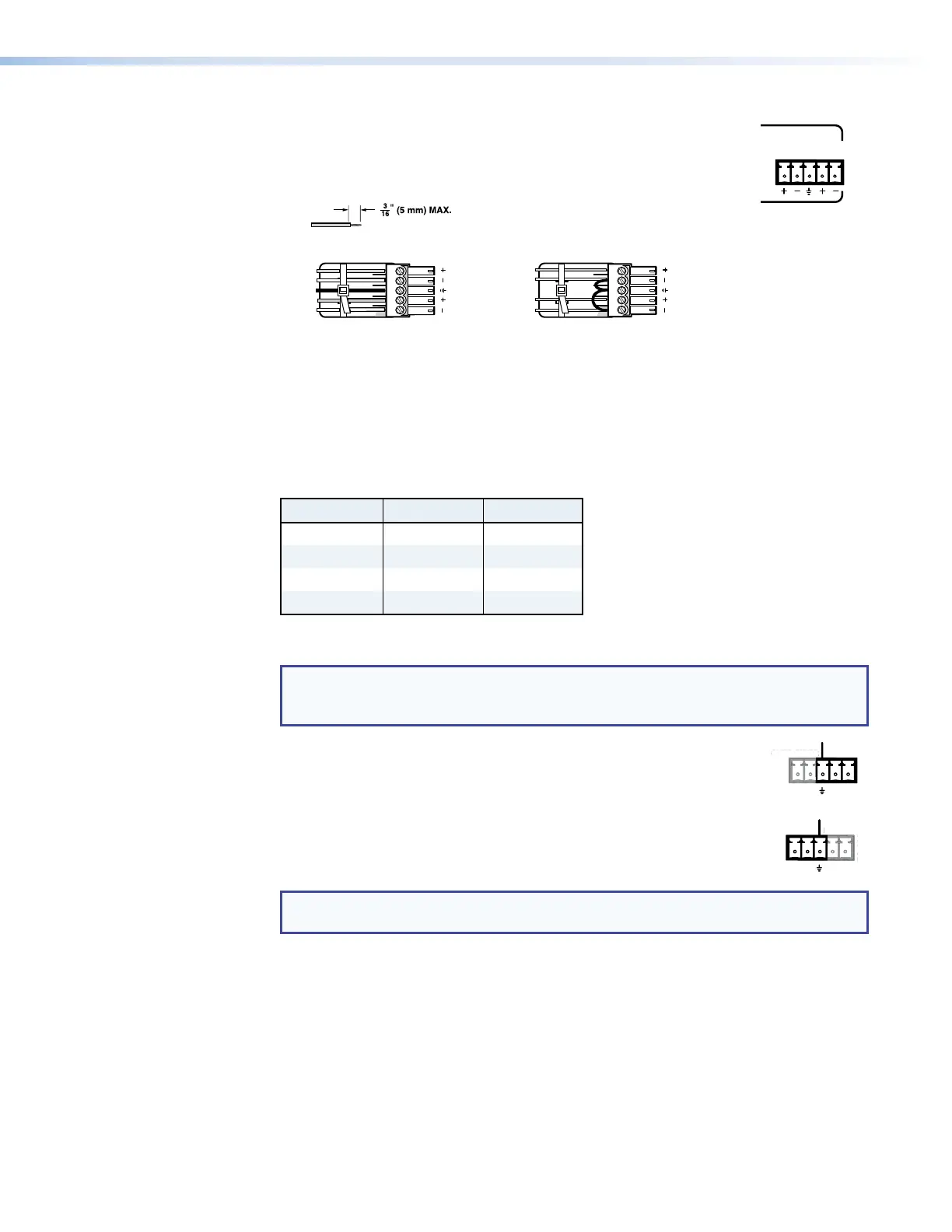

Audio connections (see figure 3 on page 5) — A 3.5 mm, 5-pole
captive screw connector for audio input and output (see the figure at
right). Input and output can be mono or stereo and can be balanced or
unbalanced, depending on the wiring connections (see figure 5).
Balanced Audio
Tip
Ring
Tip
Ring
LR
Slee
ves
Do not tin the wires!
Unbalanced Audio
Tip
Sleeve
Sleeve
Tip
LR
Figure 5. Audio Connections
See the Attention on page 6 for important information about preparing and connecting
wires to captive screw connectors.
The table below shows the initial gain differences between audio input/output connectors,
using captive screw connectors. The unbalanced output from the captive screw connector is
half (-6 dB), regardless of input.
Input Output Gain
Balanced Balanced 0 dB (unity)
Balanced Unbalanced -6 dB (half)
Unbalanced Balanced 0 dB
Unbalanced Unbalanced -6 dB
Additional adjustment of audio gain or attenuation can be made using SIS Commands (see
page 14).
NOTE: The Audio LED lights up immediately when the transmitter detects an audio
signal 35 dB below the nominal level. It remains lit until the audio signal drops below
that threshold continuously for 10 seconds.
D
RS-232 connections (see figure 3) — The Remote RS-232 connections
(see the figure at right) allow the transmitter and receiver units to be
configured using SIS Commands (see page 14) or the FOX Extender
Control Program (see page 20).
The Over Fiber RS-232 connections (see the figure at right) allow
pass-through to remote units.
For more information see RS-232 Ports on page 11.
NOTE: Over fiber RS-232 communications are via a passive pass-through only; the FOX
Tx/Rx AV units neither generate nor respond to these signals.
OVER FIBER REMOTE
RS-232
Tx Rx Tx Rx
OVER FIBER
T
x
R
x
OVER FIBER
REMOTE
RS-232
Tx Rx Tx Rx
REM
O
T
E
R
S
-232
T
x
R
x
AUDIO
LR
FOX Tx/Rx AV • Panel Features and Connections 8
