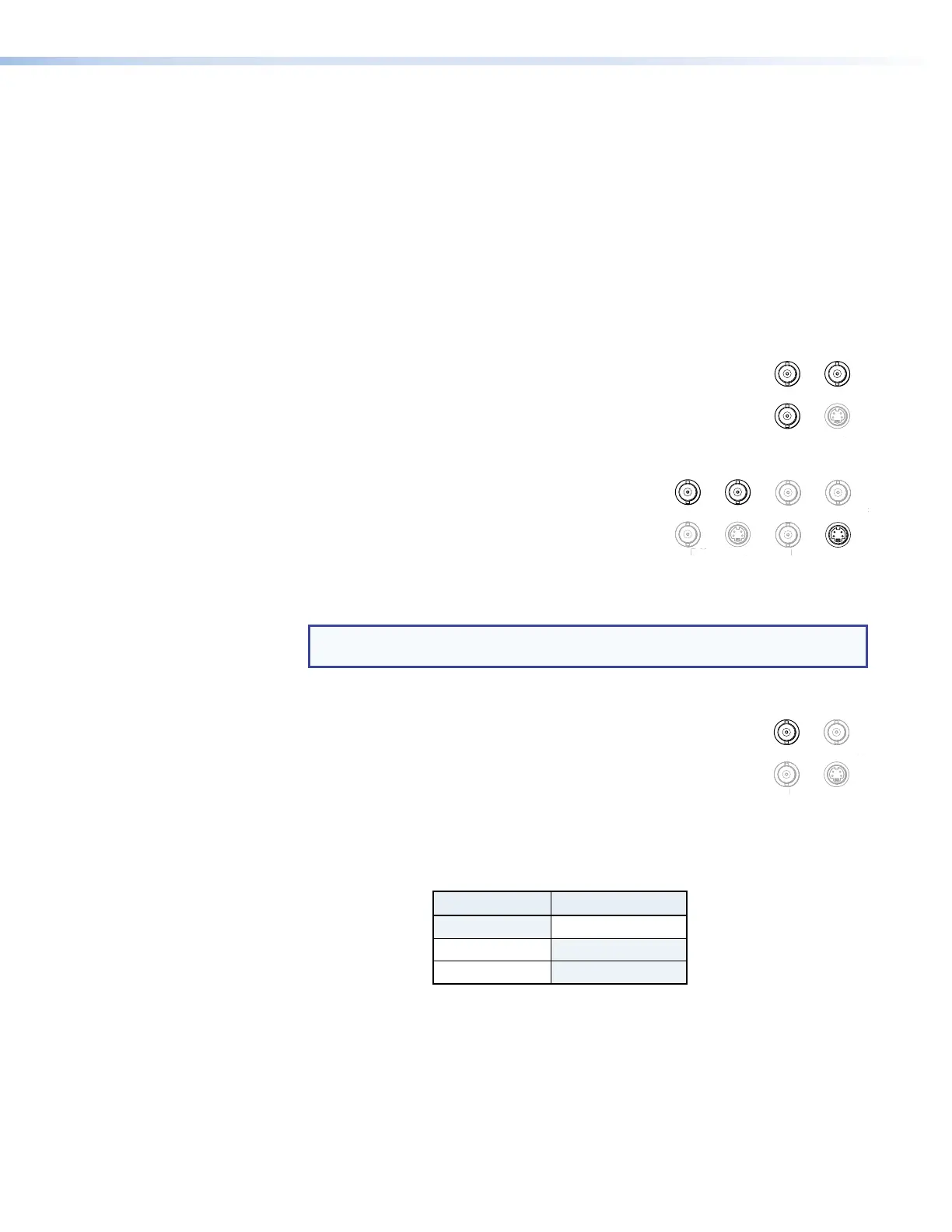

B
Video connections (see figure 3 on page 5) — Three BNC connectors and one 4-pin
mini DIN S-video connector for video input and output.
The FOX Tx/Rx AV accepts a single low resolution video signal (composite, S-video and low
resolution component video) and outputs a single low resolution video signal (composite,
S-video and low resolution component video). It is not compatible with RGB or HDTV 480p,
720p, or 1080i component video signals.
The transmitter converts incoming signals to a proprietary format and passes them along the
fiber optic cable to the FOX Rx AV. The receiver converts the signal to a format that matches
the display requirements. SIS commands are used to configure the receiver to convert
between signal formats (see Command and Response Table for SIS Commands on
page 16).
Component Signal
To input a low resolution component signal, or output a component output
signal, connect three BNC male connectors to the Y/VID, B-Y/C, and R-Y
receptacles on the back panel of the unit as shown in the figure at right.
S-video Signal
There are two alternative methods to input or output an
S-video signal:
• Connect BNC male connectors to the Y/VID and B-Y/C
receptacles on the back panel of the unit
or
• Connect a 4-pin mini DIN to the S-VID receptacle on
the back panel of the unit.
NOTE: When a signal is output using BNC connectors, an additional transcoded
S-video signal is always output from the S-VID socket of the receiver.
Composite Signal
To input or output a composite signal, use a single BNC male connector to
the Y/VID receptacle on the back panel of the unit.
When both the BNC connectors and the 4-pin mini DIN provide simultaneous video input,
the signal with the highest priority for video output is shown, highlighted in blue, in the table
below:
BNC Input Mini DIN Input
Component S-Video
S-Video S-Video
Composite S-Video
Y/VID
R-Y
S-VID
B-Y/C
S
-VID
Composite
R-
Y
B-Y
/C
Y/VID
R-Y
S-VID
B-Y/C
S
-VI
D
Component
Y/VID
R-Y S-VID
B-Y/C
S
-VID
S-video
R
-
Y
Y/VID
R-Y
S-VID
B-Y/C
Y/
VI
D
S-video
R-
Y
B-Y
/C
FOX Tx/Rx AV • Panel Features and Connections 7
