DTP T USW 333 • Installation and Operation 13
F
Auto (switch) button (see figure 9 on page 12) — The Auto button is used with the Mode button to select
auto-input switching mode (see Selecting the switch mode).
This button is a secondary function of the Input 3 button.
Status LEDs
G
Status LEDs —
• Signal LEDs (1 through 3) — Indicates that the switcher detects horizontal sync (Signal LED 1) or TMDS
clock (Signal LED 2 and Signal LED 3) on the associated input.
• HDCP LEDs (2 and 3) — Indicates that the input signal is HDCP-encrypted.
Front Panel Operations
The following paragraphs detail the power up process and provide sample procedures for switching inputs,
changing between normal and auto-input switching mode, and toggling executive mode on and off.
Power
Power is automatically applied when the power cord is connected to an AC source. When AC power is applied,
the switcher performs a self-test that blinks the front panel LEDs during the test. An error-free power up self-test
sequence leaves the Auto Switch and Input LEDs on or off in the same configuration as they were when power
was last removed.
If an error occurs during the self-test, the switcher locks up and does not operate. If the switcher locks up on
power-up, call the Extron S3 Sales & Technical Support Hotline. See the Extron website for the nearest Extron
office.
Plug in all system components and turn on the input devices (such as Blu-Ray players and computers) and the
output devices. Set the input devices to output video using the operating instructions of that device. Select an
input. The image should appear on the screen. If no image appears, see Troubleshooting — If No Image
Appears on page 14.
Switching inputs
Select an input for transmission to the receiver using the front panel buttons as follows:
1. Select the desired input by pressing the associated input button (see figure 10).
1
23
MODE
NORMAL
AUTO
Press the button.
The LED lights
green.

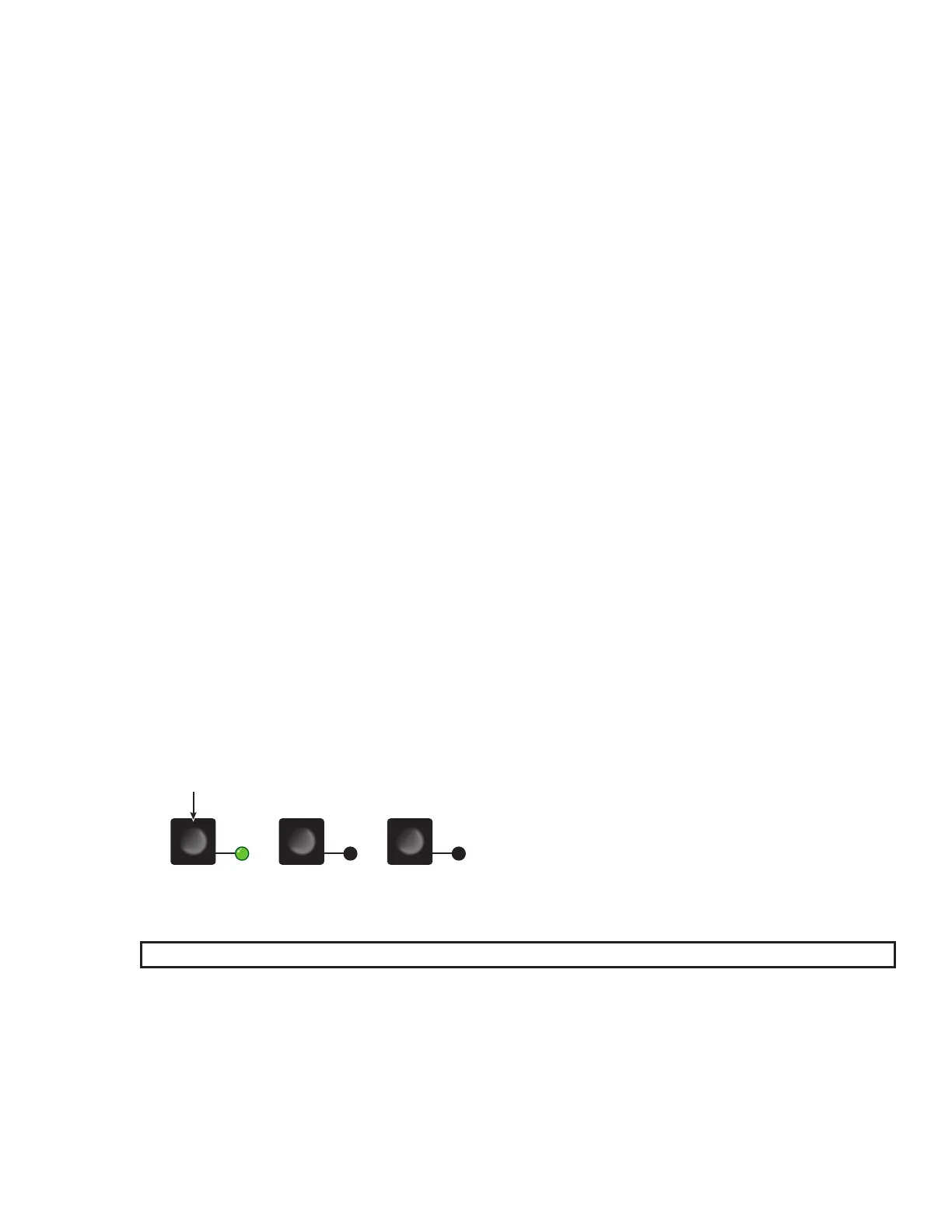

Figure 10. Selecting an Input
2. Observe that the LED for the selected input lights.
NOTE: The switcher must be in normal (manual) mode.
An input can also be selected using an RS-232 or USB device or a contact closure device (see Remote Control
starting on page 15).
10
