DTP T USW 333 • Installation and Operation 14
Selecting the switch mode
NOTE: In the auto-input switching mode available from the front panel, the switcher selects the highest
numbered input with a sync signal present. See the SIS command Front panel mode on page 18 to
congure auto-input switching low mode, which selects the lowest numbered input.
Turn auto-input switching mode on and off as follows:
1. Press and hold the Mode (Input 1) button and the button for the desired mode for approximately 5 seconds
(see figure 11):
• Auto (Input 3) — The Auto Switch LED lights.
• Normal (Input 2) — The Auto Switch Active LED goes off.
1 23
MODE
NORMAL
AUTO
AUTO
SWITCH
Press and HOLD the Mode button
and either the Auto or Normal button.
Release the buttons.
A
uto Switch lights (auto)
or goes out (normal).
5
seconds

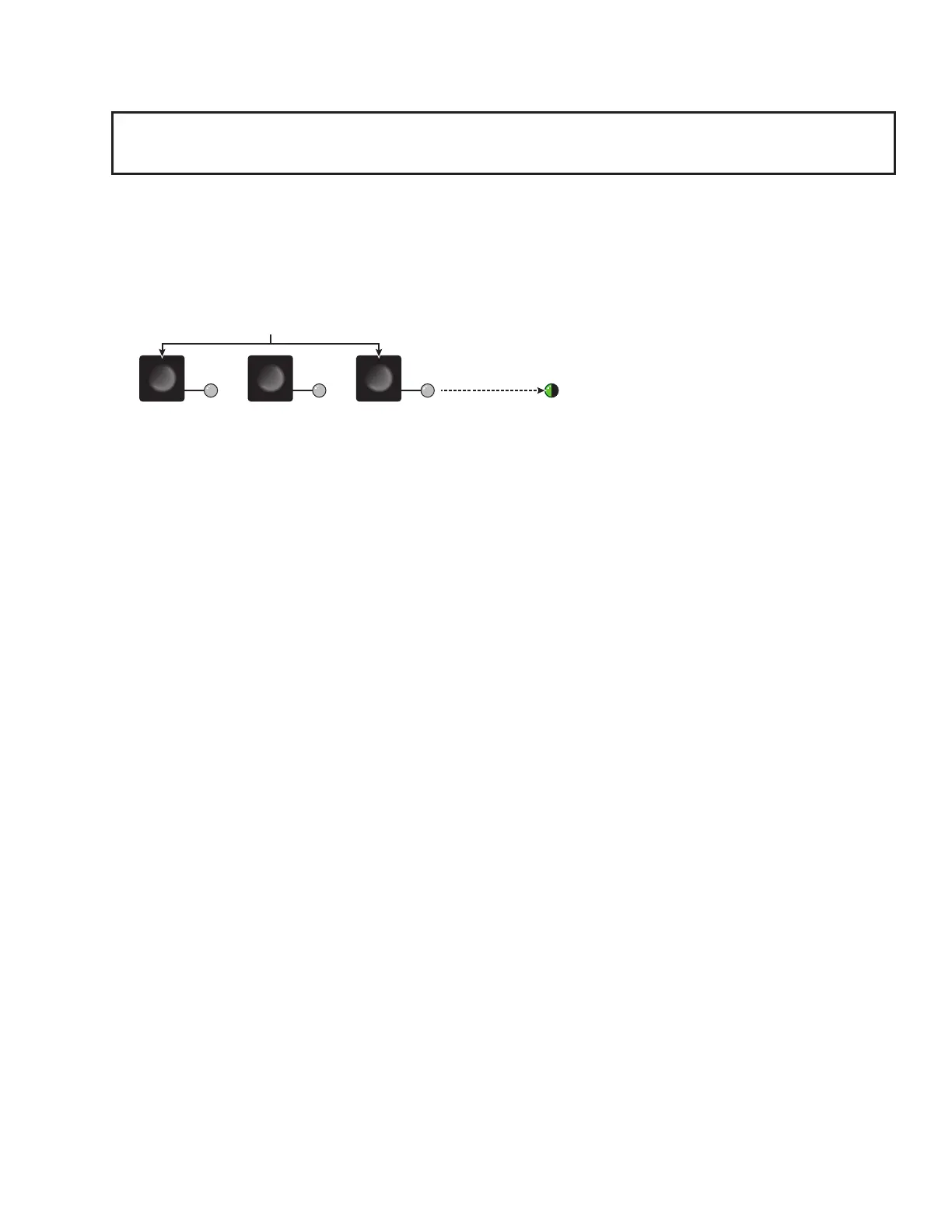

Figure 11. Selecting a Mode
2. Release the buttons.
Front panel security lockout (Executive mode)
The switcher has a front panel lock feature that locks the front panel. If front panel input selections are attempted
when the panel is locked, all front panel LEDs blink three times.
Toggle the front panel lock on and off as follows:
1. Push and hold the Input 1, Input 2, and Input 3 buttons simultaneously for 5 seconds.
All front panel LEDs blink three times.
2. Release the buttons.
When the front panel is locked, contact closure, USB, and RS-232 control are still available.
Reset
Use the recessed rear panel Reset button to reset to default settings as follows:
1. Press and hold the Reset button for approximately 6 seconds. All front panel LEDs cycle.
2. Release the button. This reset is the equivalent of issuing the
E
ZXXX
}
SIS command (see Reset on
page 20).
Troubleshooting — If No Image Appears
1. Ensure that all devices are plugged in and powered on. The switcher is receiving power if one of the input
LEDs is lit.
2. Ensure an active input is selected on the switcher or that the switcher is in auto-input switching mode.
3. Ensure that the proper signal format is supplied.
4. Check the cabling and make corrections as necessary.
5. Call the Extron S3 Sales & Technical Support Hotline if necessary (see the Extron website for the nearest
Extron office).
