8S RS232/422/485 PCI/PCIe Expansion Module
5
Pin 2:
It is reserved to enable fast RS485 2-wire mode (when ON) only, it is used for
the future expansion only. Leave it at OFF now.
Pin 3:
It is unconnected.
Pin 4:
It enables RS485 (RX+, RX-) Terminator (when ON).

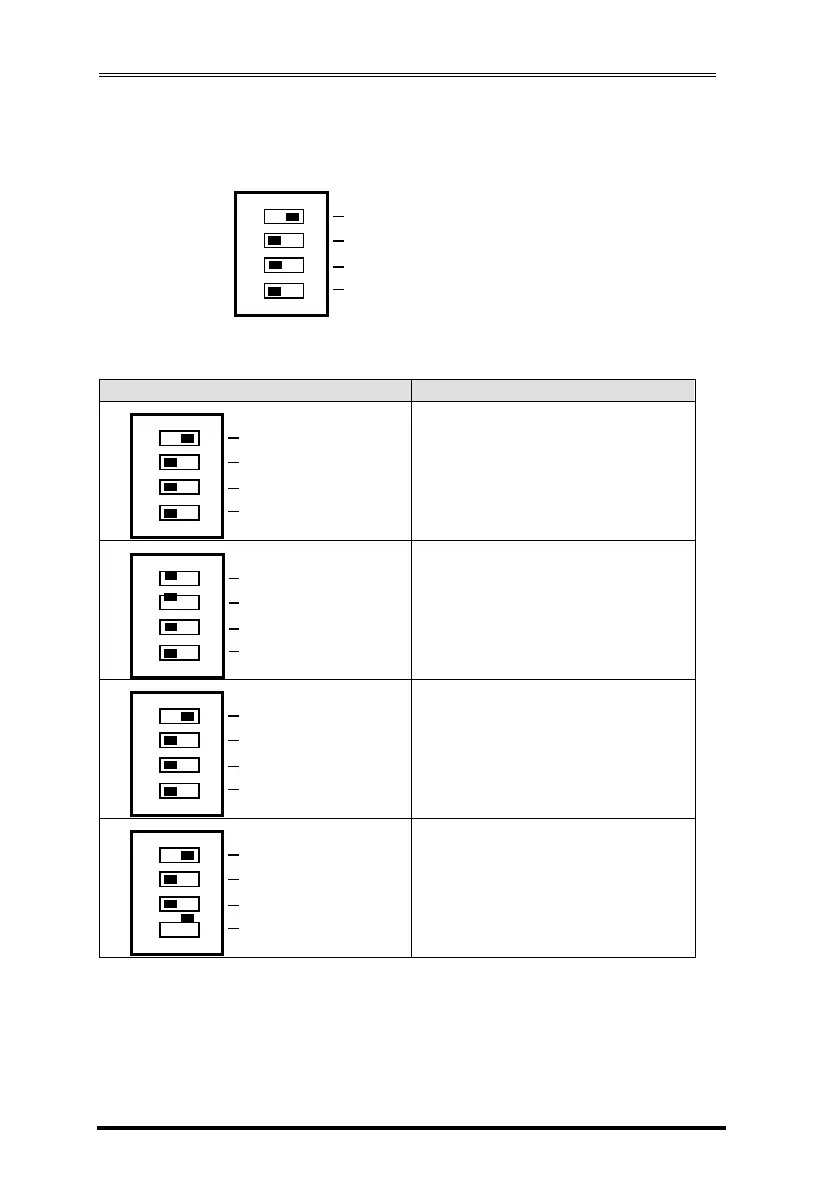

Mode Setting Table:
Switch Settings
Description
RS485 2-wire mode
(Default)
RS485 4-wire, RS422
mode
RX+/RX- Terminator is
Disabled
(Default)
RX+/RX- Terminator is Enabled
ON
1 2 3 4
485-2W
FAST_B
NC
TERM
ON
1 2 3 4
485-2W
FAST_B
NC
TERM
ON
1 2 3 4
485-2W
FAST_B
NC
TERM
ON
1 2 3 4
485-2W
FAST_B
NC
TERM
ON
1 2 3 4
485-2W
FAST_B
NC
TERM
