8S RS232/422/485 PCI/PCIe Expansion Module
4
⚫

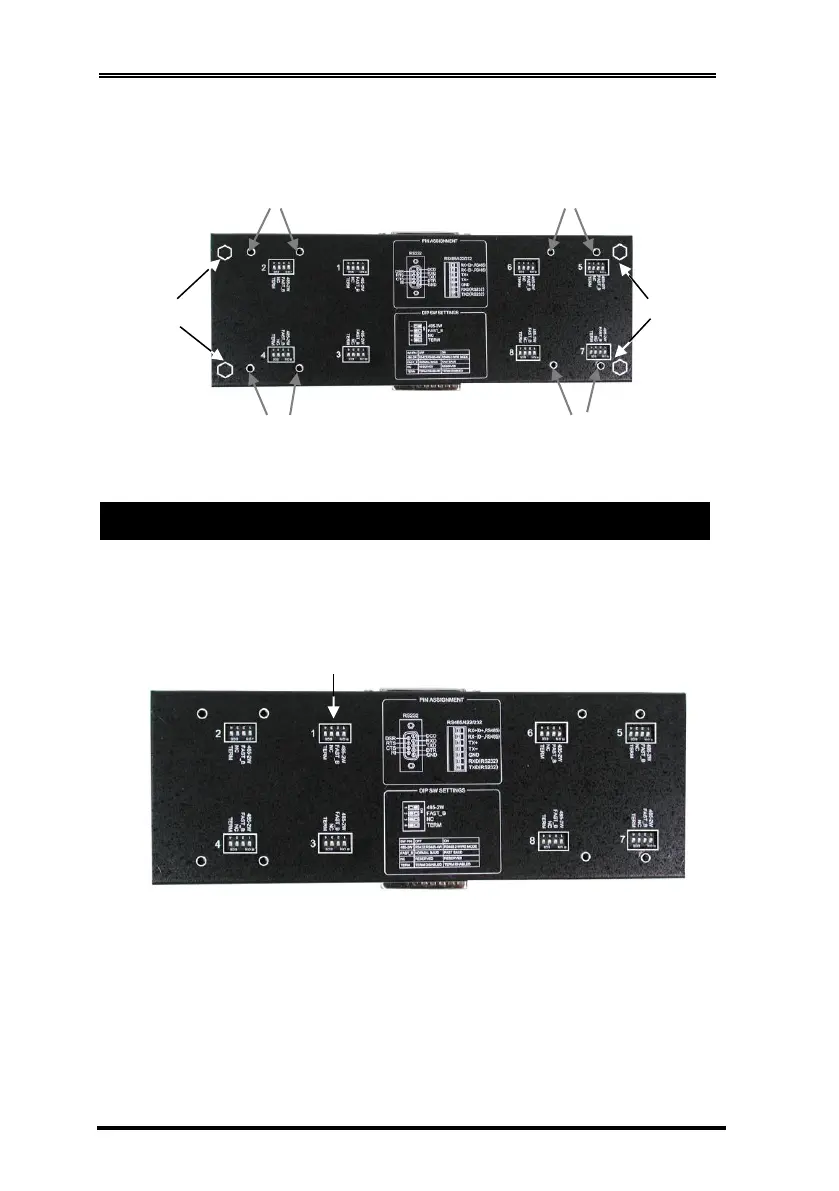

Mounting Kit and Rubber Bumpers:
There are 8 4-pin DIP switches marked “1” to “8” on the back side of the Module box for
Port 1 to Port 8 respectively. They are used to set RS422 and RS485 modes and
configure terminators.
Pin 1:
To enable RS485 2-wire mode (when ON), set it OFF for either RS485 4-wire or
RS422 mode. The switch is nothing about the RS232 mode. The RS232 mode
operates with any DIP switch settings.
4. Mode and Terminator Setting Switches
422, 485 Mode and Terminator Switches (1~8 for each port respectively)
Install
Rubber
bumpers
here
Install
Rubber
bumpers
here
Install Mounting
Bracket here
Install Mounting
Bracket here
Install Mounting
Bracket here
Install Mounting
Bracket here
