Appendix E Extended Remote Connections
BD600+ Profanity Delay Appendix E Connections Page 49
Document Version 2.3
The BD600E+ serial input is wired to connect to a PC serial output, while its output is wired to look
like a PC serial output. RxData and the handshake lines (CTS, RTS etc) are not delayed or used by the
BD600+ and need not be connected in most cases – only TxData and Gnd will be required for many
applications..

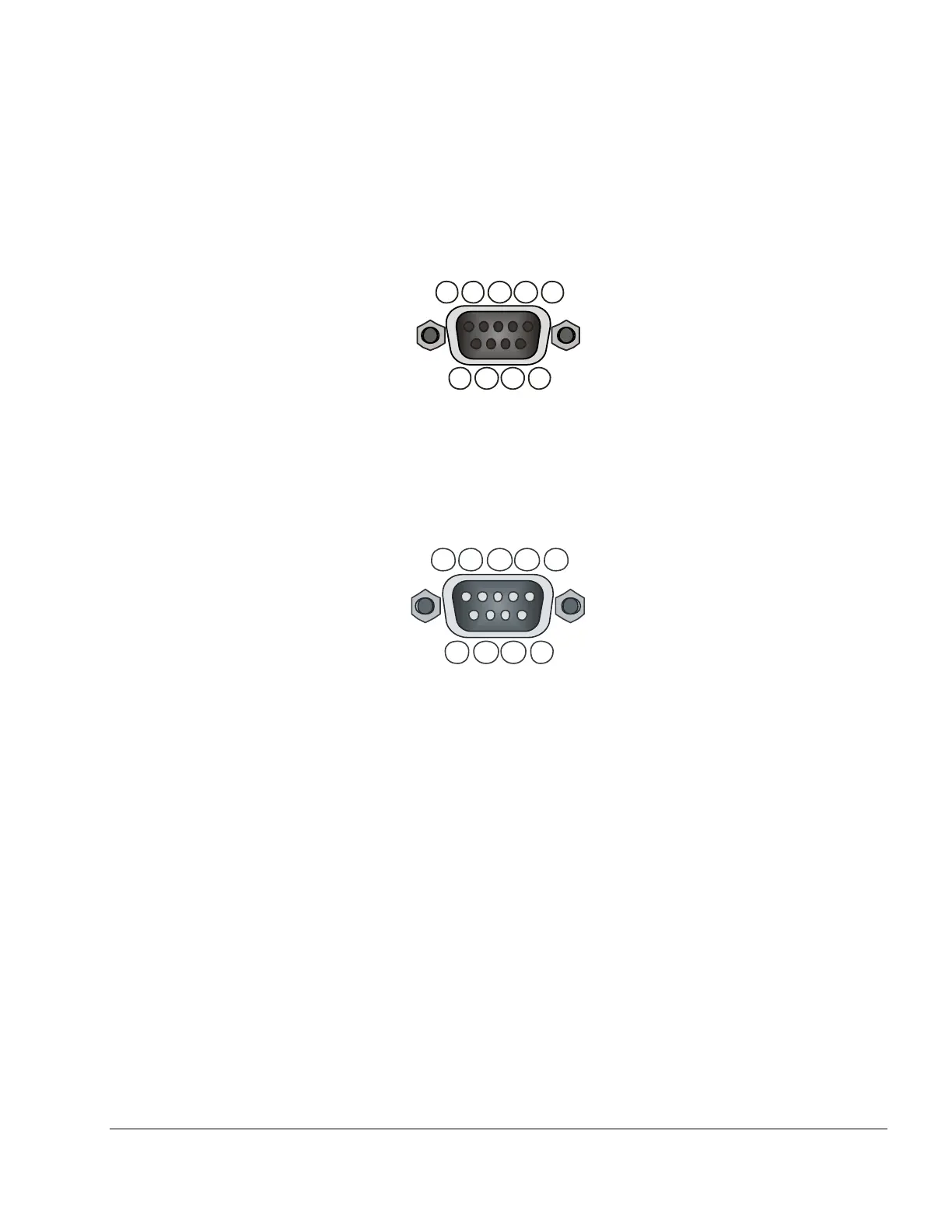

Serial Delay Inputs
Pin 1 DCD (out)
Pin 2 RxData (out)
Pin 3 TxData (in)
Pin 4 no connection
Pin 5 Gnd
Pin 6 DSR (out)
Pin 7 RTS (in)
Pin 8 CTS (out)
Pin 9 RI (out)
Serial Delay Outputs
Pin 1 DCD (in)
Pin 2 RxData (in)
Pin 3 TxData (out)
Pin 4 DTR (out)
Pin 5 Gnd
Pin 6 no connection
Pin 7 RTS (out)
Pin 8 CTS (in)
Pin 9 RI (in)
1235 4
69 78
1 2 3 54
6 97 8
