EN - 14
Points that must be checked during
fixed gas connection assembly
The method used to assemble a fixed
gas connection (gas connection made
by threads, e.g. a nut) varies according
to the country you are in. The most
common parts for your country will be
supplied with your appliance. Any other
parts required can be supplied as spare
parts.
During connection, always keep the nut
on the gas manifold fixed while rotating
the counter-part. Use appropriately-
sized spanners for a safe connection.
For surfaces between different
components always use the seals
provided in the gas conversion kit.
The seals used during connection
should also be approved to be used in
gas connections. Do not use plumbing
seals for gas connections.
Remember that this appliance is ready
to be connected to the gas supply in the
country for which it has been produced.
The main country of destination is
marked on the rear cover of the
appliance. If you need to use it in
another country, any
of the connections in the figure below
may be required. In such a case, contact
local authorities to learn the correct gas
connection.
Natural Gas(the appliance test point is
located at the regulator)
The supplied regulator must be fitted to
the appliance inlet connection. Gas
pressure
must be adjusted to 1.0 kPa when
approximately 50% of the burners are on
high flame.
Universal LPG(the appliance test point is
located at the injector)
Gas pressure must be checked to confirm
the appliance operating pressure is 2.75
kPa, the appliance test point is the Semi-
Rapid burner injector as shown below.

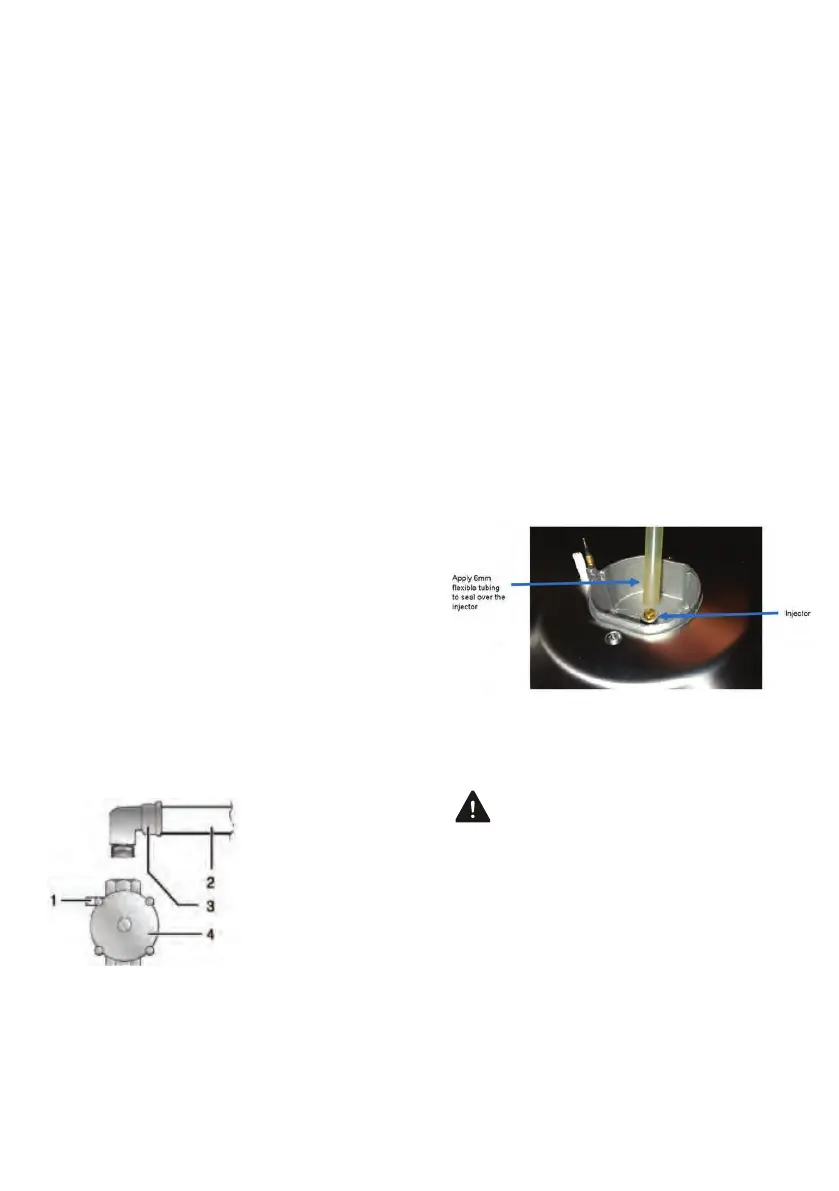

1 Test Point location
2 Gas inlet pipe
3 Elbow
4 Regulator
The Cooker must be installed and
maintained by a suitably qualified gas
registered technician in accordance with
current safety legislation.
WARNING: Do not use a naked flame
to check for gas leaks.
2.4 Gas Conversion (if available)
Conversion to different gas types to be completed by
an authorised serice technician.
Your appliance is designed to be operated
with LPG/NG gas. The gas burners can be
adapted to different types of gas, by
replacing the corresponding injectors and
adjusting the minimum flame length
suitable to the gas in use. For this purpose,
the following steps should be performed.
1. Disconnect power.
2. Light the auxiliary burner and set to high
flame. Ensure all other burners are off.
3. Zero manometer, then apply flexible
tubing to seal over the Semi-Rapid burner
injector, hold securely in place and check
the gas pressure by pressing the
corresponding burner control knob in, then
turning to high flame position.
4. If the pressure is 2.75 kPa, reassemble
the burner and perform the final checks as
per this instruction manual.
5. If the pressure is not 2.75 kPa,
disconnect the appliance and check/adjust/
replace the LPG cylinder regulator(s) as
appropriate in accordance with AS/NZS
5601.
Patent 2015101170. For enquires contact
Gas Approval Consulting Pty Ltd
Glen Dimplex Australia licence 043 for
AGA 8792 G
