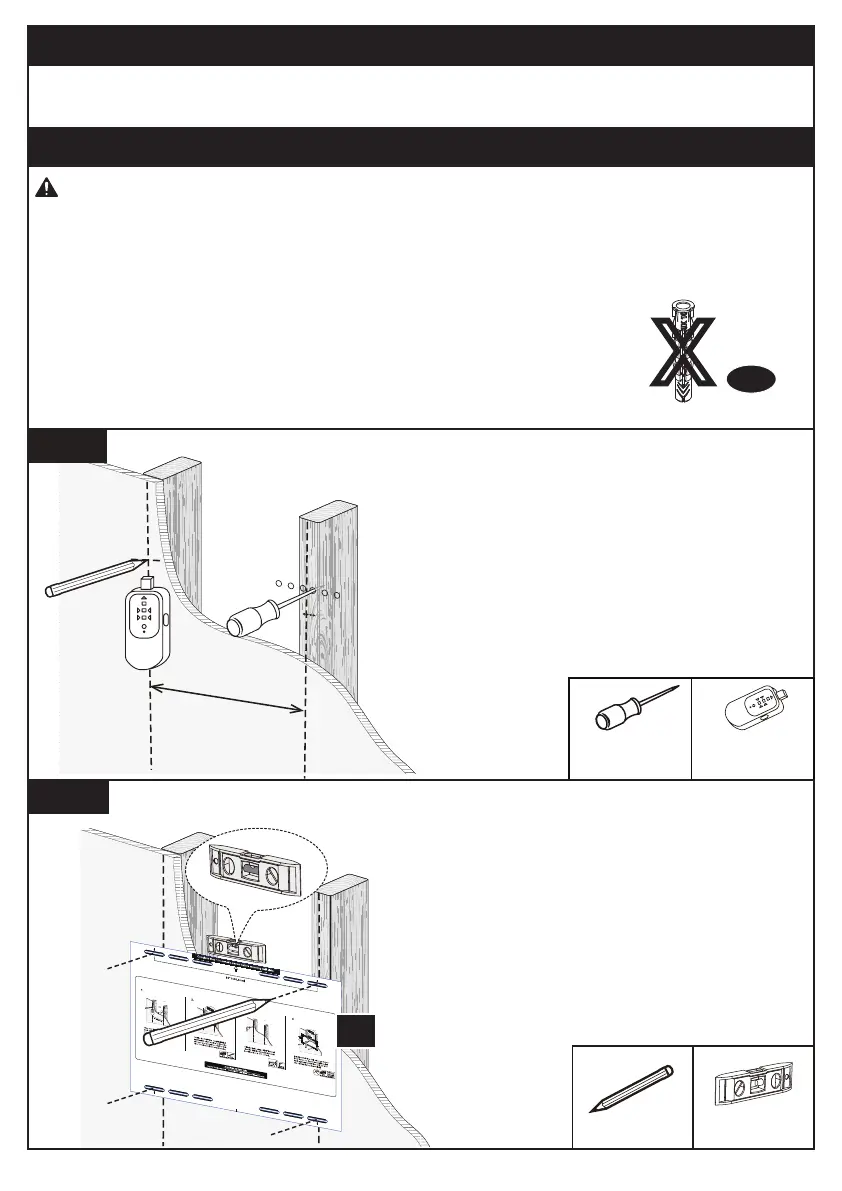

Step 2 Attach the Arm Assembly / Wall Plate to the Wall
Step 2A Wood Stud Option
For wood stud installation, follow STEP 2A.
For concrete installation, follow STEP 2B.
WARNING:
Wall
Anchor
X
A2
● DO NOT use a drill for tightening the Lag Screws [A1]! Only use a Socket Wrench.
● To avoid potential personal injury or property damage, DO NOT over-tighten the
Lag Screws [A1]. Tighten the Lag Screws [A1] only until they are pulled firmly
against the Wall Plate [02] and the wall.
● DO NOT USE THE ANCHOR [A2] FOR THIS STEP.
● Ensure the Wall Plate [02] is securely fastened to the wall before
continuing to the next step.
● Nominal wood stud size: Should be 2” x 4” (51mm x 102mm).
● Stud center must be verified.
Pencil
(Not Included)
Level
(Not Included)
Position the Wall Plate Template
[03] at your desired height and line up
the holes with your stud center line.
Level the Wall Plate Template [03] and
mark the holes.
2A-2
2A-1
Use a Stud Finder to locate wood
studs or use an Awl to verify the
edges. Mark the edge and center
locations.
Awl
(Not lncluded)
Stud Finder
(Not lncluded)
02 03 04 05 06 07 08 09 10 11 12 13 14
03
