BrightEye 30 Audio ADC and DAC, Bi-directional

BrightEye-12

Ch 1/2 and Ch 3/4 VU Indicators

These indicators provide information about the level of the analog outputs on

these channels. More detailed indicators are available through the BrightEye

Control application.

Ch 1/2 and Ch 3/4 Gain Adjustment Indicators

These controls allow for quick adjustment of Gain level for these two channel

pairs. For independent channel adjustment, and other controls, use the BrightEye

Control application.

USING THE BRIGHTEYE CONTROL APPLICATION

The BrightEye PC and BrightEye Mac applications included on CD-ROM are

designed to allow you to configure and control the BrightEye 30 from a personal

computer. Installation and instructions for using this software application are

given in the PDF manual on disk.

If the BrightEye 30 is connected to a computer running this software, the

following menus are available for controlling and monitoring the unit.

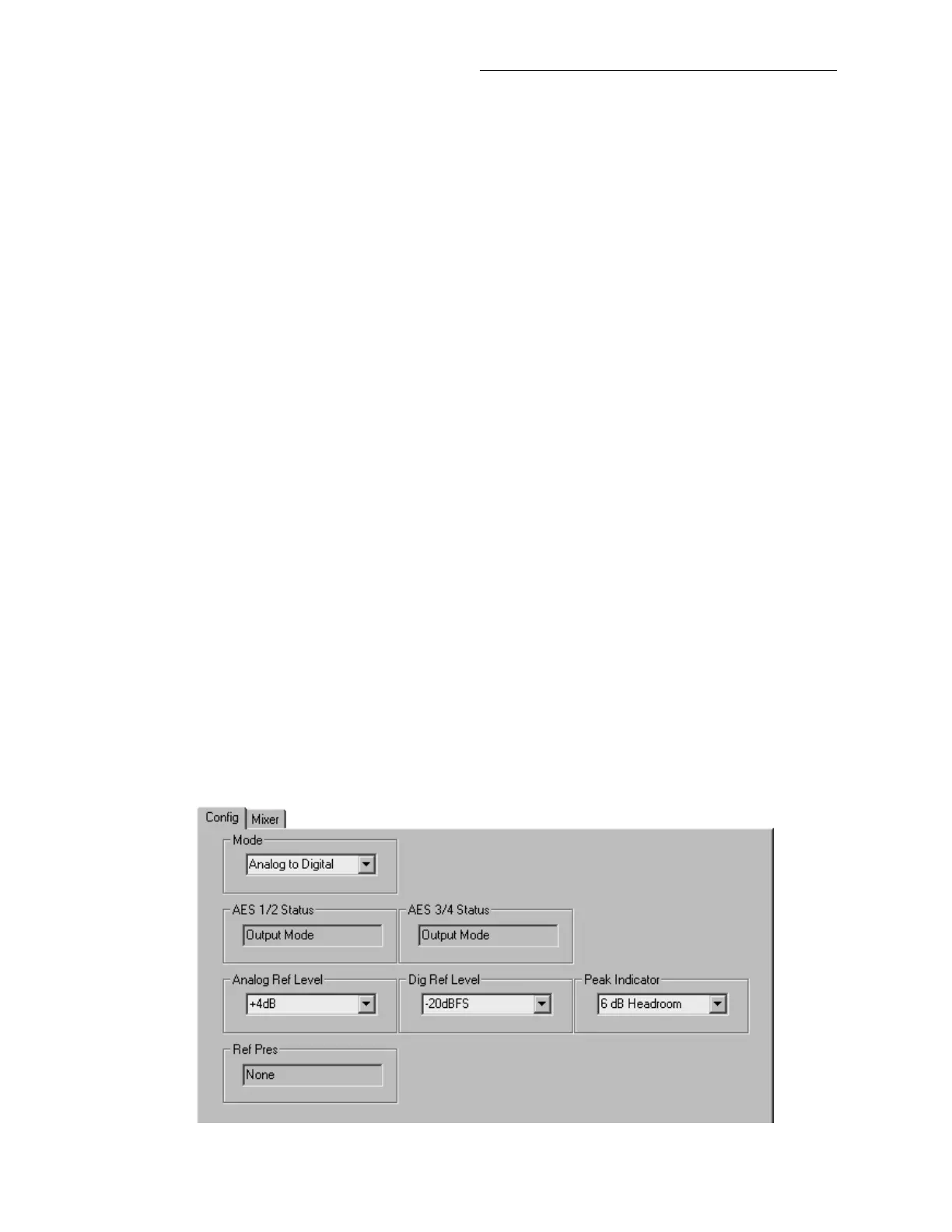

Config

• Mode – select device conversion mode. This pulldown lets you choose

between: Analog to Digital, Digital to Analog, Bi-Directional, and

Sample Rate Convert.

• AES 1/2 and AES 3/4 Status – these controls indicate the status/behavior

of the AES I/O connections. They show: No Input, Audio Present, Data

Present, Input Mode, or Output Mode.

• Analog Ref Level– selects analog output reference level for input and

output. This pulldown lets you chose between: -10 dBu or +4 dBu.

• Dig Ref Level – selects the digital reference level. This pulldown lets you

choose between: -20 dBFS or -18 dBFS.

• Peak Indicator – selects the amount of headroom to use in determining

peak levels. This pulldown lets you chose between: Clipping, 2 dB
