Headroom, 4 dB Headroom, 6 dB Headroom, 8 dB Headroom, or 10

dB Headroom.

• Ref Pres – indicates the status of the reference input. This indicator shows:

None, 525 Unlocked, 625 Unlocked, AES Unlocked, WClk Unlocked,

525 Lock, 625 Lock, AES Lock, or WClk Lock.

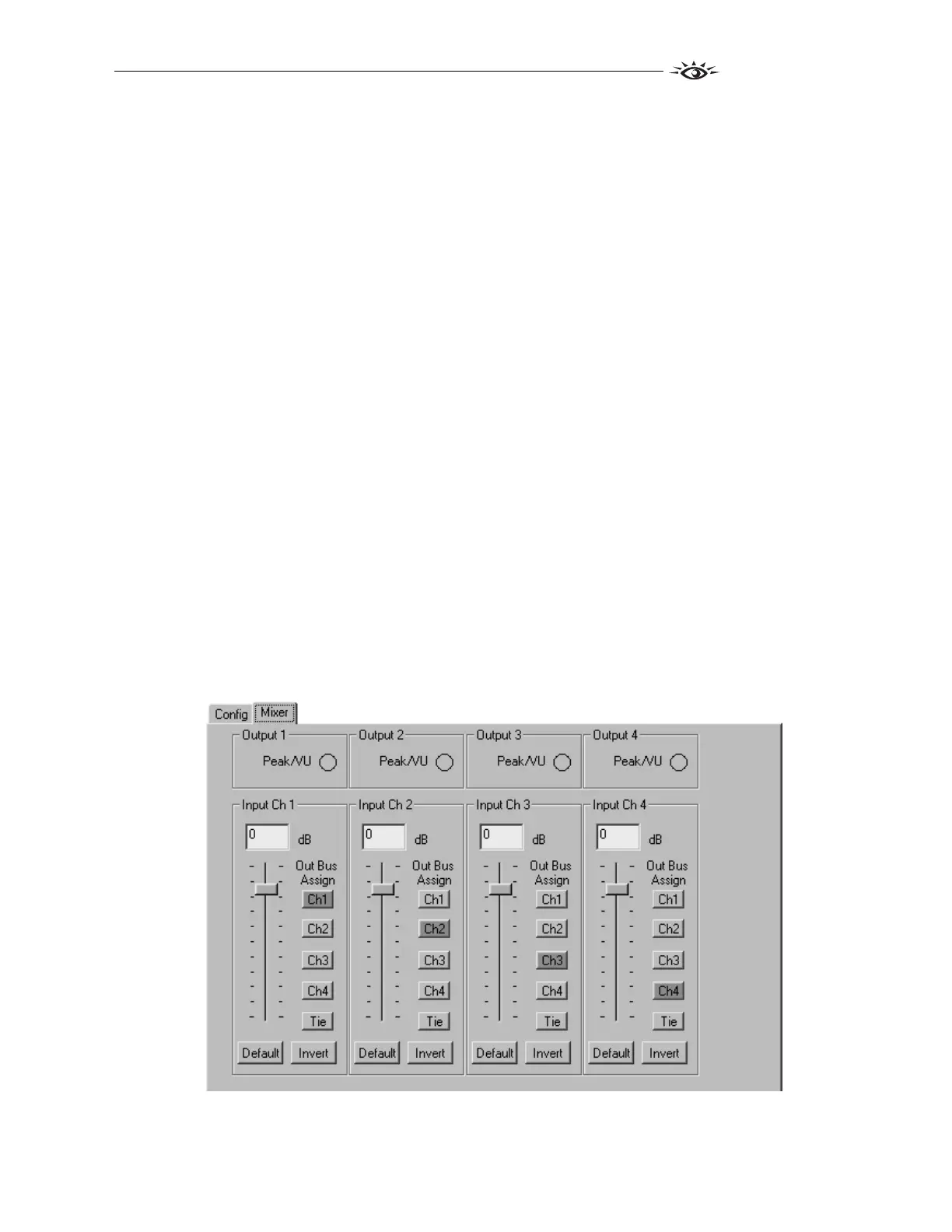

Mixer

• Outputs 1-4 – provides peak/VU status, with the same methodology as the

front panel VU indicators, but on a per channel basis, rather than per

channel pair. Peak/VU indicators illuminate red when the audio level on

that channel exceeds the headroom level set by the user (with the Peak

Indicator control.) Additionally, the VU indicator illuminates orange when

the output is above 0 VU, illuminates green when the output is above -20

VU, and doesn’t illuminate when the output is below -20 VU.

• Inputs Ch 1-4 – these controls provide mixing and output level control for

AES channels 1 to 4 of the selected AES group. The text field at the top of

the control indicates the amount of gain applied to the channel in dB. The

gain level can be adjusted by moving the vertical slider control, or entering

a desired level directly in the field (from -70 dB to +12 dB.) On the right-

hand side of the control are Output Bus Assign buttons. These buttons

control which analog output channel the AES channels are mapped to. It is

possible to map an Input channel to anywhere from zero to four output

channels.

The Tie function is used for stereo operation where gain of a pair of

channels is usually desired to be the same.

The Default button resets the gain to unity (0 dB).

The Invert button allows inversion of a channel to permit phase correction.
