BrightEye-5

OPERATION

Control and operation of the BrightEye 16 converter is performed from the front

panel or with the BrightEye Control application.

Some control settings are only available with BrightEye PC or BrightEye Mac. These

parameters cannot be monitored or controlled with the front panel.

Front Panel Controls and Indicators

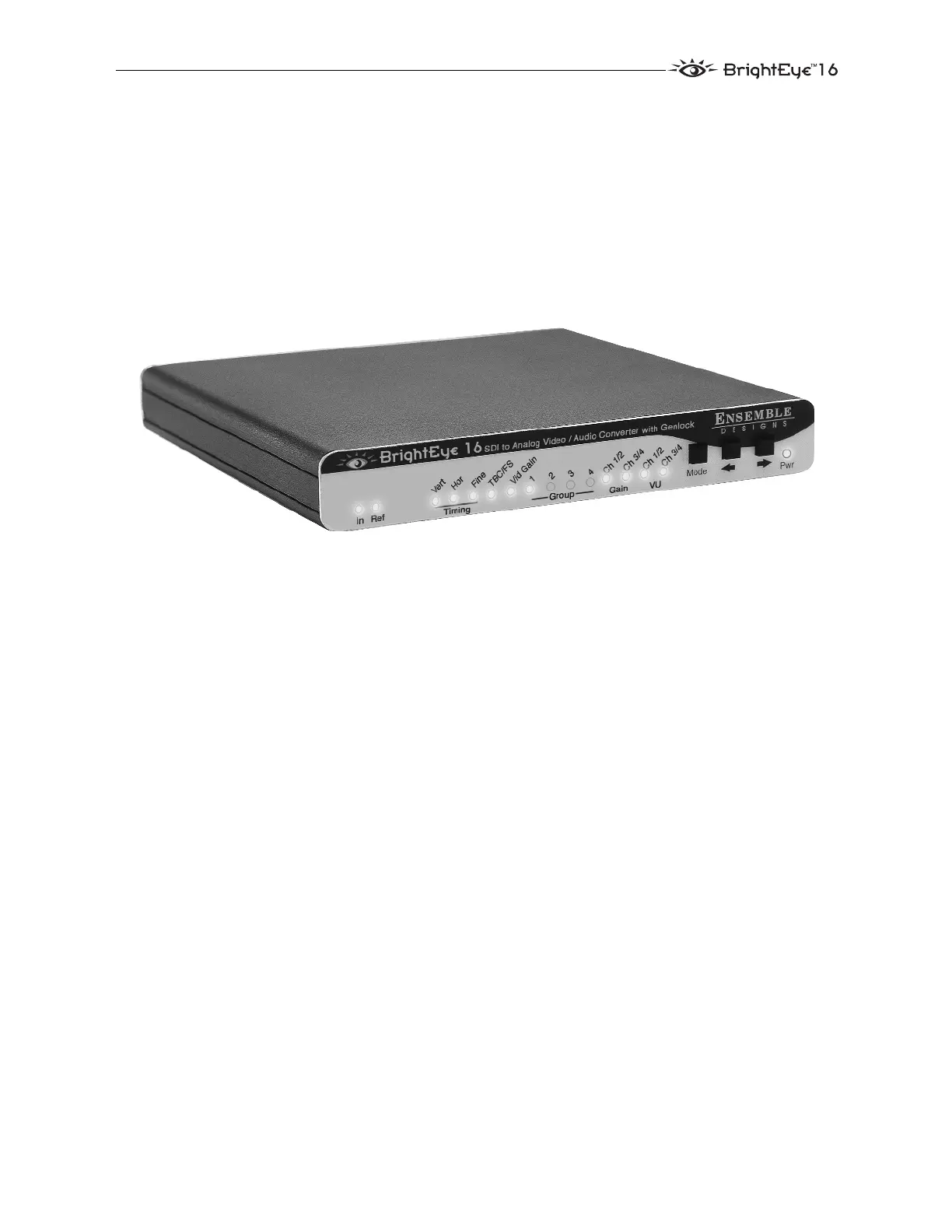

The front panel of the converter, shown in the figure below, provides status indi-

cators and control over ti and gain.

Status Indicators

The following status indicators are provided on the front panel:

Illuminates green when an input for is detected on the SDI In BNC

connector.

Ref (Reference)

Illuminates green when a valid reference is detected on the Ref In BNC

connector.

Group

The group (1, 2, 3, or 4) currently selected for disembedding from the SDI

output is illuminated green.

Ch 1/2 and Ch 3/4

VU output level and the status of the Gain adjustment for each of these

channel pairs is indicated by the state the VU and Gain indicators. The VU

indicator illuminates red when the audio level exceeds the headroom level

set by the user (with the Peak Indicator control in BrightEye PC or Mac.)

Additionally, the VU indicator illuminates orange when the output is above

0 VU, illuminates green when the output is above -20 VU, and doesn’t illu-

minate when the output is below -20 VU.

NOTE:

BrightEye 16 Front Panel
