Gain

This control adjusts the gain of the analog video signals in the Digital-to-Analog

converter and encoder circuitry of the converter. The right arrow will increase the

gain, the left arrow will decrease it. The Gain indicator will light green when the

gain is set to its nominal or unity setting.

This is the setting which will produce correct analog output levels from an digital

or optical input source which itself is at proper level. The Gain indicator will light

red whenever the control is adjusted either higher or lower than the nominal

setting. The gain can be reset to nominal (green) by pressing both arrows simul-

taneously.

USING THE BRIGHTEYE CONTROL APPLICATION

The BrightEye PC and BrightEye Mac applications included on CD-ROM are

designed to allow you to configure and control the BrightEye 10 from a personal

computer. Installation and instructions for using this software application are

given in the PDF manual on disk.

If the BrightEye 10 is connected to a computer running this software, the

following menus are available for controlling and monitoring the unit.

Input Menu

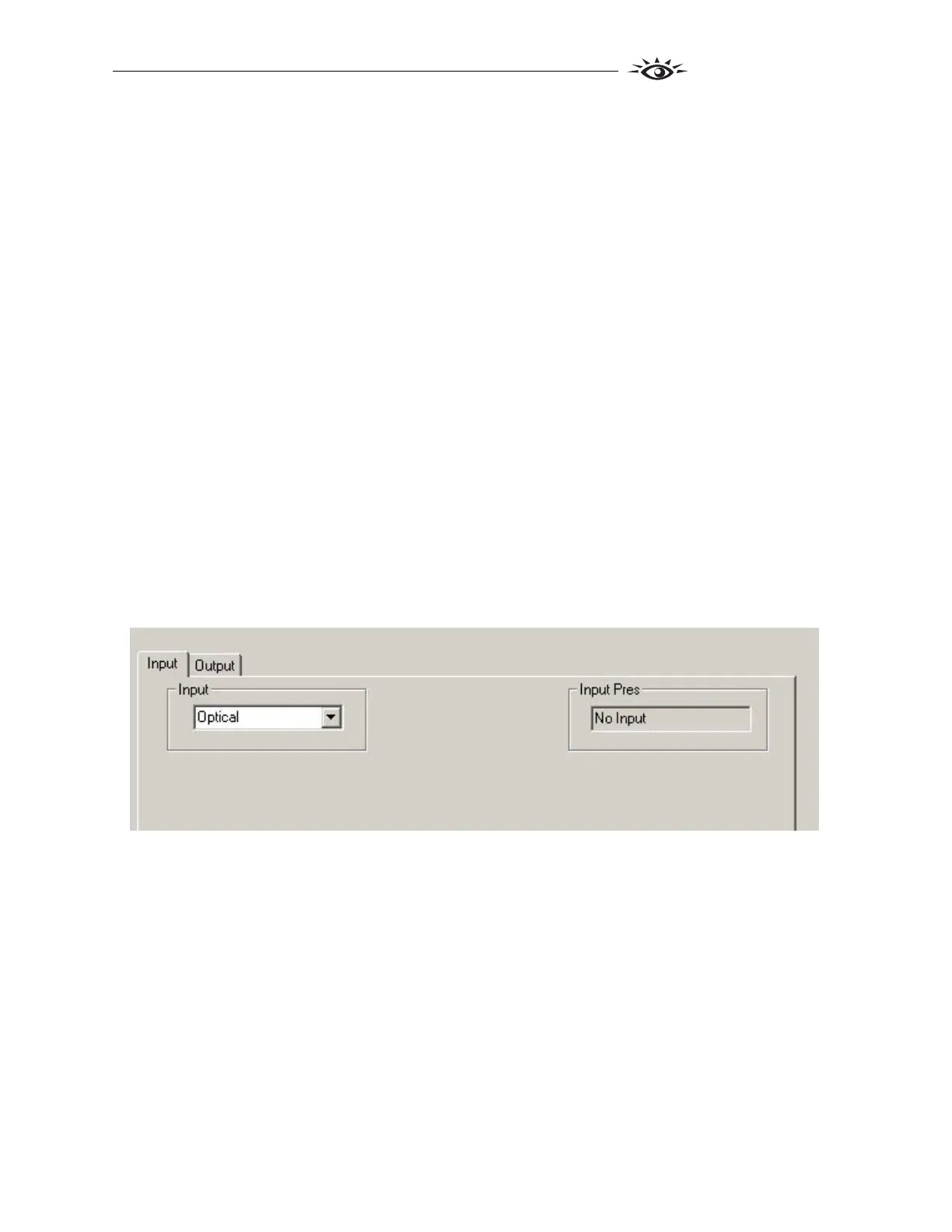

• Input – Select the type of input signal to the unit from the Input pulldown

as Optical or SDI.

The Input Pres status window will report the presence of a video input.
