15 Description

Display Corlo Touch KNX 5in • Status: 30.08.2021 • Technical changes and errors reserved.

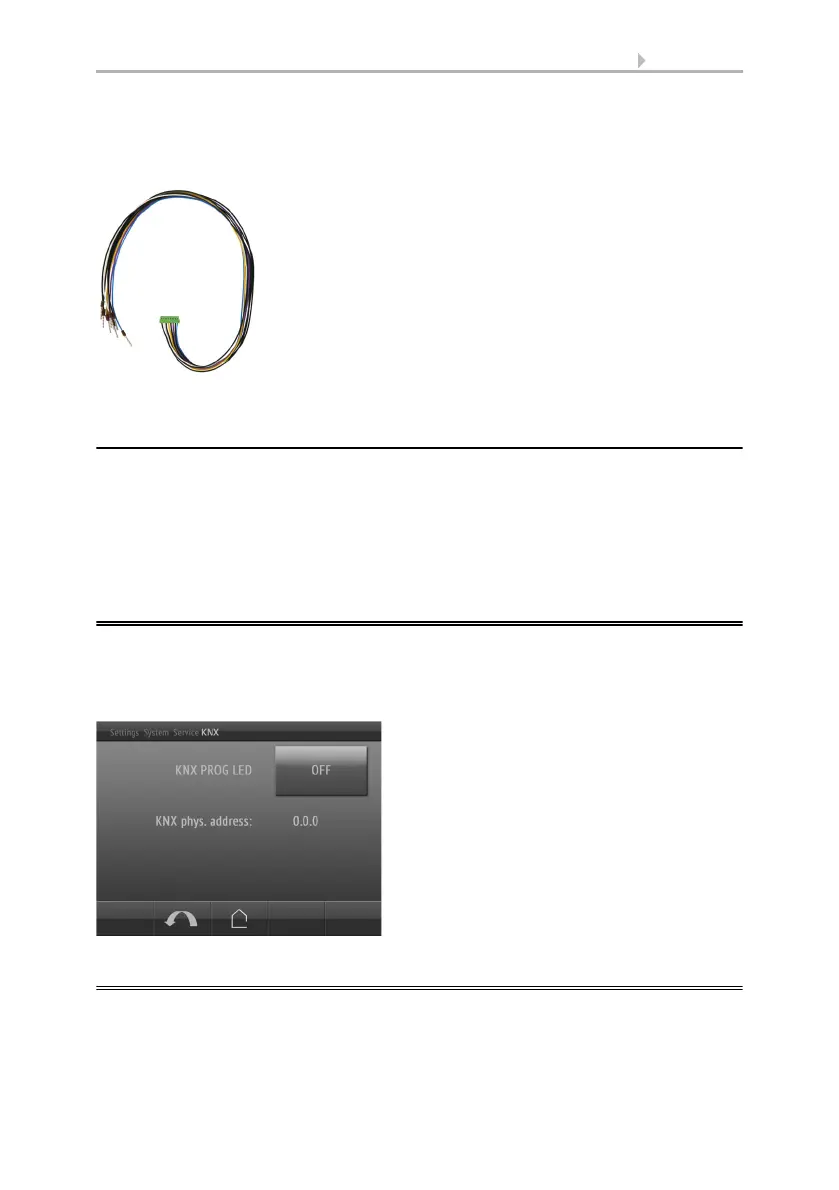

Use the attached breakout cable for connecting the digital/analog inputs (no. 8). The

cables for the inputs can be extendet to up to 10 m. All GND connections of the inputs

are bridged internally (black cable).

1.2.2. Instructions for assembly and operational

start-up

Never expose the sensor to water (e.g. rain) or dust. This can damage the electronics.

You must not exceed a relative air humidity of 95%. Avoid condensation.

After the operating voltage has been applied, the device will enter an initialisation pha-

se lasting a few seconds. During this phase no information can be received or sent via

the bus.

1.3. Addressing the device

The programming mode for addressing at the bus is activated via the programming

button at the back of the housing or via the display.

 Settings > System > Service > KNX

1.4. Setting up the WLAN connection

Only for the Corlo Touch KNX 5in WL model with an interface for wireless network

connection!

Abb. 9

Breakout cable for analog/digital inputs:

Input 1: black/white

Input 2: black/yellow

Input 3: black/lilac

Input 4: black/blue

KNX programmming LED ON:

Programming mode active.

KNX programming LED OFF:

Programming mode off.

The current address is displayed (Address

15.15.250 when delivered).
