14 Description

Display Corlo Touch KNX 5in • Status: 30.08.2021 • Technical changes and errors reserved.

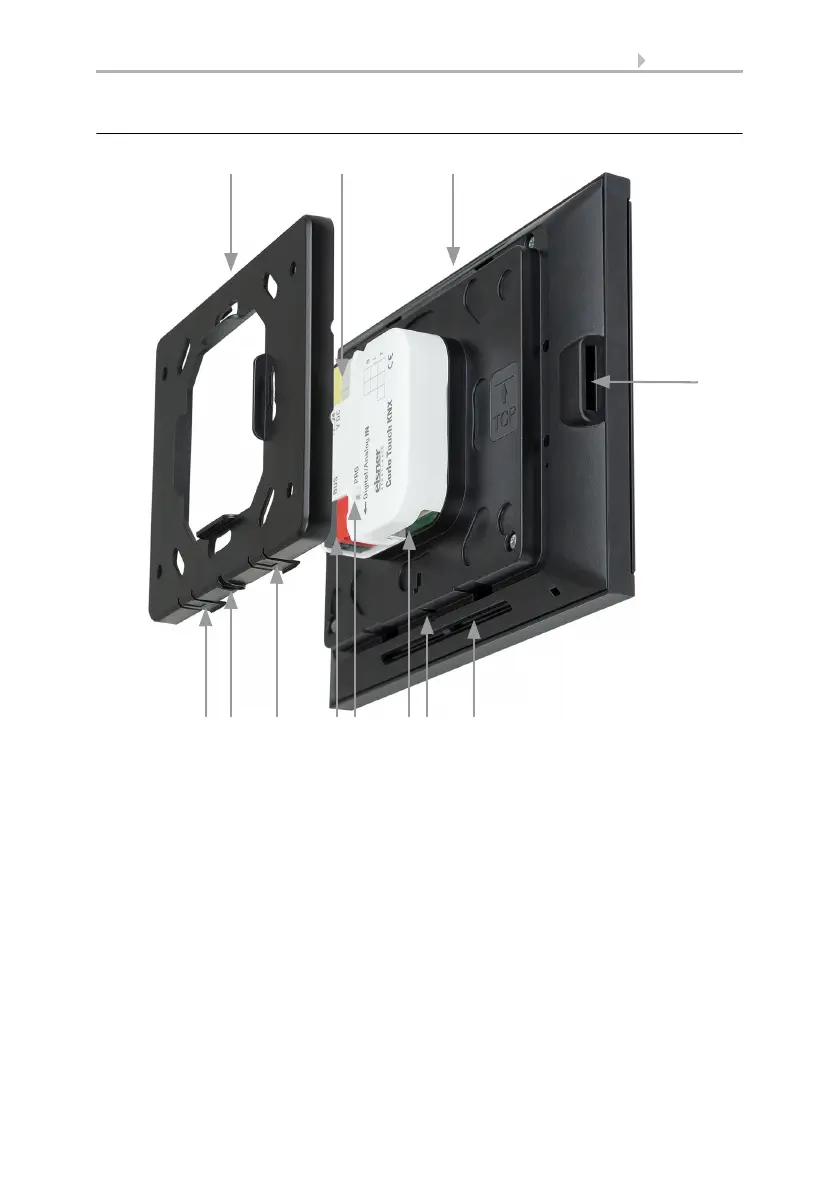

Connection overview

Connect the bus voltage (no. 6, red/black terminals) and auxiliary voltage (no. 2, yel-

low/white terminals).

Abb. 8

1 Monting unit

2 Terminal auxiliary supply 24 V DC

±10%, terminal configuration inde-

pendent from polarity

3 Display unit

4 Notches for snaplock

5 Aperture für Screw (fixing)

6 KNX terminal bus +/-

7 Programming button for addressing

the device at the bus (recessed)

8 Analog/digital inputs socket

9 Ventilation slots

10 Micro SD socket (card contacts must

show in the direction of the display

when inserting it)

4a

2

13

5a 4b 6 7 8 5b 9

10
