14. SEND FX TRACK PARAMETERS

63

RVEL

Repeat velocity sets the velocity curve fade-out and fade-in of the retrig. 1 corresponds to a complete

fade out during the set length, 0,5 fades out to half the velocity during the set length, 0 equals a flat

velocity curve with no fade, 0.5 fades into half velocity during the set length, and 1 fades in completely to

full velocity during the set length. Please note that the eects of the VFAD setting are also dependent on

the VEL setting on TRIG PAGE 1.

COND

(Trig Condition) when you add a conditional lock, COND sets the Trig Condition with which a set of con-

ditional rules can be applied to any trig, using a conditional parameter lock. For more information, please

see “10.10.2 TRIG CONDITIONS AND CONDITIONAL LOCKS” on page 41.

14.3 SRC, FLTR, AMP PAGES

These parameter pages are empty.

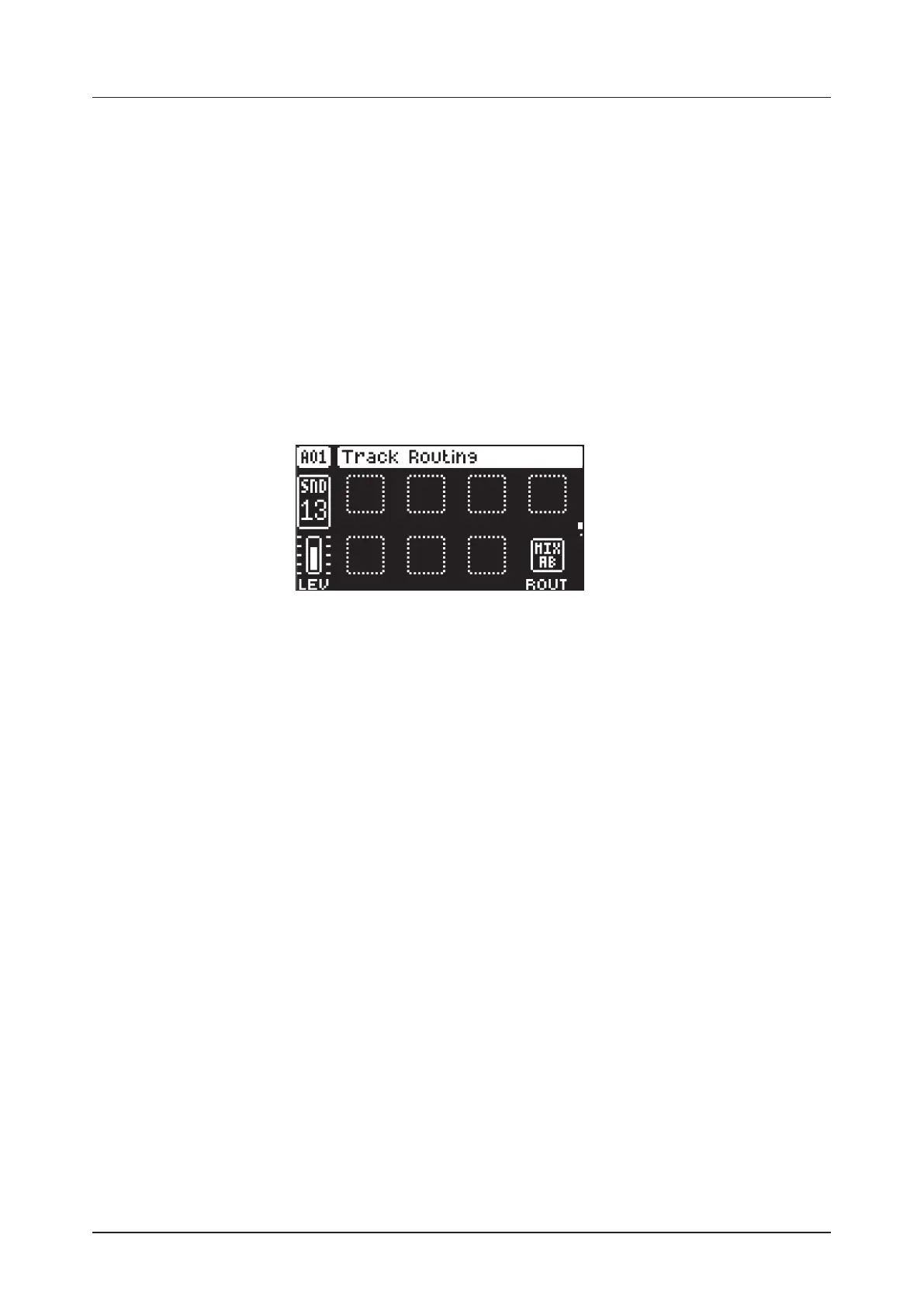

14.4 FX PAGE 1 (TRACK ROUTING)

The FX parameter page 1 contains parameters that sets the routing of the track and the amount .

ROUT

Routing selects where to route the audio from the selected track’s Bus. This parameter mirrors the

setting in the ROUTING menu. The routing switches for this parameter are indicated by the letter “C” in

the sound architecture illustrations. For more information, please see “4. TONVERK SOUND ARCHITEC-

TURE” on page 17, and “4.4 THE ROUTING MENU” on page 17.

• MIX AB is the default setting and routes the audio to the MIXER and then through the Main FX to the

A/B outputs and the Headphones.

• OUT CD routes the audio directly to the C/D outputs.

• OUT EF routes the audio directly to the E/F (HEADPHONES) outputs.

14.5 FX PAGE 2 (SEND FX)

The parameters on the FX page 2 control the track’s selected send FX machine. The FX machines selected

on tracks 13–15 are the ones you send sound to from the Audio and Bus tracks using the SND1–3 parame-

ters. Press [FUNC] + [FX] to select the FX machine. The parameters vary depending on the selected insert

FX machine. For more information, please see “A.3 FX MACHINES” on page 85.

14.6 MOD PAGE 1 (LFO 1)

The Low-Frequency Oscillator 1 is used to modulate the track’s parameters. Customize the LFO behavior,

orientation, speed, and depth on this page. This page controls the behavior of LFO 1. The parameters on

this page are the same as on the Audio track’s MOD PAGE 1. For more information, please see “12.12 MOD

PAGE 1 (VOICE LFO 1)” on page 55.

14.7 MOD PAGE 2 (LFO 2)

The Low-Frequency Oscillator 2 is used to modulate the track’s parameters. Customize the LFO behavior,

orientation, speed, and depth on this page. This page controls the behavior of LFO 2. The parameters on

this page are the same as on the Audio track’s MOD PAGE 1. For more information, please see “12.12 MOD

PAGE 1 (VOICE LFO 1)” on page 55.
