9. PATTERNS, PRESETS, INSTRUMENTS AND SAMPLES

34

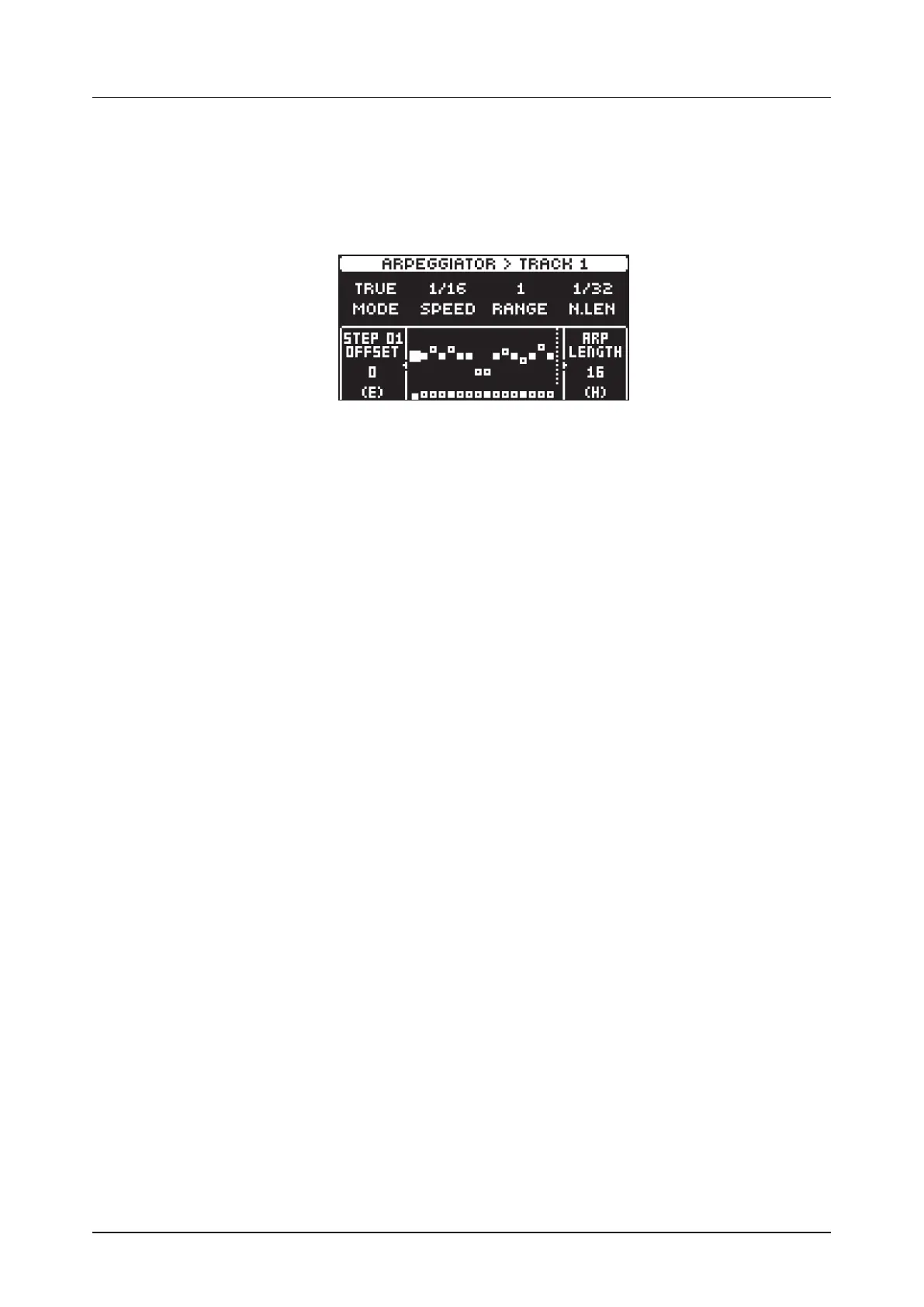

9.4 ARPEGGIATOR MENU

The ARPEGGIATOR menu contains the settings for the preset’s arpeggiator. These settings are part of the

preset and are saved together with it. Press [ARP] to open the ARPEGGIATOR menu. Press [TRIG 1–16] to

select the track whose arpeggiator you want to edit. Press [FUNC] + [ARP] to toggle the ARPEGGIATOR

on and o. The [ARP] key will be illuminated cyan when the arpeggiator is active for the selected track,

while not in the ARPEGGIATOR menu. Press [ARP] or [NO] to exit the ARPEGGIATOR menu.

9.4.1 MODE

Activates the arpeggiator and controls how the arpeggiated notes are sorted.

OFF deactivates the arpeggiator.

TRUE plays the notes in the same order as they are inserted.

UP plays the notes in ascending order, from the lowest note to the highest, on a per octave basis.

DOWN plays the notes in descending order, from the highest note to the lowest, on a per octave basis.

CYCLE plays the notes first in ascending order, then in descending order.

9.4.2 SPEED

Speed sets the speed of the arpeggiator. It is synchronized to the BPM of the project.

9.4.3 RANGE

Range sets the octave range of the arpeggiator. After each completed arpeggiator cycle, the arpeggiat-

ed notes are transposed one octave up. When the notes have reached the octave oset specified by the

RANGE setting the notes are reset to their initial values. From there, the octave transpose is started all

over again.

9.4.4 N.LEN

Note Length controls the length of the arpeggiated notes.

9.4.5 OFFSET

Oset selects the oset (note) value of the chosen arpeggiator step in semitones. The oset is from the

original note trig.

1. Press [LEFT] or [RIGHT] to select which arpeggiator step to oset.

2. Use DATA ENTRY knob E to set the oset.

3. Press [DOWN] to mute an arpeggiator step. Press [UP] to activate an arpeggiator step that has

been deactivated.

9.4.6 ARP LENGTH

Turn DATA ENTRY knob H to select the length of the arpeggio. The max length is 16 sequencer steps.
