Installation manual

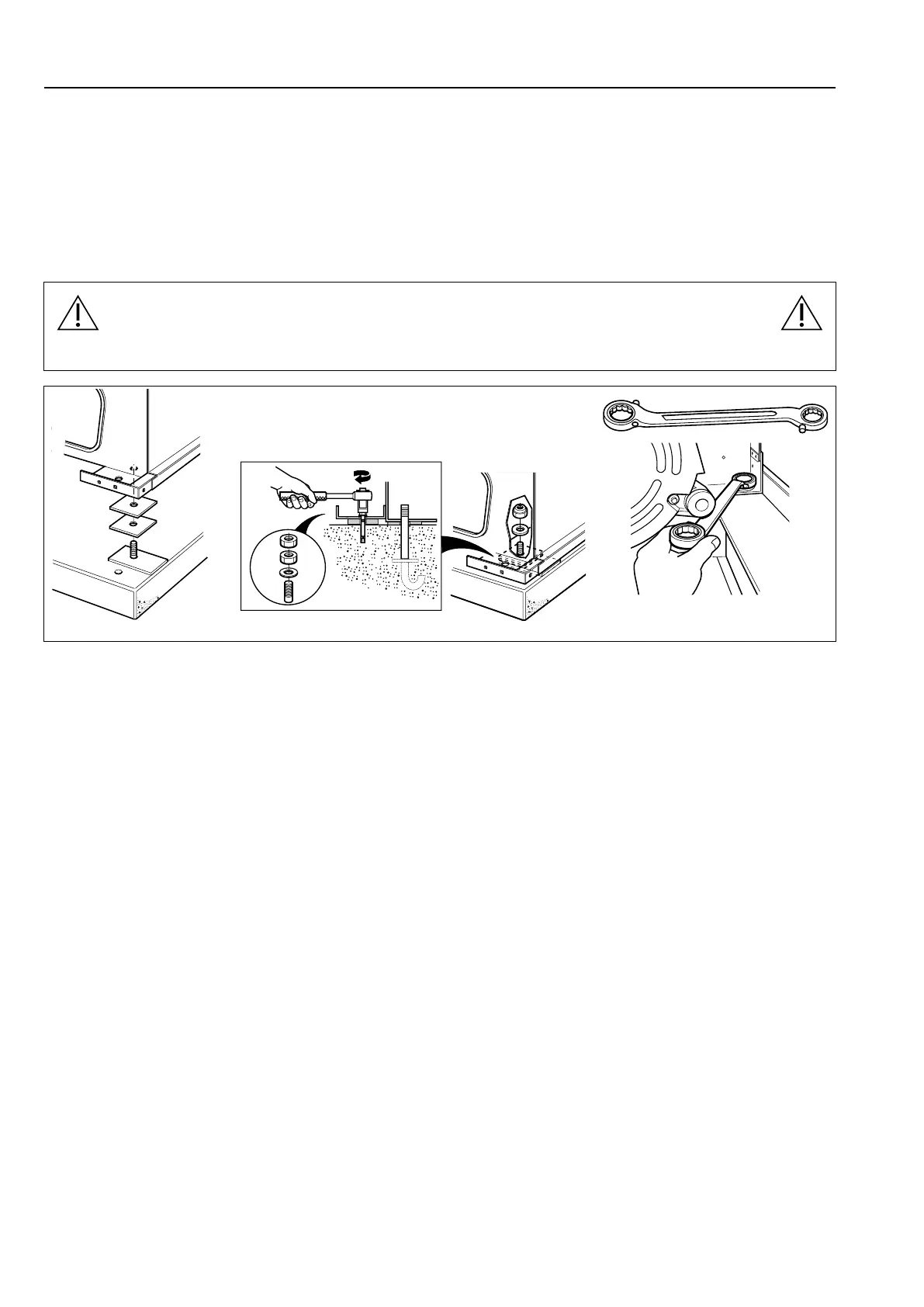

After the machine has been placed over the other four M16 bolts, at the expansion M10 bolts (1), place the two
square spacers (t = 4 mm / 3/16 inch) over the two holes. They shall be placed between the machine and foundation.
Insert the expansion bolts (1) into the holes drilled in the floor.
Level the machine by using stainless or galvanized steel square spacer between the machine and the floor.
The spacers must be of a size to cover the support surface.
Fit the heavy duty washer and self-locking nuts with the machine and tighten all nuts well.
To tighten the nuts it is recommended to use a ratchet wrench, especially in the right rear corner. Then final tighten
torque as recommended spec is M16 (5/8 inch) = 150 Nm / 110.6 lb-ft, M10 / 3/8 inch) = 40 Nm / 29.5 lb-ft.
It is of the upmost importance that the machine is placed in level, from side to side as well as front to rear.
fig.5463B
After the machine has been in use for a while, check and re-tighten the nuts if necessary.
All nuts shall be checked and re-tighten every year.
Note!
Failure to closely follow the instructions provided in this manual may result in severe damage to the ma-
chine, and the risk of personal injury. The manufacturer is not responsible for damage or injury resulting
from improper installation.
Note!
The use of chemical anchors and/or the use of a fabricated steel mounting base DOES NOT reduce the thick-
ness requirement for the underlying concrete floor. The floor MUST BE AT LEAST 200 MM / 7 7/8 INCH THICK,
or a new concrete foundation MUST be poured.
