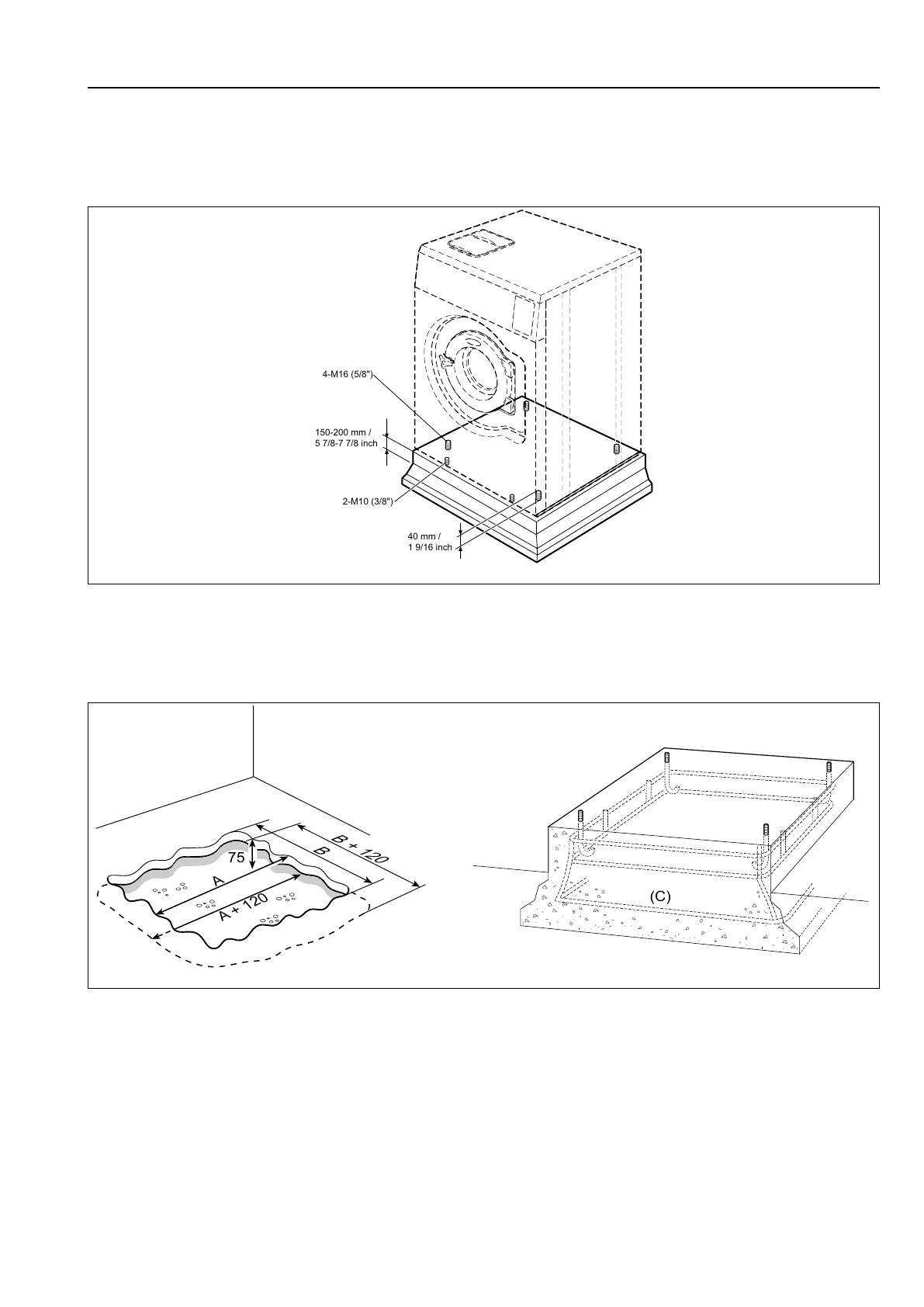

4.4.1 Casting a plinth
A plinth should be used where the existing floor is less than 200 mm / 7 7/8 inch thick or in order to ensure that the
machine is above the level of any water leakages.
The plinth should be approximately 150 - 200 mm / 5 7/8 — 7 7/8 inch in height.
150-200 mm /
5 7/8-7 7/8 inch
40 mm /
1 9/16 inch
4-M16 (5/8")
2-M10 (3/8")
fig.5462A
Proceed as follows:
• Break up the existing floor to a depth of approx. 75 mm / 2 15/16 inch and check that the sides of the hole are ta-
pered outward so that the longest side at the bottom measures 120 mm / 4 3/4 inch more than at the top. (See A
and B from previous table).
A + 120
A
75
B
B + 120
(C)
fig.0899B
• Make the mould for the plinth.
• 4 bolts must be set into the concrete of the machine base. The bolts need to project 40 mm / 1 9/16 inch out of the
base. Pour the concrete into the prepared base mould and make sure that the surface is level. Check the previous
table for the correct position of the bolts.
• Moisten the hole well and apply concrete to the sides and bottom. Required minimum concrete strength at least
20.7 MPa / 3000 psi. Recommend the rebars (C) shall be used around the base. The rebars shall be placed be-
tween the bolts and the edge of the foundation. The bolts shall have the fish plate at the bottom or equivalent
(blended at the bottom).
• The concrete must be set and strength at least 20.7 MPa / 3000 psi before mounting the machine on the plinth.
